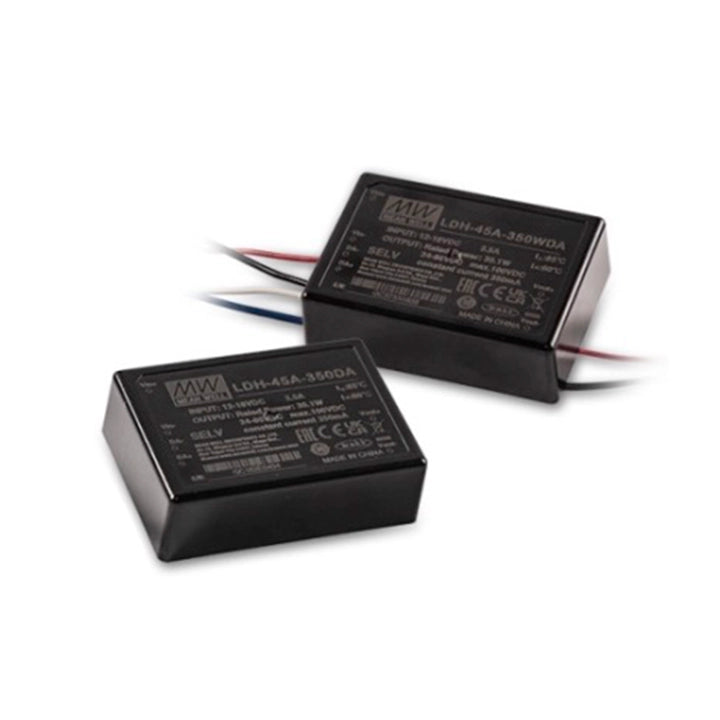

MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45A-350

Description

Rated output current: 350mA Output voltage range: 12 ~ 86VDC No load output voltage (maximum):100V Output power rating: 30.1W Input rated voltage range: 9 ~ 18VDC PIN pin type, PWM and analog voltage (Analog) dimming; Size (mm):75X53X22.7

Product Features

1. DC-DC boost converter.

2. Wide input and output voltage range.

3, the highest efficiency can reach 96%.

4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor.

5. Two-in-one dimming function (0~10V,PWM signal).

6. Class III safe voltage application.

7. Protection type: short circuit/overvoltage.

8, 3 years warranty.

MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45A-350

Product form

Rated output current: 350mA Output voltage range: 12 ~ 86VDC No load output voltage (maximum):100V Output power rating: 30.1W Input... Read more

$23.14 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Rated output current: 350mA Output voltage range: 12 ~ 86VDC No load output voltage (maximum):100V Output power rating: 30.1W Input rated voltage range: 9 ~ 18VDC PIN pin type, PWM and analog voltage (Analog) dimming; Size (mm):75X53X22.7

    Product Features

    1. DC-DC boost converter.

    2. Wide input and output voltage range.

    3, the highest efficiency can reach 96%.

    4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor.

    5. Two-in-one dimming function (0~10V,PWM signal).

    6. Class III safe voltage application.

    7. Protection type: short circuit/overvoltage.

    8, 3 years warranty.
