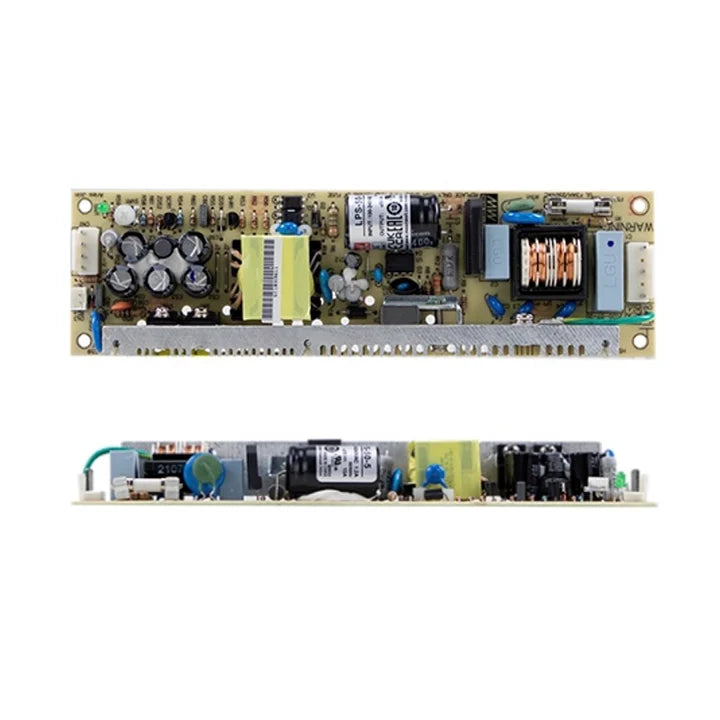

MEAN WELL LPS-50-5 is an open-frame single-output AC/DC power supply rated 5 V, 10 A and 50 W. Built-in remote ON/OFF control and a power-on LED support equipment integration. Natural-convection operation is subject to the model-specific temperature and load limits.
Product Datasheet
Download MEAN WELL LPS-50 Datasheet (PDF)
The LPS-50 section is on PDF pages 1, 2. Refer to the complete mechanical drawings and notes when planning installation.
Model-Specific DC Output
| Nominal output |
5 V DC. |
| Rated continuous output |
10 A / 50 W, subject to the cooling and temperature limits. |
| Catalogue 10-second peak-load limit |
60 W. |
| Specified current range |
0–12 A; continuous loading remains limited by the rated current and power. |
| Ripple and noise, maximum |
50 mVp-p. |
| Output-voltage adjustment |
4.5–5.5 V using SVR1. |
| Voltage tolerance |
±3.0%. |
| Line / load regulation |
±1.0% / ±3.0%. |
| Efficiency, typical |
81%. |
Peak loading is limited to 10 seconds and a maximum 33.3% duty cycle within every 30 seconds. Average output power must not exceed the rated power; apply the model-specific current, power and thermal limits together.
Unless stated otherwise, specifications are measured at 230 VAC, rated load and 25°C. Ripple/noise uses 20 MHz bandwidth and a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation.
Input and Operating Features
| Input range |
90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. |
| Input current, typical |
1.2 A at 115 VAC; 0.8 A at 230 VAC. |
| Cold-start inrush, typical |
18 A at 115 VAC; 35 A at 230 VAC. |
| Leakage current |
Less than 1 mA at 240 VAC. |
| Set-up / rise time |
500 / 40 ms at both 230 VAC and 115 VAC, full load. |
| Hold-up time, typical |
70 ms at 230 VAC; 12 ms at 115 VAC, full load. |
| Switching-frequency reference |
60 kHz in the block diagram. |
| Power indication |
Built-in power-on LED. |
| Production test |
100% full-load burn-in test. |
Protection
| Short circuit / overload |
122–160% of rated output power; hiccup mode with automatic recovery after the fault is removed. |
| Overvoltage |
5.75–6.75 V; hiccup mode with automatic recovery after the fault is removed. |
Remote ON/OFF Control
| Control function |
Built-in remote ON/OFF control via CN3. |
| ON / OFF level |
RC+ relative to RC−: 0–0.8 V turns the output on; 4–10 V turns it off. |
| CN3 pin assignment |
Pin 1 RC+; pin 2 RC−. |
| Connector and mating references |
JST B2B-XH or equivalent; JST XHP housing family with JST SXH-001T-P0.6 contacts or equivalents. |
Select the mating housing for the two-circuit connector and the appropriate wire size. The listed mating references do not establish inclusion of a separate control cable or loose mating parts.
Cooling, Derating and Environment
| Operating temperature |
-20–70°C; allowable load follows the horizontal-installation curve. |
| Cooling |
Free-air convection. Keep the ventilation path clear and apply the curve for the actual installation. |
| Natural-convection curve |
Full load from −20°C through 50°C, then decreasing to 60% at 60°C. |
| 18 CFM forced-air curve |
Full load from −20°C through 60°C, then decreasing to 80% at 70°C. This extension requires the specified external airflow. |
| Static-characteristic chart |
The separate 15 V chart plots output voltage and ripple against input voltage at 60 Hz; it is not an additional load-rating curve for every model. |
| Working humidity |
20–90% RH, non-condensing. |
| Storage |
Temperature -20–85°C; humidity 10–95% RH. |
| Temperature coefficient |
±0.04%/°C over 0–50°C. |
| Vibration |
10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. |
| High-altitude temperature adjustment |
Above 2000 m, reduce allowable ambient temperature by 3.5°C per 1000 m for fanless operation or 5°C per 1000 m for fan-cooled operation. |
Apply the input-voltage and temperature limits together; a wide operating-temperature range does not mean full power at every temperature.
Dimensions, Grounding and Connections
| Dimensions, L × W × H |
195 × 55 × 23 mm; drawing tolerance ±1 mm. |
| Mounting layout |
Four Ø3.8 mm holes; indicated mounting-centre spacing 185 × 45 mm. The drawing shows up to 3 mm projection below the board. |
| On-board AC fuse marking |
F3.15A / 250 VAC. |
| Safety grounding |
Grounding is required; CN1 pin 5 is safety ground (FG). |
| AC input CN1 |
JST B5P-VH or equivalent: pin 1 AC/L; pins 2 and 4 no pin; pin 3 AC/N; pin 5 FG. |
| DC output CN2 |
JST B4P-VH or equivalent: pins 1–2 −V; pins 3–4 +V. |
| Input / output mating references |
JST VHR housing family and JST SVH-21T-P1.1 contacts, or equivalents. |
Choose complete mating housings by circuit count and wire size. Mating housings, contacts and any external fan should be specified separately; the connector reference table does not state that loose mating parts are supplied. Follow the manufacturer installation instructions and maintain the required safety clearances.
Safety, EMC and Isolation
| Listed safety approvals |
UL62368-1, TUV BS EN/EN62368-1 and EAC TP TC004. |
| Withstand voltage |
Input–output 3 kVAC; input–FG 2 kVAC; output–FG 0.5 kVAC. |
| Insulation resistance |
Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. |
| Emissions |
BS EN/EN55032 (CISPR32) Class B; BS EN/EN61000-3-2 and -3; EAC TP TC020. |
| Immunity |
BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035 and BS EN/EN61000-6-2 (EN50082-2), heavy-industry level, criteria A; EAC TP TC020. |
The power supply is a component for installation in final equipment. EMC testing uses a 360 × 360 mm metal plate, 1 mm thick. Confirm that the completed installation satisfies the applicable EMC and safety requirements.
Weight, Reliability and Catalogue
| Single-unit reference weight |
240 g (0.24 kg), explicitly listed per unit under PACKING; not the carton weight. |
| Carton packing |
48 pieces / 12.5 kg / 0.87 CUFT. |
| MTBF, minimum estimates |
3138.2 thousand hours under Telcordia SR-332 (Bellcore); 491.4 thousand hours under MIL-HDBK-217F at 25°C. |
| Warranty |
2-year manufacturer warranty, subject to applicable terms. |
| Catalogue revision |
LPS-50-SPEC, 2024-10-30; combined PDF pages 1–2. |
