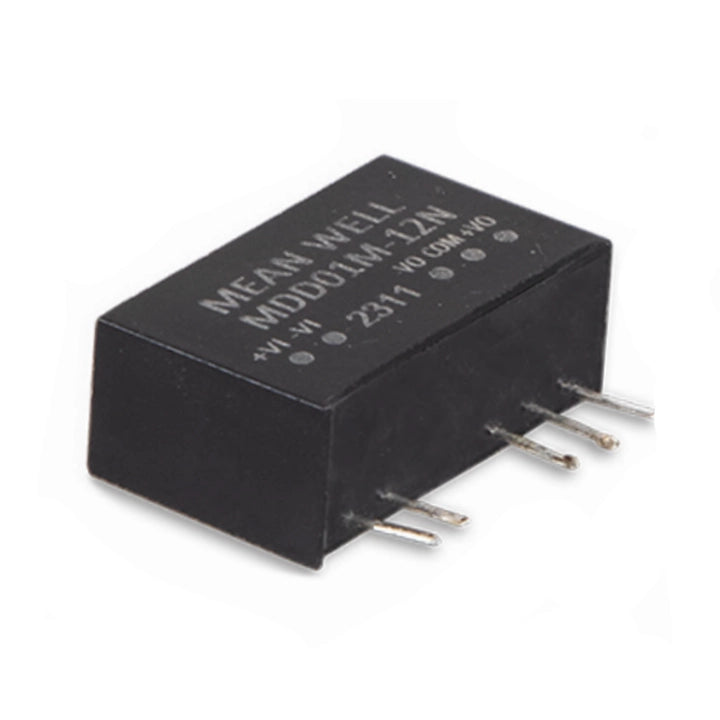

MEAN WELL MDD01-N series: DC-DC medical grade unregulated converter - MDD01M-12N

Description

Series: Double group output Rated power: 1W Input voltage (range):Normal 12V(10.8~13.2V) Input current no-load: 18mA, full load: 104mA Output voltage: ± 12V Output current: ± 5 ~ 42mA Efficiency (TYP.):80% Capacitive load: * 100μF Size (mm):19.7X7.1X11.5

Click to download Airtac product catalog

Product Features

1. The SIP7 package has international standard pins, and the operating temperature range is -40 ~ +95 ℃.

2. In line with IEC/UL62368-1 and LVD IEC60601-1, through the IEC60601-1 medical safety certification (1xMOPP/2xMOPP).

3. Low leakage current <2μA, protection mode: short circuit (continuous),6KVDC high I/O isolation (strengthened insulation), low cost, 3 years warranty.

MEAN WELL MDD01-N series: DC-DC medical grade unregulated converter - MDD01M-12N

Product form

Series: Double group output Rated power: 1W Input voltage (range):Normal 12V(10.8~13.2V) Input current no-load: 18mA, full load: 104mA Output voltage:... Read more

$10.71 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Series: Double group output Rated power: 1W Input voltage (range):Normal 12V(10.8~13.2V) Input current no-load: 18mA, full load: 104mA Output voltage: ± 12V Output current: ± 5 ~ 42mA Efficiency (TYP.):80% Capacitive load: * 100μF Size (mm):19.7X7.1X11.5

    Click to download Airtac product catalog

    Product Features

    1. The SIP7 package has international standard pins, and the operating temperature range is -40 ~ +95 ℃.

    2. In line with IEC/UL62368-1 and LVD IEC60601-1, through the IEC60601-1 medical safety certification (1xMOPP/2xMOPP).

    3. Low leakage current <2μA, protection mode: short circuit (continuous),6KVDC high I/O isolation (strengthened insulation), low cost, 3 years warranty.
