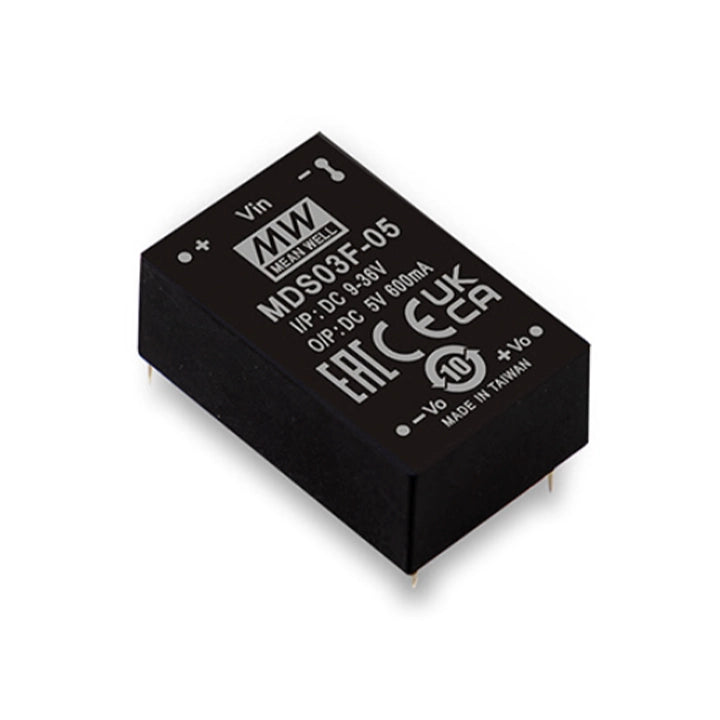

MEAN WELL MDS03 Series: DC-DC Medical Grade Regulated Voltage Converter - MDS03F-05

Description

Series: Single group output Rated power: 3W Input voltage (range):Normal 12V,24V(9~36V) Input current no-load: 20mA, full load: 320mA Output voltage: 5V Output current: 0 ~ 600mA Efficiency (TYP.):80% Capacitive load (max):330μF Size (mm):31.8X20.3X12.2

Click to download Airtac product catalog

Product Features

1. DIP 24 package has international standard pins, wide input range of 4:1, low leakage current <5μA, and operating temperature range of -40 ~ +90 ℃.

2. Comply with IEC60601-1 medical safety certification (2xMOPP), protection mode: short circuit (continuous)/overload/UVLO.

3, 6KVDC or 4.2KVAC high input/output isolation (enhanced isolation),3 years warranty.

MEAN WELL MDS03 Series: DC-DC Medical Grade Regulated Voltage Converter - MDS03F-05

Product form

Series: Single group output Rated power: 3W Input voltage (range):Normal 12V,24V(9~36V) Input current no-load: 20mA, full load: 320mA Output voltage:... Read more

$32.14 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Series: Single group output Rated power: 3W Input voltage (range):Normal 12V,24V(9~36V) Input current no-load: 20mA, full load: 320mA Output voltage: 5V Output current: 0 ~ 600mA Efficiency (TYP.):80% Capacitive load (max):330μF Size (mm):31.8X20.3X12.2

    Click to download Airtac product catalog

    Product Features

    1. DIP 24 package has international standard pins, wide input range of 4:1, low leakage current <5μA, and operating temperature range of -40 ~ +90 ℃.

    2. Comply with IEC60601-1 medical safety certification (2xMOPP), protection mode: short circuit (continuous)/overload/UVLO.

    3, 6KVDC or 4.2KVAC high input/output isolation (enhanced isolation),3 years warranty.
