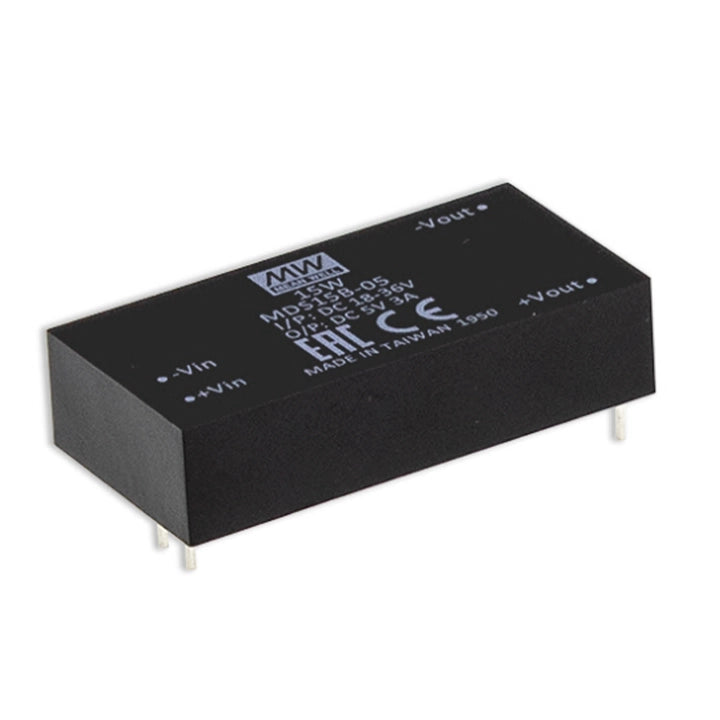

MEAN WELL MDS15 Series: DC-DC Medical Grade Converter - MDS15B-05

Description

Rated power: 15W Input voltage (range):Normal 24V(18~36V) Input current no-load: 7mA, full load: 750mA Output voltage: 5V Output current: 3000mA Efficiency (TYP.):87% Capacitive load: 5600μF Size (mm):50.8X25.4X12

Click to download Airtac product catalog

Product Features

1. DIP 2 "X1" package has international standard pins, 2:1 wide input range, low leakage current <5μA, and operating temperature range of -40 ~ +90 ℃.

2, through the IEC60601-1 medical safety certification (2xMOPP), no minimum load requirements, protection mode: short circuit (continuous)/overload/input voltage.

3. 4000VAC high input/output isolation (enhanced isolation),3 years warranty.

MEAN WELL MDS15 Series: DC-DC Medical Grade Converter - MDS15B-05

Product form

Rated power: 15W Input voltage (range):Normal 24V(18~36V) Input current no-load: 7mA, full load: 750mA Output voltage: 5V Output current: 3000mA... Read more

$75.43 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Rated power: 15W Input voltage (range):Normal 24V(18~36V) Input current no-load: 7mA, full load: 750mA Output voltage: 5V Output current: 3000mA Efficiency (TYP.):87% Capacitive load: 5600μF Size (mm):50.8X25.4X12

    Click to download Airtac product catalog

    Product Features

    1. DIP 2 "X1" package has international standard pins, 2:1 wide input range, low leakage current <5μA, and operating temperature range of -40 ~ +90 ℃.

    2, through the IEC60601-1 medical safety certification (2xMOPP), no minimum load requirements, protection mode: short circuit (continuous)/overload/input voltage.

    3. 4000VAC high input/output isolation (enhanced isolation),3 years warranty.
