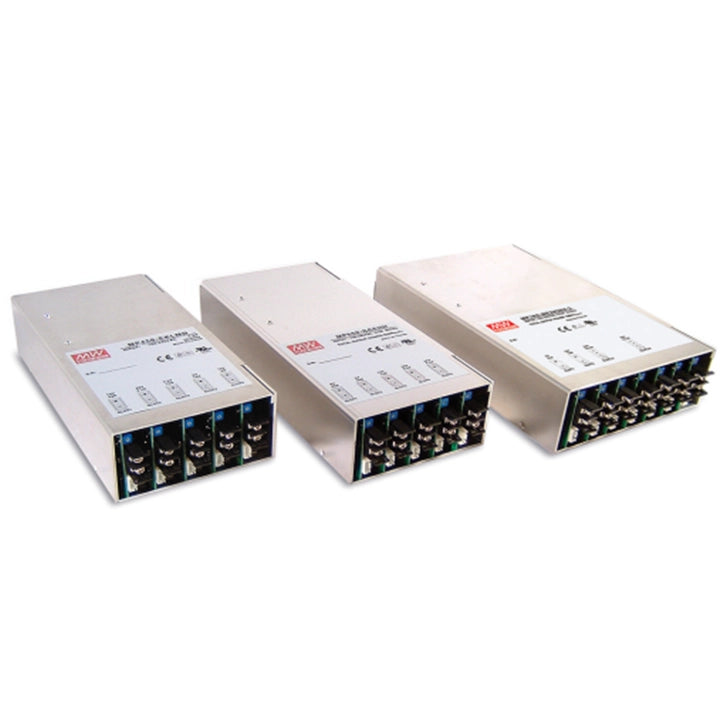

Description
Input voltage range: 85 ~ 264VAC or 120 ~ 370VDC Output frequency range: 47~63Hz Input AC current: 9A/115VAC,4.5A/230VAC Input inrush current: 30A/115VAC,50A/230VAC Total output power: 650W (maximum) Size:(mm):278X127X63.5
Click to download Airtac product catalog
Product Features
1. International universal full range input: 85 ~ 264VAC.
2, countless kinds of output configuration optional, built-in active PFC, in line with the EN61000-3-2.
3. Single output module built-in constant current limit current.
Each single output module has a remote control function, and each single output module has a remote sensing function (MS-75 ~ 360).
5. Protection type: short circuit/overload/overvoltage (all output modules).
6. Parallel connection function (MS-210/300/360) and margin control function (MS-210/360).
7. Built-in temperature-controlled fan cooling with fan alarm function.
8. Equipped with 12V/0.1A auxiliary power supply for remote control, 3 years warranty.
