Description

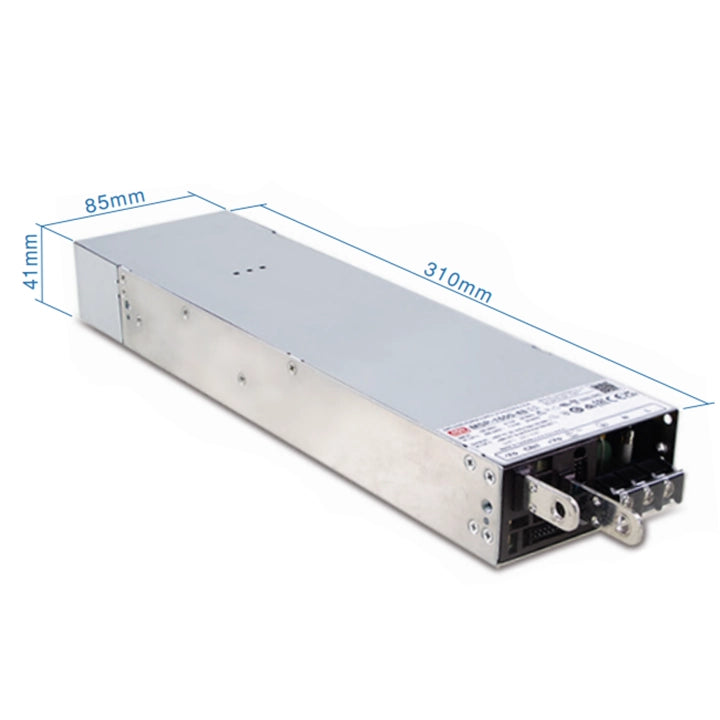

Rated power: 1608W Input voltage: 85 ~ 264VAC,250 ~ 400VDC Output voltage: 24V Output current: 0 ~ 67A Voltage adjustment range: 23.5~28V Size (mm):310X85X41
Click to download Airtac product catalog
Product Features
1.85 ~ 264Vac input, with PFC, global multi-domain safety certification (medical 60601-1, household appliance 60335-1, industrial 61558-1/-2-16/61010-1, energy converter 62477-1).
2. The efficiency is as high as 92%, the output voltage is 15~115% programmable, the CANBus communication interface is built in, and the working temperature is -40 ~ +85 ℃ in a wide range.
3. Extremely low leakage current <500 μA, in line with 2xMOPP standard, suitable for BF medical applications, with protection functions: short circuit/overload/overvoltage/over temperature.
4. Built-in remote control switch control, remote sensing detection, DC OK signal, over-temperature warning signal, 12V auxiliary power supply, over-voltage category III (OVC III).
5. The operating height can reach 5000 meters above sea level, with built-in intelligent fan speed control, low noise <39dB, key PCB moisture-proof treatment and 5-year warranty.
