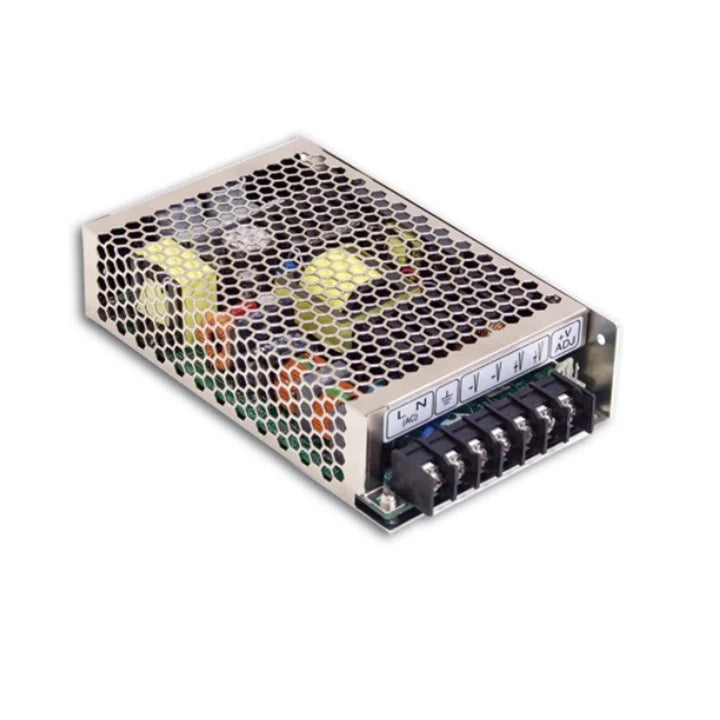

MEAN WELL MSP-600 series: single output medical type switching power supply - MSP-600-7.5

Description

Rated power: 600W Input voltage: 85 ~ 264VAC,120 ~ 370VDC Output voltage: 7.5V Output current: 0 ~ 80A Size (mm):218X105X63.5

Product Features

1. International universal full range input: 85 ~ 264VAC.

2, through the medical safety certification (2xMOOP).

3. Built-in active PFC, can withstand 300VAC surge input for 5 seconds.

4. Protection type: short circuit/overload/overvoltage/overtemperature.

5. Built-in constant current limiting circuit, built-in remote sensing function and remote control switch (except MSP-100).

6. With current sharing function, up to 4 units can be connected in parallel (MSP-600-24/36/48,MSP-1000).

7. No-load power consumption <0.5W ~ 0.8W,5G@0.3A standby output (except MSP-100).

8. DC OK signal (except MSP-100/200),5-year warranty.

MEAN WELL MSP-600 series: single output medical type switching power supply - MSP-600-7.5

Product form

Rated power: 600W Input voltage: 85 ~ 264VAC,120 ~ 370VDC Output voltage: 7.5V Output current: 0 ~ 80A Size (mm):218X105X63.5... Read more

$378.43 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Rated power: 600W Input voltage: 85 ~ 264VAC,120 ~ 370VDC Output voltage: 7.5V Output current: 0 ~ 80A Size (mm):218X105X63.5

    Product Features

    1. International universal full range input: 85 ~ 264VAC.

    2, through the medical safety certification (2xMOOP).

    3. Built-in active PFC, can withstand 300VAC surge input for 5 seconds.

    4. Protection type: short circuit/overload/overvoltage/overtemperature.

    5. Built-in constant current limiting circuit, built-in remote sensing function and remote control switch (except MSP-100).

    6. With current sharing function, up to 4 units can be connected in parallel (MSP-600-24/36/48,MSP-1000).

    7. No-load power consumption <0.5W ~ 0.8W,5G@0.3A standby output (except MSP-100).

    8. DC OK signal (except MSP-100/200),5-year warranty.
