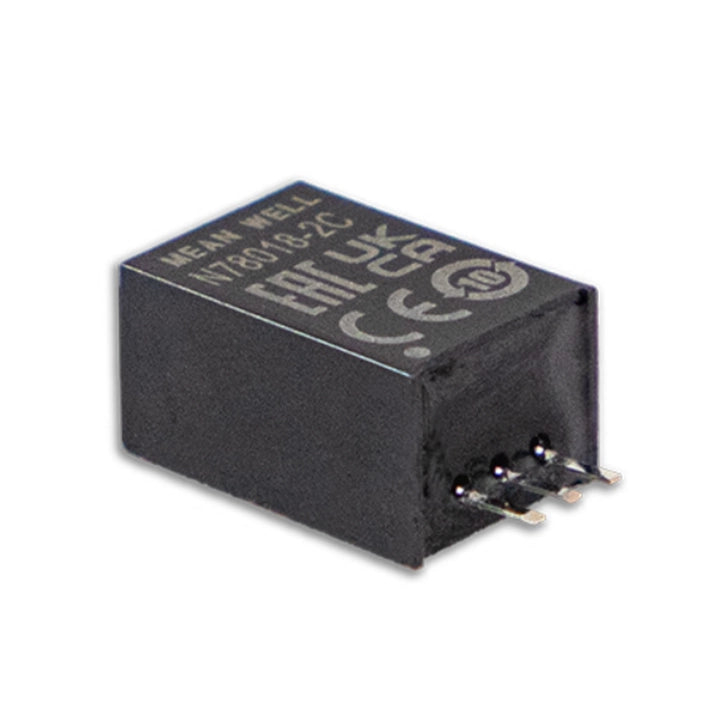

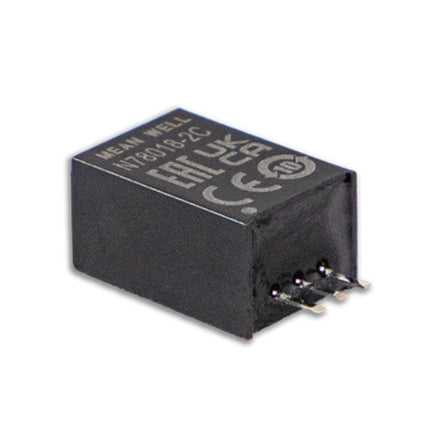

MEAN WELL N78-2 Series: Non-Isolated DC-DC Switching Regulators - N78025-2C

Description

Non-isolated Rated power: 3.6W ~ 30W Input voltage range: 12V,24V(4.5~32V) Input current no-load: 1mA, full load: 1248mA Output voltage: 2.5V Output current: 0 ~ 2000mA Efficiency Vin min.:88% Capacitive load: 2000μF Vertical installation Size (mm):11.5X9X17.5

Click to download Airtac product catalog

Product Features

1. Small size, Pin-out compatible with LM78xx/LM79xx linear regulator, efficiency up to 96%, no heat sink required.

2. Wide input range up to 32V, support negative output, operating temperature range -40 ~ +85 ℃, conforming to BS EN/EN55032 radiation class B, no additional components required.

3. Protection type: short circuit/overload/over temperature, low ripple and noise, 3 years warranty.

MEAN WELL N78-2 Series: Non-Isolated DC-DC Switching Regulators - N78025-2C

Product form

Non-isolated Rated power: 3.6W ~ 30W Input voltage range: 12V,24V(4.5~32V) Input current no-load: 1mA, full load: 1248mA Output voltage: 2.5V... Read more

$21.43 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Non-isolated Rated power: 3.6W ~ 30W Input voltage range: 12V,24V(4.5~32V) Input current no-load: 1mA, full load: 1248mA Output voltage: 2.5V Output current: 0 ~ 2000mA Efficiency Vin min.:88% Capacitive load: 2000μF Vertical installation Size (mm):11.5X9X17.5

    Click to download Airtac product catalog

    Product Features

    1. Small size, Pin-out compatible with LM78xx/LM79xx linear regulator, efficiency up to 96%, no heat sink required.

    2. Wide input range up to 32V, support negative output, operating temperature range -40 ~ +85 ℃, conforming to BS EN/EN55032 radiation class B, no additional components required.

    3. Protection type: short circuit/overload/over temperature, low ripple and noise, 3 years warranty.
