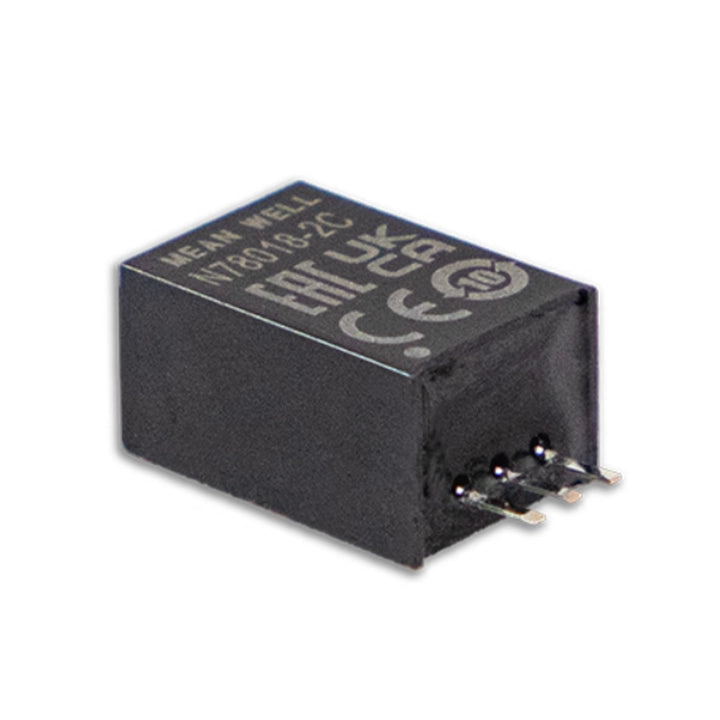

MEAN WELL N78-2 Series: Non-Isolated DC-DC Switching Regulators - N78065-2C

Description

Non-isolated Rated power: 3.6W ~ 30W Input voltage range: 12V,24V(8~29V) Input current no-load: 1mA, full load: 956mA Output voltage:-6.5V Output current: 0 ~-1000mA Efficiency Vin min.:85% Capacitive load::680μF Vertical installation Size (mm):11.5X9X17.5

Click to download Airtac product catalog

Product Features

1. Small size, Pin-out compatible with LM78xx/LM79xx linear regulator, efficiency up to 96%, no heat sink required.

2. Wide input range up to 32V, support negative output, operating temperature range -40 ~ +85 ℃, conforming to BS EN/EN55032 radiation class B, no additional components required.

3. Protection type: short circuit/overload/over temperature, low ripple and noise, 3 years warranty.

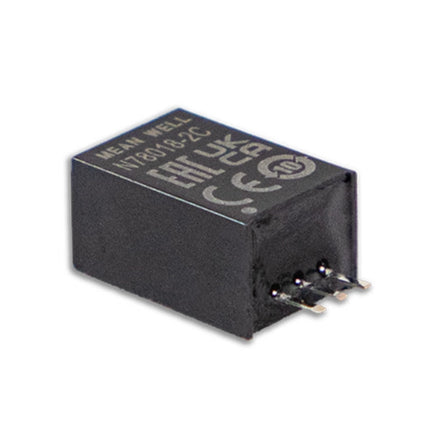

MEAN WELL N78-2 Series: Non-Isolated DC-DC Switching Regulators - N78065-2C

Product form

Non-isolated Rated power: 3.6W ~ 30W Input voltage range: 12V,24V(8~29V) Input current no-load: 1mA, full load: 956mA Output voltage:-6.5V Output... Read more

$21.43 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Non-isolated Rated power: 3.6W ~ 30W Input voltage range: 12V,24V(8~29V) Input current no-load: 1mA, full load: 956mA Output voltage:-6.5V Output current: 0 ~-1000mA Efficiency Vin min.:85% Capacitive load::680μF Vertical installation Size (mm):11.5X9X17.5

    Click to download Airtac product catalog

    Product Features

    1. Small size, Pin-out compatible with LM78xx/LM79xx linear regulator, efficiency up to 96%, no heat sink required.

    2. Wide input range up to 32V, support negative output, operating temperature range -40 ~ +85 ℃, conforming to BS EN/EN55032 radiation class B, no additional components required.

    3. Protection type: short circuit/overload/over temperature, low ripple and noise, 3 years warranty.
