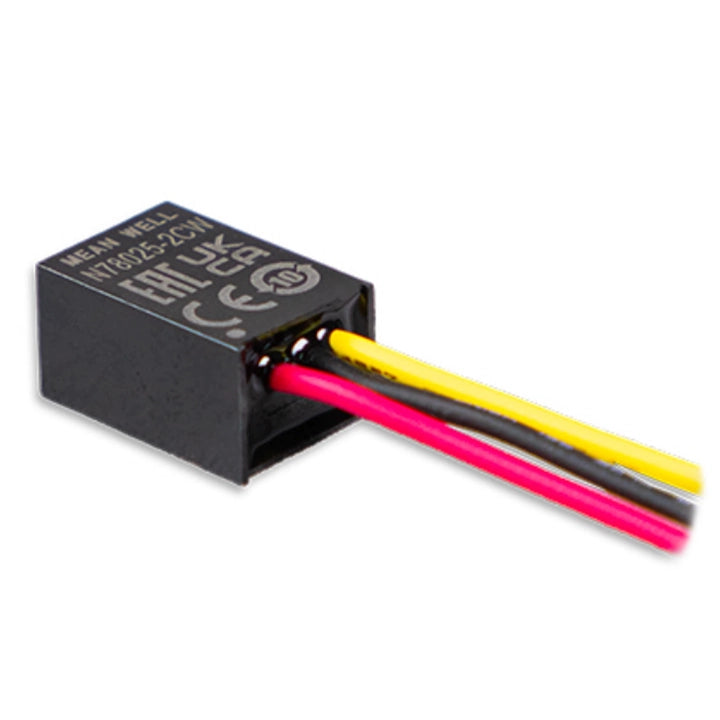

MEAN WELL N78-2 Series: Non-Isolated DC-DC Switching Regulators - N7812-2CW

Description

Non-isolated Rated power: 3.6W ~ 30W Input voltage range: 12V(8~23V) Input current no-load: 1mA, full load: 1035mA Output voltage:-12V Output current: 0 ~-600mA Efficiency Vin min.:87% Capacitive load: 220μF Enclosure type with wire Size (mm):11.5X9X17.5

Click to download Airtac product catalog

Product Features

1. Small size, Pin-out compatible with LM78xx/LM79xx linear regulator, efficiency up to 96%, no heat sink required.

2. Wide input range up to 32V, support negative output, operating temperature range -40 ~ +85 ℃, conforming to BS EN/EN55032 radiation class B, no additional components required.

3. Protection type: short circuit/overload/over temperature, low ripple and noise, 3 years warranty.

MEAN WELL N78-2 Series: Non-Isolated DC-DC Switching Regulators - N7812-2CW

Product form

Non-isolated Rated power: 3.6W ~ 30W Input voltage range: 12V(8~23V) Input current no-load: 1mA, full load: 1035mA Output voltage:-12V Output... Read more

$23.57 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Non-isolated Rated power: 3.6W ~ 30W Input voltage range: 12V(8~23V) Input current no-load: 1mA, full load: 1035mA Output voltage:-12V Output current: 0 ~-600mA Efficiency Vin min.:87% Capacitive load: 220μF Enclosure type with wire Size (mm):11.5X9X17.5

    Click to download Airtac product catalog

    Product Features

    1. Small size, Pin-out compatible with LM78xx/LM79xx linear regulator, efficiency up to 96%, no heat sink required.

    2. Wide input range up to 32V, support negative output, operating temperature range -40 ~ +85 ℃, conforming to BS EN/EN55032 radiation class B, no additional components required.

    3. Protection type: short circuit/overload/over temperature, low ripple and noise, 3 years warranty.
