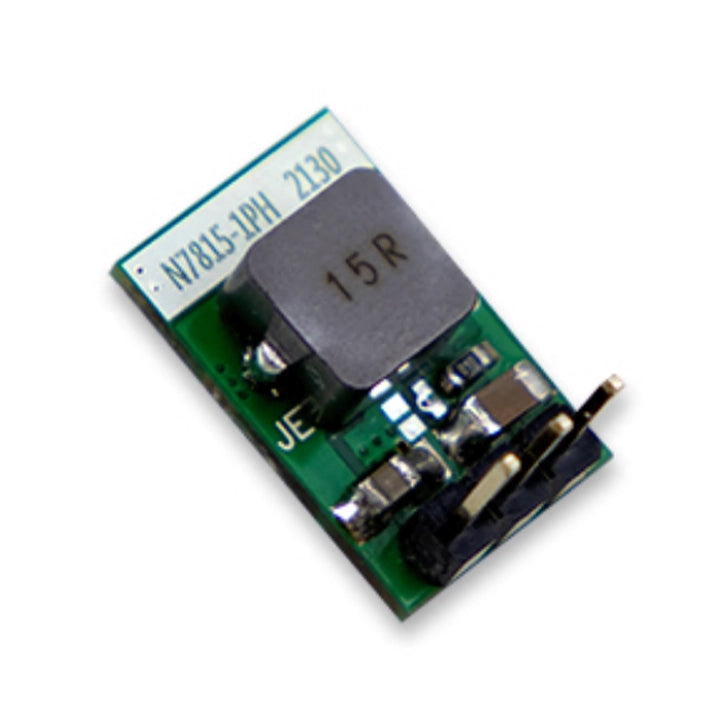

MEAN WELL N78 Series: Non-Isolated DC-DC Switching Regulator - N7815-1PH

Description

Non-isolated Rated power: 3.3W ~ 15W Input voltage range: 12V(8~18V) Input current no-load: 24mA, full load: 635mA Output voltage:-15V Output current: 0 ~ 300mA Efficiency (TYP.):88% Capacitive load (max):150μF PCB type horizontal installation Size (mm):10.5X7.5X16

Click to download Airtac product catalog

Product Features

1. Small size, Pin-out compatible with LM78xx/LM79xx linear regulator, efficiency up to 96%, no heat sink required.

2, wide input range up to 36V, support negative output, operating temperature range -40 ~ +85 ℃, in line with BS EN/EN55032 radiation class B, no additional components.

3. Protection type: short circuit/overload/over temperature, low ripple and noise, 3 years warranty.

MEAN WELL N78 Series: Non-Isolated DC-DC Switching Regulator - N7815-1PH

Product form

Non-isolated Rated power: 3.3W ~ 15W Input voltage range: 12V(8~18V) Input current no-load: 24mA, full load: 635mA Output voltage:-15V Output... Read more

$10.71 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Non-isolated Rated power: 3.3W ~ 15W Input voltage range: 12V(8~18V) Input current no-load: 24mA, full load: 635mA Output voltage:-15V Output current: 0 ~ 300mA Efficiency (TYP.):88% Capacitive load (max):150μF PCB type horizontal installation Size (mm):10.5X7.5X16

    Click to download Airtac product catalog

    Product Features

    1. Small size, Pin-out compatible with LM78xx/LM79xx linear regulator, efficiency up to 96%, no heat sink required.

    2, wide input range up to 36V, support negative output, operating temperature range -40 ~ +85 ℃, in line with BS EN/EN55032 radiation class B, no additional components.

    3. Protection type: short circuit/overload/over temperature, low ripple and noise, 3 years warranty.
