MEAN WELL NID100-4.2 series: Non-isolated regulated DC/DC converter - NID100-4.2H

Description

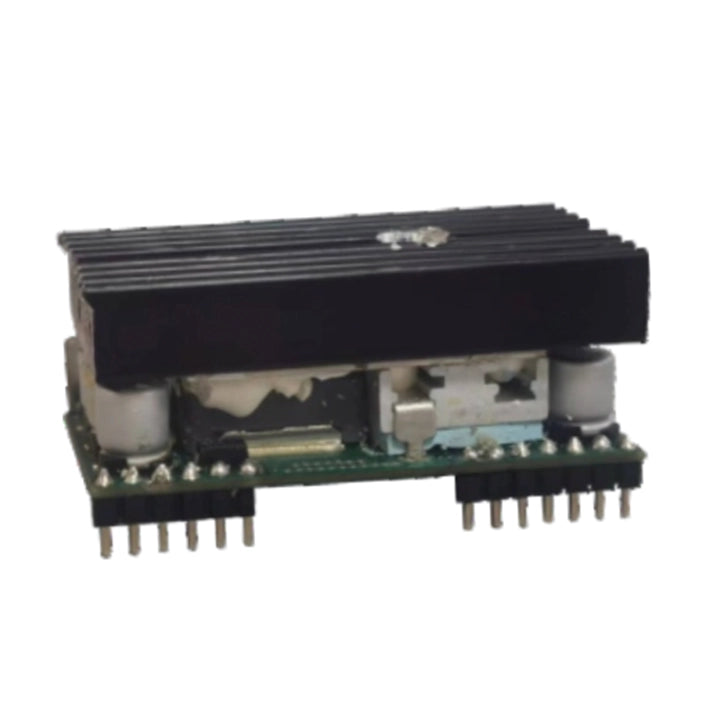

NID100-4.2H — Non-isolated regulated DC/DC converter

MEAN WELL NID100-4.2H is an economical open-frame, non-isolated regulated DC/DC converter in a SIP package. It provides 4.2 V DC with 15 A output and a rated power of 63 W from a 10.5–48 V DC input. Remote ON/OFF control, optional output trimming and free-air convection cooling support integration into equipment. Apply the model-specific input-voltage and ambient-temperature derating limits. This H version includes an extra heatsink.

Download MEAN WELL NID100-4.2 Datasheet (PDF)

NID100-4.2 specifications, connection diagrams and dimensions: PDF pages 10–12.

Electrical specifications

DC output voltage 4.2 V DC
Rated output current 15 A
Rated output power 63 W; subject to the input-voltage and temperature derating curves
Input voltage range 10.5–48 V DC
Normal input voltage 24 V DC (or 48 V DC)
Efficiency (typical) 91% at 24 V DC input; 90% at 48 V DC input
Input current at full load 2500 mA at 48 V DC input
No-load input current 50 mA
Switching frequency 200 kHz typical
Voltage tolerance ±2.0%
Line regulation ±0.5%, measured from low line to high line at rated load
Load regulation ±0.5%, measured from 10% to 100% rated load
Ripple and noise 100 mVp-p maximum; measured at 20 MHz using a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors
External capacitance load 100 µF / 16 V, low ESR, maximum
General test conditions Normal input voltage, rated load, +25°C and 70% RH ambient, except where a specific condition is stated

Control, protection and alternative connection

Remote ON/OFF Voltage is measured from R.C. to COM. ON: 1.2 V DC < R.C.–COM < 12 V DC, or an open circuit. OFF: R.C.–COM < 0.4 V DC, or a short circuit. The pin table assigns R.C. to pin 13 and COM to pins 5, 6, 7 and 8.
Remote-control pin-reference difference The remote-control sentence on PDF page 10 refers to pins 5, 6 and 11, while the 13-pin configuration table on page 12 assigns COM to pins 5–8, pin 11 to N.C., and pin 13 to R.C. Confirm the supplied unit and the applicable pin diagram with MEAN WELL before wiring; do not treat pin 11 as R.C. solely from that parenthetical sentence.
Optional output trim Pin 12 is Trim (optional). Confirm the supplied trim configuration and allowable adjustment range before use; the series pages do not specify a trim range or external adjustment-resistor value.
Overload protection 120–300% of rated output power, typical; hiccup mode with automatic recovery after the fault condition is removed
Short-circuit protection All outputs have short-circuit protection; hiccup mode with automatic recovery after the fault condition is removed
Overvoltage protection 6.4–7.5 V; shuts off the output voltage and clamps it with a TVS diode
Input fuse recommendation 8 A fuse, as recommended in the input specification
Negative-output connection reference The negative-output diagram connects the external positive supply to module +Vin pins 9 and 10; external −Vin and the application GND connect to module +Vout pins 1–4; the negative output −Vo is taken from COM pins 5, 6, 7 and 8. The input capacitor is positive toward external +Vin; the output capacitor is positive toward application GND. PDF page 11 notes an input-voltage difference without specifying a separate negative-output input range. The external supply reference in this connection differs from module COM. Confirm the complete negative-output application limits and control references with MEAN WELL; the diagram does not provide a separate negative-output current or power rating.

Environment and load derating

Operating temperature and cooling −30 to +85°C, subject to the derating curves; cooling by free-air convection
Input-dependent load derating Vertical installation, free-air convection. For 10.5 ≤ Vin ≤ 30 V DC, the curve permits 100% load through +50°C, about 75% at +65°C, 60% at +75°C and 40% at +85°C. For 30 < Vin ≤ 48 V DC, the corresponding limits are 90% through +50°C, about 65% at +65°C, 50% at +75°C and 30% at +85°C. Follow the applicable input-voltage curve between these points; +85°C is the working-temperature limit.
Working humidity 20–85% RH, non-condensing
Storage temperature −30 to +105°C
Temperature coefficient ±0.03%/°C over 0 to +50°C
Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of the X, Y and Z axes

Mechanical details and packing

Dimensions 50.8 × 27.5 × 19 mm (L × W × H), or 2.0 × 1.082 × 0.748 inches, in the specification table. The mechanical drawing marks the 19 mm profile as maximum.
Mechanical drawing details Front-view references: 50.8 mm overall length, 10.2 mm and 25.4 mm dimension spans, 2.54 mm local pin pitch, 0.64 mm pin width and 1.3 mm edge offset. The side view shows a 3.0 mm horizontal lead extension. The additional side-view body span is 15 mm (0.59 inch).
Pin assignment Pins 1–4: +Vout; pins 5, 6, 7 and 8: COM; pins 9 and 10: +Vin; pin 11: N.C.; pin 12: Trim (optional); pin 13: R.C. Use the orientation shown in the mechanical drawing.
Package and cooling option Open-frame SIP package; this H model is specified with an extra heatsink
Unit weight 40 g, catalog per-unit weight/packing reference; not an independently measured net weight
Bulk packing reference 280 pieces / 11 kg / 0.94 CUFT; bulk packing information does not define the quantity supplied in this listing

Safety, EMC and reliability

Safety standards EAC TP TC 004 approved; BS EN/EN 62368-1 (LVD) is listed in the safety specification
Conducted and radiated emissions BS EN/EN 55032 Class A without additional EMC components; Class B with the specified external EMC filter components
EMC suggestion circuit components C1 and C2: 120 µF / 63 V each; C3: 22 µF / 35 V. The L1 table on PDF page 12 literally prints 15 µF (NiZn), although L1 is drawn as a coupled inductor. Obtain the correct inductance/unit and applicable component specification from MEAN WELL before implementing the Class B filter; do not use the printed capacitance unit as an inductor specification.
EMC suggestion circuit connections L1 has coupled windings in both input conductors. C1 is across the input before L1, and C2 is across the module input after L1, with their positive terminals toward +Vin. C3 is across +Vo and −Vo, positive toward +Vo. Module GND, the filtered input return and output −Vo share the common node in this positive-output EMC example.
Radiated immunity BS EN/EN 61000-4-3: Level 2, 3 V/m, performance criterion A
EFT/burst immunity BS EN/EN 61000-4-4: Level 2, 1 kV, performance criterion A
Surge immunity BS EN/EN 61000-4-5: Level 2, 1 kV line-to-line, performance criterion A
Conducted immunity BS EN/EN 61000-4-6: Level 2, 3 V, performance criterion A
MTBF 17290.5 K hours minimum, Telcordia SR-332 (Bellcore); 1000.6 K hours minimum, MIL-HDBK-217F at +25°C
Manufacturer warranty 3 years

MEAN WELL NID100-4.2 series: Non-isolated regulated DC/DC converter - NID100-4.2H

Product form

NID100-4.2H — Non-isolated regulated DC/DC converter MEAN WELL NID100-4.2H is an economical open-frame, non-isolated regulated DC/DC converter in a SIP... Read more

$33.02 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    NID100-4.2H — Non-isolated regulated DC/DC converter

    MEAN WELL NID100-4.2H is an economical open-frame, non-isolated regulated DC/DC converter in a SIP package. It provides 4.2 V DC with 15 A output and a rated power of 63 W from a 10.5–48 V DC input. Remote ON/OFF control, optional output trimming and free-air convection cooling support integration into equipment. Apply the model-specific input-voltage and ambient-temperature derating limits. This H version includes an extra heatsink.

    Download MEAN WELL NID100-4.2 Datasheet (PDF)

    NID100-4.2 specifications, connection diagrams and dimensions: PDF pages 10–12.

    Electrical specifications

    DC output voltage 4.2 V DC
    Rated output current 15 A
    Rated output power 63 W; subject to the input-voltage and temperature derating curves
    Input voltage range 10.5–48 V DC
    Normal input voltage 24 V DC (or 48 V DC)
    Efficiency (typical) 91% at 24 V DC input; 90% at 48 V DC input
    Input current at full load 2500 mA at 48 V DC input
    No-load input current 50 mA
    Switching frequency 200 kHz typical
    Voltage tolerance ±2.0%
    Line regulation ±0.5%, measured from low line to high line at rated load
    Load regulation ±0.5%, measured from 10% to 100% rated load
    Ripple and noise 100 mVp-p maximum; measured at 20 MHz using a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors
    External capacitance load 100 µF / 16 V, low ESR, maximum
    General test conditions Normal input voltage, rated load, +25°C and 70% RH ambient, except where a specific condition is stated

    Control, protection and alternative connection

    Remote ON/OFF Voltage is measured from R.C. to COM. ON: 1.2 V DC < R.C.–COM < 12 V DC, or an open circuit. OFF: R.C.–COM < 0.4 V DC, or a short circuit. The pin table assigns R.C. to pin 13 and COM to pins 5, 6, 7 and 8.
    Remote-control pin-reference difference The remote-control sentence on PDF page 10 refers to pins 5, 6 and 11, while the 13-pin configuration table on page 12 assigns COM to pins 5–8, pin 11 to N.C., and pin 13 to R.C. Confirm the supplied unit and the applicable pin diagram with MEAN WELL before wiring; do not treat pin 11 as R.C. solely from that parenthetical sentence.
    Optional output trim Pin 12 is Trim (optional). Confirm the supplied trim configuration and allowable adjustment range before use; the series pages do not specify a trim range or external adjustment-resistor value.
    Overload protection 120–300% of rated output power, typical; hiccup mode with automatic recovery after the fault condition is removed
    Short-circuit protection All outputs have short-circuit protection; hiccup mode with automatic recovery after the fault condition is removed
    Overvoltage protection 6.4–7.5 V; shuts off the output voltage and clamps it with a TVS diode
    Input fuse recommendation 8 A fuse, as recommended in the input specification
    Negative-output connection reference The negative-output diagram connects the external positive supply to module +Vin pins 9 and 10; external −Vin and the application GND connect to module +Vout pins 1–4; the negative output −Vo is taken from COM pins 5, 6, 7 and 8. The input capacitor is positive toward external +Vin; the output capacitor is positive toward application GND. PDF page 11 notes an input-voltage difference without specifying a separate negative-output input range. The external supply reference in this connection differs from module COM. Confirm the complete negative-output application limits and control references with MEAN WELL; the diagram does not provide a separate negative-output current or power rating.

    Environment and load derating

    Operating temperature and cooling −30 to +85°C, subject to the derating curves; cooling by free-air convection
    Input-dependent load derating Vertical installation, free-air convection. For 10.5 ≤ Vin ≤ 30 V DC, the curve permits 100% load through +50°C, about 75% at +65°C, 60% at +75°C and 40% at +85°C. For 30 < Vin ≤ 48 V DC, the corresponding limits are 90% through +50°C, about 65% at +65°C, 50% at +75°C and 30% at +85°C. Follow the applicable input-voltage curve between these points; +85°C is the working-temperature limit.
    Working humidity 20–85% RH, non-condensing
    Storage temperature −30 to +105°C
    Temperature coefficient ±0.03%/°C over 0 to +50°C
    Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of the X, Y and Z axes

    Mechanical details and packing

    Dimensions 50.8 × 27.5 × 19 mm (L × W × H), or 2.0 × 1.082 × 0.748 inches, in the specification table. The mechanical drawing marks the 19 mm profile as maximum.
    Mechanical drawing details Front-view references: 50.8 mm overall length, 10.2 mm and 25.4 mm dimension spans, 2.54 mm local pin pitch, 0.64 mm pin width and 1.3 mm edge offset. The side view shows a 3.0 mm horizontal lead extension. The additional side-view body span is 15 mm (0.59 inch).
    Pin assignment Pins 1–4: +Vout; pins 5, 6, 7 and 8: COM; pins 9 and 10: +Vin; pin 11: N.C.; pin 12: Trim (optional); pin 13: R.C. Use the orientation shown in the mechanical drawing.
    Package and cooling option Open-frame SIP package; this H model is specified with an extra heatsink
    Unit weight 40 g, catalog per-unit weight/packing reference; not an independently measured net weight
    Bulk packing reference 280 pieces / 11 kg / 0.94 CUFT; bulk packing information does not define the quantity supplied in this listing

    Safety, EMC and reliability

    Safety standards EAC TP TC 004 approved; BS EN/EN 62368-1 (LVD) is listed in the safety specification
    Conducted and radiated emissions BS EN/EN 55032 Class A without additional EMC components; Class B with the specified external EMC filter components
    EMC suggestion circuit components C1 and C2: 120 µF / 63 V each; C3: 22 µF / 35 V. The L1 table on PDF page 12 literally prints 15 µF (NiZn), although L1 is drawn as a coupled inductor. Obtain the correct inductance/unit and applicable component specification from MEAN WELL before implementing the Class B filter; do not use the printed capacitance unit as an inductor specification.
    EMC suggestion circuit connections L1 has coupled windings in both input conductors. C1 is across the input before L1, and C2 is across the module input after L1, with their positive terminals toward +Vin. C3 is across +Vo and −Vo, positive toward +Vo. Module GND, the filtered input return and output −Vo share the common node in this positive-output EMC example.
    Radiated immunity BS EN/EN 61000-4-3: Level 2, 3 V/m, performance criterion A
    EFT/burst immunity BS EN/EN 61000-4-4: Level 2, 1 kV, performance criterion A
    Surge immunity BS EN/EN 61000-4-5: Level 2, 1 kV line-to-line, performance criterion A
    Conducted immunity BS EN/EN 61000-4-6: Level 2, 3 V, performance criterion A
    MTBF 17290.5 K hours minimum, Telcordia SR-332 (Bellcore); 1000.6 K hours minimum, MIL-HDBK-217F at +25°C
    Manufacturer warranty 3 years
