MEAN WELL NID100 series: Non-isolated regulated DC/DC converter - NID100-5

Description

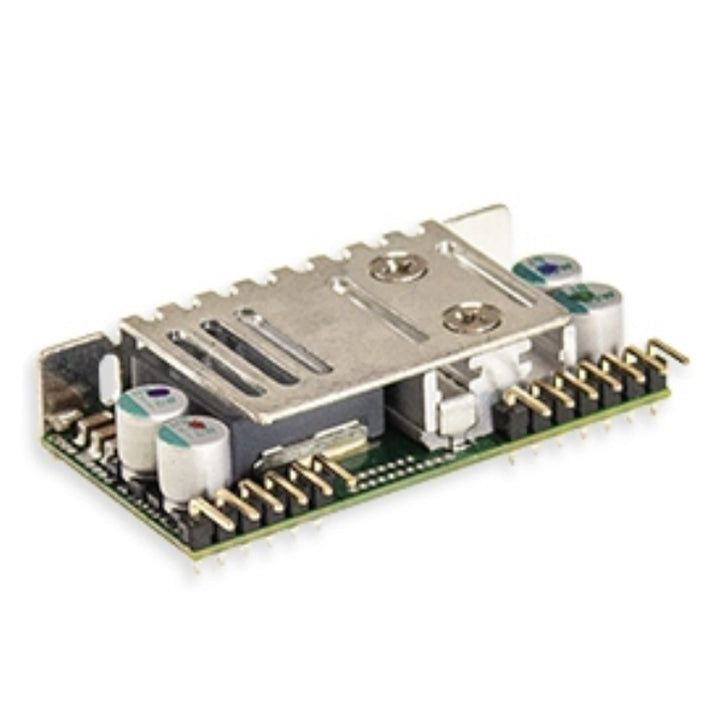

NID100-5 — Non-isolated regulated DC/DC converter

MEAN WELL NID100-5 is an economical open-frame, non-isolated regulated DC/DC converter in a SIP package. It provides 5 V DC with 11 A output and a rated power of 55 W from a 10.5–53 V DC input. Remote ON/OFF control, optional output trimming and free-air convection cooling support integration into equipment. Apply the model-specific input-voltage and ambient-temperature derating limits.

Download MEAN WELL NID100 Datasheet (PDF)

NID100 specifications, connection diagrams and dimensions: PDF pages 7–9.

Electrical specifications

DC output voltage 5 V DC
Rated output current 11 A
Rated output power 55 W; subject to the input-voltage and temperature derating curves
Input voltage range 10.5–53 V DC
Normal input voltage 24 V DC (or 48 V DC)
Efficiency (typical) 93% at 12/24 V DC input; 92% at 48 V DC input
Input current at full load 5400 mA at 12 V DC input
No-load input current 20 mA
Switching frequency 200 kHz typical
Voltage tolerance ±2.0%
Line regulation ±0.5%, measured from low line to high line at rated load
Load regulation ±0.5%, measured from 10% to 100% rated load
Ripple and noise 100 mVp-p maximum; measured at 20 MHz using a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors
External capacitance load 100 µF / 16 V, low ESR, maximum
General test conditions Normal input voltage, rated load, +25°C and 70% RH ambient, except where a specific condition is stated
Series capability reference The NID100 series features efficiency up to 97%. This series maximum is not the efficiency rating of every model or input condition; use the selected model's typical-efficiency values above.

Control, protection and alternative connection

Remote ON/OFF Voltage is measured from R.C. to COM. ON: 1.2 V DC < R.C.–COM < 12 V DC, or an open circuit. OFF: R.C.–COM < 0.4 V DC, or a short circuit. The pin table assigns R.C. to pin 13 and COM to pins 5, 6, 7 and 8.
Optional output trim Pin 12 is Trim (optional). Confirm the supplied trim configuration and allowable adjustment range before use; the series pages do not specify a trim range or external adjustment-resistor value.
Overload protection 120–300% of rated output power, typical; hiccup mode with automatic recovery after the fault condition is removed
Short-circuit protection All outputs have short-circuit protection; hiccup mode with automatic recovery after the fault condition is removed
Overvoltage protection 6.4–7.5 V; shuts off the output voltage and clamps it with a TVS diode
Input fuse recommendation 8 A fuse, as recommended in the input specification
Negative-output connection reference The negative-output diagram connects the external positive supply to module +Vin pins 9 and 10; external −Vin and the application GND connect to module +Vout pins 1–4; the negative output −Vo is taken from COM pins 5, 6, 7 and 8. The input capacitor is positive toward external +Vin; the output capacitor is positive toward application GND. PDF page 8 states that the input voltage in this connection must be below 30 V DC. The external supply reference in this connection differs from module COM. Confirm the complete negative-output application limits and control references with MEAN WELL; the diagram does not provide a separate negative-output current or power rating.

Environment and load derating

Operating temperature and cooling −30 to +85°C, subject to the derating curves; cooling by free-air convection
Input-dependent load derating Vertical installation, free-air convection. The three curves apply to 10.5 ≤ Vin ≤ 30 V DC, 30 < Vin ≤ 50 V DC, and 50 < Vin ≤ 53 V DC, respectively. The limits through +50°C are 100%, 90% and 85% load, respectively; therefore high input voltage already requires derating below +50°C. At +85°C the plotted limits are approximately 40%, 30% and 25%. Follow the applicable curve between plotted points; do not apply a full-load temperature from another input band. The working range ends at +85°C.
Working humidity 20–85% RH, non-condensing
Storage temperature −30 to +105°C
Temperature coefficient ±0.03%/°C over 0 to +50°C
Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of the X, Y and Z axes

Mechanical details and packing

Dimensions 50.8 × 27.5 × 12 mm (L × W × H), or 2.0 × 1.082 × 0.472 inches, in the specification table. The mechanical drawing marks the 12 mm profile as maximum.
Mechanical drawing details Front-view references: 50.8 mm overall length, 10.2 mm and 25.4 mm dimension spans, 2.54 mm local pin pitch, 0.64 mm pin width and 1.3 mm edge offset. The front view shows 4.5 mm lead projection; the side view shows a 4 mm horizontal pin offset. The drawing gives a general tolerance of ±1 mm (±0.04 inch). The additional side-view span is printed as 9 mm [0.315 inch]; these two units are inconsistent. Confirm that detail against the supplied unit before using it for a tight mechanical fit.
Pin assignment Pins 1–4: +Vout; pins 5, 6, 7 and 8: COM; pins 9 and 10: +Vin; pin 11: N.C.; pin 12: Trim (optional); pin 13: R.C. Use the orientation shown in the mechanical drawing.
Package and cooling option Open-frame SIP package
Unit weight 35 g, catalog per-unit weight/packing reference; not an independently measured net weight
Bulk packing reference 280 pieces / 10.8 kg / 0.94 CUFT; bulk packing information does not define the quantity supplied in this listing

Safety, EMC and reliability

Safety standards EAC TP TC 004 approved; BS EN/EN 62368-1 (LVD) is listed in the safety specification
Conducted and radiated emissions BS EN/EN 55032 Class A without additional EMC components; Class B with the specified external EMC filter components
EMC suggestion circuit components C1 and C2: 120 µF / 63 V each; C3: 22 µF / 35 V. L1: 15 µH (NiZn).
EMC suggestion circuit connections L1 has coupled windings in both input conductors. C1 is across the input before L1, and C2 is across the module input after L1, with their positive terminals toward +Vin. C3 is across +Vo and −Vo, positive toward +Vo. Module GND, the filtered input return and output −Vo share the common node in this positive-output EMC example.
Immunity framework BS EN/EN 55035
Radiated immunity BS EN/EN 61000-4-3: Level 2, 3 V/m, performance criterion A
EFT/burst immunity BS EN/EN 61000-4-4: Level 2, 1 kV, performance criterion A
Surge immunity BS EN/EN 61000-4-5: Level 2, 1 kV line-to-line, performance criterion A
Conducted immunity BS EN/EN 61000-4-6: Level 2, 3 V, performance criterion A
MTBF 17290.5 K hours minimum, Telcordia SR-332 (Bellcore); 1000.6 K hours minimum, MIL-HDBK-217F at +25°C
Manufacturer warranty 3 years
