MEAN WELL NID65 series: Non-isolated regulated DC/DC converter - NID65-15

Description

NID65-15 — Non-isolated regulated DC/DC converter

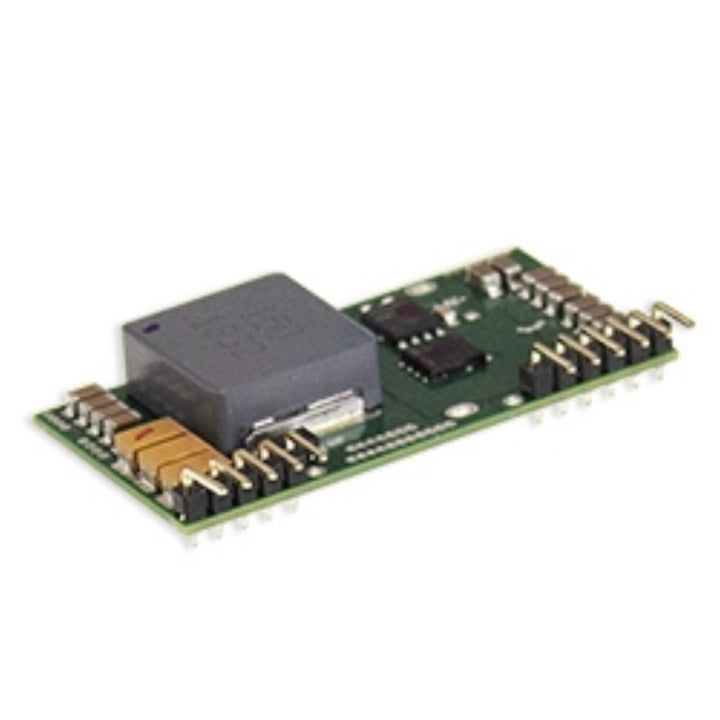

MEAN WELL NID65-15 is an economical open-frame, non-isolated regulated DC/DC converter in a SIP package. It provides 15 V DC with 0–4.3 A output and a rated power of 64.5 W from a 20–53 V DC input. Remote ON/OFF control, optional output trimming and free-air convection cooling support integration into equipment. Apply the model-specific input-voltage and ambient-temperature derating limits.

Download MEAN WELL NID65 Datasheet (PDF)

NID65 specifications, connection diagrams and dimensions: PDF pages 4–6.

Electrical specifications

DC output voltage 15 V DC
Output current range 0–4.3 A
Rated output power 64.5 W; subject to the input-voltage and temperature derating curves
Input voltage range 20–53 V DC
Normal input voltage 24 V DC (or 48 V DC)
Efficiency (typical) 97% at 24 V DC input; 95% at 48 V DC input
Input current at full load 3000 mA at 24 V DC input
No-load input current 30 mA
Switching frequency 200 kHz typical
Voltage tolerance ±2.0%
Line regulation ±0.5%, measured from low line to high line at rated load
Load regulation ±0.5%, measured from 10% to 100% rated load
Ripple and noise 150 mVp-p maximum; measured at 20 MHz using a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors
External capacitance load 47 µF / 50 V, low ESR, maximum
General test conditions Normal input voltage, rated load, +25°C and 70% RH ambient, except where a specific condition is stated
Series capability reference The NID65 series features efficiency up to 97%. This series maximum is not the efficiency rating of every model or input condition; use the selected model's typical-efficiency values above.

Control, protection and alternative connection

Remote ON/OFF Voltage is measured from R.C. to COM. ON: 1.2 V DC < R.C.–COM < 12 V DC, or an open circuit. OFF: R.C.–COM < 0.4 V DC, or a short circuit. The pin table assigns R.C. to pin 11 and COM to pins 5 and 6.
Optional output trim Pin 10 is Trim (optional). Confirm the supplied trim configuration and allowable adjustment range before use; the series pages do not specify a trim range or external adjustment-resistor value.
Overload protection 120–250% of rated output power, typical; hiccup mode with automatic recovery after the fault condition is removed
Short-circuit protection All outputs have short-circuit protection; hiccup mode with automatic recovery after the fault condition is removed
Overvoltage protection 17.5–21 V; shuts off the output voltage and clamps it with a TVS diode
Input fuse recommendation 5 A fuse, as recommended in the input specification
Negative-output connection reference The negative-output diagram connects the external positive supply to module +Vin pins 7 and 8; external −Vin and the application GND connect to module +Vout pins 1–4; the negative output −Vo is taken from COM pins 5 and 6. The input capacitor is positive toward external +Vin; the output capacitor is positive toward application GND. PDF page 5 states that the input voltage in this connection must be below 30 V DC. The external supply reference in this connection differs from module COM. Confirm the complete negative-output application limits and control references with MEAN WELL; the diagram does not provide a separate negative-output current or power rating.

Environment and load derating

Operating temperature and cooling −30 to +85°C, subject to the derating curves; cooling by free-air convection
Input-dependent load derating Vertical installation, free-air convection. The three curves apply to 20 ≤ Vin ≤ 30 V DC, 30 < Vin ≤ 50 V DC, and 50 < Vin ≤ 53 V DC, respectively. The lowest-input band shows 100% load through +65°C; the two higher-input bands show 100% through +55°C. At +85°C the plotted limits are approximately 45%, 35% and 30%. Follow the applicable curve between plotted points; do not apply a full-load temperature from another input band. The working range ends at +85°C.
Working humidity 20–85% RH, non-condensing
Storage temperature −30 to +105°C
Temperature coefficient ±0.03%/°C over 0 to +55°C
Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of the X, Y and Z axes

Mechanical details and packing

Dimensions 50.8 × 26 × 11 mm (L × W × H), or 2.0 × 1.024 × 0.433 inches, in the specification table. The mechanical drawing instead shows a 12 mm maximum profile. Confirm the supplied dimensions and allow clearance for the drawing maximum.
Mechanical drawing details Front-view references: 50.8 mm overall length, 10.2 mm and 25.4 mm dimension spans, 2.54 mm local pin pitch, 0.64 mm pin width and 1.3 mm edge offset. The front view shows 4.5 mm lead projection; the side view shows a 4 mm horizontal pin offset. The drawing gives a general tolerance of ±1 mm (±0.04 inch). The additional side-view span is printed as 9 mm [0.315 inch]; these two units are inconsistent. Confirm that detail against the supplied unit before using it for a tight mechanical fit.
Pin assignment Pins 1–4: +Vout; pins 5 and 6: COM; pins 7 and 8: +Vin; pin 9: N.C.; pin 10: Trim (optional); pin 11: R.C. Use the orientation shown in the mechanical drawing.
Package and cooling option Open-frame SIP package
Unit weight 19 g, catalog per-unit weight/packing reference; not an independently measured net weight
Bulk packing reference 280 pieces / 6.32 kg / 0.94 CUFT; bulk packing information does not define the quantity supplied in this listing

Safety, EMC and reliability

Safety standards EAC TP TC 004 approved; BS EN/EN 62368-1 (LVD) is listed in the safety specification
Conducted and radiated emissions BS EN/EN 55032 Class A without additional EMC components; Class B with the specified external EMC filter components
EMC suggestion circuit components C1 and C2: 120 µF / 63 V each; C3: 22 µF / 35 V. L1: 15 µH (NiZn).
EMC suggestion circuit connections L1 has coupled windings in both input conductors. C1 is across the input before L1, and C2 is across the module input after L1, with their positive terminals toward +Vin. C3 is across +Vo and −Vo, positive toward +Vo. Module GND, the filtered input return and output −Vo share the common node in this positive-output EMC example.
Immunity framework BS EN/EN 55035
Radiated immunity BS EN/EN 61000-4-3: Level 2, 3 V/m, performance criterion A
EFT/burst immunity BS EN/EN 61000-4-4: Level 2, 1 kV, performance criterion A
Surge immunity BS EN/EN 61000-4-5: Level 2, 1 kV line-to-line, performance criterion A
Conducted immunity BS EN/EN 61000-4-6: Level 2, 3 V, performance criterion A
MTBF 16602.6 K hours minimum, Telcordia SR-332 (Bellcore); 890.7 K hours minimum, MIL-HDBK-217F at +25°C
Manufacturer warranty 3 years

MEAN WELL NID65 series: Non-isolated regulated DC/DC converter - NID65-15

Product form

NID65-15 — Non-isolated regulated DC/DC converter MEAN WELL NID65-15 is an economical open-frame, non-isolated regulated DC/DC converter in a SIP... Read more

$28.59 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    NID65-15 — Non-isolated regulated DC/DC converter

    MEAN WELL NID65-15 is an economical open-frame, non-isolated regulated DC/DC converter in a SIP package. It provides 15 V DC with 0–4.3 A output and a rated power of 64.5 W from a 20–53 V DC input. Remote ON/OFF control, optional output trimming and free-air convection cooling support integration into equipment. Apply the model-specific input-voltage and ambient-temperature derating limits.

    Download MEAN WELL NID65 Datasheet (PDF)

    NID65 specifications, connection diagrams and dimensions: PDF pages 4–6.

    Electrical specifications

    DC output voltage 15 V DC
    Output current range 0–4.3 A
    Rated output power 64.5 W; subject to the input-voltage and temperature derating curves
    Input voltage range 20–53 V DC
    Normal input voltage 24 V DC (or 48 V DC)
    Efficiency (typical) 97% at 24 V DC input; 95% at 48 V DC input
    Input current at full load 3000 mA at 24 V DC input
    No-load input current 30 mA
    Switching frequency 200 kHz typical
    Voltage tolerance ±2.0%
    Line regulation ±0.5%, measured from low line to high line at rated load
    Load regulation ±0.5%, measured from 10% to 100% rated load
    Ripple and noise 150 mVp-p maximum; measured at 20 MHz using a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors
    External capacitance load 47 µF / 50 V, low ESR, maximum
    General test conditions Normal input voltage, rated load, +25°C and 70% RH ambient, except where a specific condition is stated
    Series capability reference The NID65 series features efficiency up to 97%. This series maximum is not the efficiency rating of every model or input condition; use the selected model's typical-efficiency values above.

    Control, protection and alternative connection

    Remote ON/OFF Voltage is measured from R.C. to COM. ON: 1.2 V DC < R.C.–COM < 12 V DC, or an open circuit. OFF: R.C.–COM < 0.4 V DC, or a short circuit. The pin table assigns R.C. to pin 11 and COM to pins 5 and 6.
    Optional output trim Pin 10 is Trim (optional). Confirm the supplied trim configuration and allowable adjustment range before use; the series pages do not specify a trim range or external adjustment-resistor value.
    Overload protection 120–250% of rated output power, typical; hiccup mode with automatic recovery after the fault condition is removed
    Short-circuit protection All outputs have short-circuit protection; hiccup mode with automatic recovery after the fault condition is removed
    Overvoltage protection 17.5–21 V; shuts off the output voltage and clamps it with a TVS diode
    Input fuse recommendation 5 A fuse, as recommended in the input specification
    Negative-output connection reference The negative-output diagram connects the external positive supply to module +Vin pins 7 and 8; external −Vin and the application GND connect to module +Vout pins 1–4; the negative output −Vo is taken from COM pins 5 and 6. The input capacitor is positive toward external +Vin; the output capacitor is positive toward application GND. PDF page 5 states that the input voltage in this connection must be below 30 V DC. The external supply reference in this connection differs from module COM. Confirm the complete negative-output application limits and control references with MEAN WELL; the diagram does not provide a separate negative-output current or power rating.

    Environment and load derating

    Operating temperature and cooling −30 to +85°C, subject to the derating curves; cooling by free-air convection
    Input-dependent load derating Vertical installation, free-air convection. The three curves apply to 20 ≤ Vin ≤ 30 V DC, 30 < Vin ≤ 50 V DC, and 50 < Vin ≤ 53 V DC, respectively. The lowest-input band shows 100% load through +65°C; the two higher-input bands show 100% through +55°C. At +85°C the plotted limits are approximately 45%, 35% and 30%. Follow the applicable curve between plotted points; do not apply a full-load temperature from another input band. The working range ends at +85°C.
    Working humidity 20–85% RH, non-condensing
    Storage temperature −30 to +105°C
    Temperature coefficient ±0.03%/°C over 0 to +55°C
    Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of the X, Y and Z axes

    Mechanical details and packing

    Dimensions 50.8 × 26 × 11 mm (L × W × H), or 2.0 × 1.024 × 0.433 inches, in the specification table. The mechanical drawing instead shows a 12 mm maximum profile. Confirm the supplied dimensions and allow clearance for the drawing maximum.
    Mechanical drawing details Front-view references: 50.8 mm overall length, 10.2 mm and 25.4 mm dimension spans, 2.54 mm local pin pitch, 0.64 mm pin width and 1.3 mm edge offset. The front view shows 4.5 mm lead projection; the side view shows a 4 mm horizontal pin offset. The drawing gives a general tolerance of ±1 mm (±0.04 inch). The additional side-view span is printed as 9 mm [0.315 inch]; these two units are inconsistent. Confirm that detail against the supplied unit before using it for a tight mechanical fit.
    Pin assignment Pins 1–4: +Vout; pins 5 and 6: COM; pins 7 and 8: +Vin; pin 9: N.C.; pin 10: Trim (optional); pin 11: R.C. Use the orientation shown in the mechanical drawing.
    Package and cooling option Open-frame SIP package
    Unit weight 19 g, catalog per-unit weight/packing reference; not an independently measured net weight
    Bulk packing reference 280 pieces / 6.32 kg / 0.94 CUFT; bulk packing information does not define the quantity supplied in this listing

    Safety, EMC and reliability

    Safety standards EAC TP TC 004 approved; BS EN/EN 62368-1 (LVD) is listed in the safety specification
    Conducted and radiated emissions BS EN/EN 55032 Class A without additional EMC components; Class B with the specified external EMC filter components
    EMC suggestion circuit components C1 and C2: 120 µF / 63 V each; C3: 22 µF / 35 V. L1: 15 µH (NiZn).
    EMC suggestion circuit connections L1 has coupled windings in both input conductors. C1 is across the input before L1, and C2 is across the module input after L1, with their positive terminals toward +Vin. C3 is across +Vo and −Vo, positive toward +Vo. Module GND, the filtered input return and output −Vo share the common node in this positive-output EMC example.
    Immunity framework BS EN/EN 55035
    Radiated immunity BS EN/EN 61000-4-3: Level 2, 3 V/m, performance criterion A
    EFT/burst immunity BS EN/EN 61000-4-4: Level 2, 1 kV, performance criterion A
    Surge immunity BS EN/EN 61000-4-5: Level 2, 1 kV line-to-line, performance criterion A
    Conducted immunity BS EN/EN 61000-4-6: Level 2, 3 V, performance criterion A
    MTBF 16602.6 K hours minimum, Telcordia SR-332 (Bellcore); 890.7 K hours minimum, MIL-HDBK-217F at +25°C
    Manufacturer warranty 3 years
