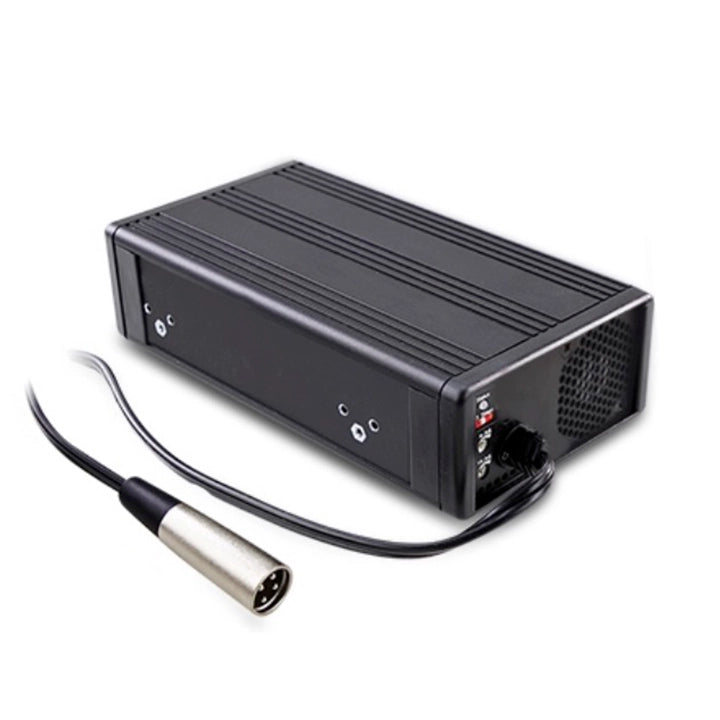

Description
Output average charge voltage (Vboost)(default):57.6V Output float voltage (Vfloat)(default):55.2V Adjustable output voltage range: 42~60.8V Output current (Typ.):2A Adjustable output current range: 50% ~ 100 Maximum power: 121.6W Recommended battery capacity (AMP HOURS):7 ~ 25AH Input voltage: 90 ~ 264VAC,127 ~ 370VDC Size (mm):182.7X96X49 Output plug: 3 pin power pin
Product Features
1. International universal full range input: 90 ~ 264VAC.
2. Small size, wide range charging voltage, fanless design (NPB-120/240).
3. Fan on/off control (depending on internal temperature, NPB-360).
4. The charging voltage and current are adjustable through VR, 2 or 3-stage charging, which can be switched through (DIP S.W).
5. No-load power consumption <0.5W(AC S.W off),-30 ~ +70 ℃ wide operating temperature.
6. Protection type: short circuit/over voltage/over temperature/battery reverse polarity protection.
7. Through UL/EN62368-1 and EN60335-1/2-29 double safety certification.
8. It is suitable for charging lead-acid batteries and lithium batteries. Fixed accessories (order model: MHS012D) can be purchased separately for 3 years.
