MEAN WELL NPF-120D series: constant current dimmable LED driver - NPF-120D-15BE

Description

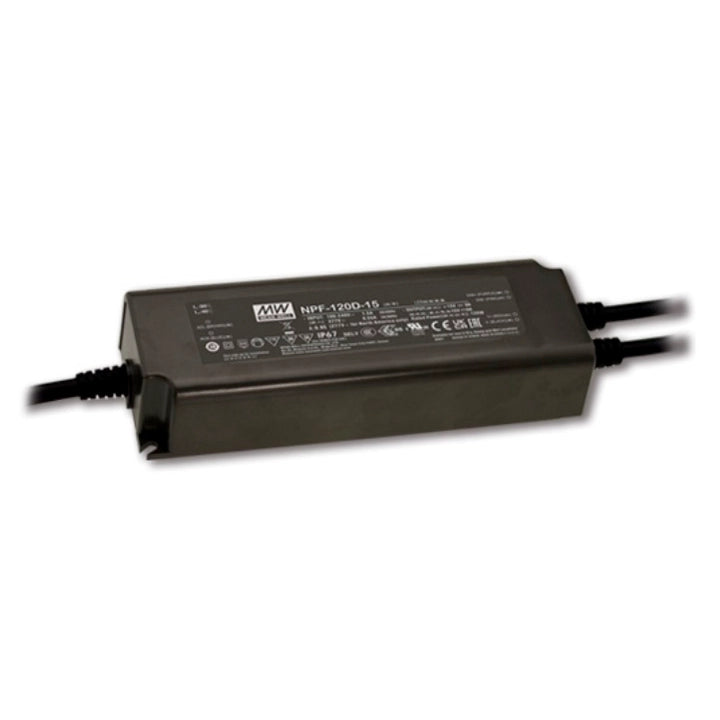

MEAN WELL NPF-120D-15BE

MEAN WELL NPF-120D-15BE is an AC/DC constant current dimmable LED driver for LED lighting. Its rated output is 8 A with a 9-15 V operating region and 120 W catalog rated power. Match the LED string voltage to the constant-current region; the model voltage is the upper rated output-voltage limit. This BE version also provides a nominal 12 V, 0.2 A auxiliary output referenced to DIM−.

Download MEAN WELL NPF-120D Datasheet (PDF)

Combined catalog: PDF pages 46-52; specifications on page 47, wiring and dimensions on page 52.

Output and model selection

Parameter Details
Full model NPF-120D-15BE
Model code NPF identifies the driver family; 120 identifies the nominal series power class; 15 identifies the rated output voltage. Use the actual 120 W rating for this model. D identifies 3-in-1 current dimming. BE identifies the auxiliary DC output option, listed by the manufacturer as a by-request configuration.
Output mode Constant current (CC), with 3-in-1 current dimming
Rated output 15 V; 8 A; 120 W
Constant-current region 9-15 V

Output performance

Parameter Details
Current tolerance ±5.0%
Current ripple 5.0% maximum at rated current
LED driving method Direct connection to compatible LEDs is recommended. This constant-current dimming driver is not suitable for use with additional LED drivers. The highest voltage in the CC region depends on the final system configuration; verify load compatibility.
Auxiliary DC output Nominal 12 V, deviation 11.4-12.6 V at 0.2 A; AUX+ to DIM−. Use yellow AUX+ and pink DIM−; this reference is not Vo−.
Typical efficiency 87.5%; BE value measured with the auxiliary output fully loaded at 12 V, 0.2 A
Startup 500 ms setup at 115 VAC / 230 VAC; measured at first cold start. Repeated switching can increase setup time.

Input and mains loading

Parameter Details
Input range 90-305 VAC / 127-431 VDC; 47-63 Hz
Power factor Built-in active PFC; typical full-load PF ≥0.97 at 115 VAC; ≥0.96 at 230 VAC; ≥0.94 at 277 VAC
Total harmonic distortion THD <20% at load ≥60% with 115/230 VAC, or load ≥75% with 277 VAC
Input current (typical) 1.3 A at 115 VAC; 0.65 A at 230 VAC; 0.55 A at 277 VAC
Cold-start inrush (typical) 60 A at 230 VAC; 520 µs width measured at 50% peak current, per NEMA 410
Maximum units on a 16 A breaker 4 on Type B / 6 on Type C at 230 VAC
Leakage current <0.25 mA at 277 VAC
Standby consumption <0.5 W
Input/load derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; full-load region through 305 VAC, subject to temperature limits.

Dimming interface

Parameter Details
Control connection Apply one control method between purple DIM+ and pink DIM−. Do not connect DIM− to black Vo−.
Accepted controls 0-10 VDC, or 10 V PWM at 100 Hz-3 kHz, or resistance
Dimming source current 100 µA typical from each driver
Controlled output Output constant-current level
Minimum level and off command Minimum dimming level is about 6% of rated output current; output current between 0% and 6% is undefined. Current can fall to 0% with about 0 kΩ, 0 VDC, or a 10 V PWM signal at 0% duty.
Full-output reference 10 VDC, 100% duty 10 V PWM, or 100 kΩ/N resistance, where N is the number of drivers in synchronized dimming. Select a controller for the combined source current and follow the complete control curve.
Control isolation The NPF dimming circuit is not isolated from the secondary output. Maintain the insulation and isolation required by the complete system.
SELV controller requirement These dimming leads are smaller than 18 AWG (0.75 mm²). The manufacturer permits only SELV dimming controllers for standalone supplies with these leads; consult MEAN WELL before using a FELV controller.

Protection and operating environment

Parameter Details
Overcurrent 95-108% of rated current; constant-current limiting; automatic recovery after the fault is removed.
Short circuit Hiccup mode; automatic recovery after the fault is removed.
Overvoltage 17.5-21 V; output shuts down; re-power to recover.
Overtemperature Output shuts down; re-power to recover.
Working case temperature Tcase -40 to +90°C; maximum case temperature +90°C. These are case limits, not full-load ambient ratings.
Cooling and ambient derating Free-air convection with the recommended horizontal mounting. The following ambient and case-temperature limits apply to horizontal installation as shown in the mechanical drawing. For this 12/15 V branch, ambient Ta curve: 100% load through +40°C, then derate to 40% at +70°C. The -40 to -25°C region is specified only for 230 VAC input. Meet both the ambient-load curve and the maximum case temperature.
Operating humidity 20-95% RH, non-condensing
Storage -40 to +80°C; 10-95% RH
Temperature coefficient ±0.03%/°C over 0 to +40°C
Altitude derating For this fanless design above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m.
Vibration 10-500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis

Dimensions, wiring and installation

Parameter Details
Body dimensions 191 x 63 x 37.5 mm (L x W x H)
Mounting Two Ø4.5 mm mounting holes; case PWM-120. Use the manufacturer drawing for hole positions and clearance.
AC and output wire colors Brown AC/L; blue AC/N; red Vo+; black Vo−. Class II construction has no FG lead. For DC input, confirm the model-specific input polarity with the manufacturer before wiring.
Input cable SJTW 18 AWG x 2 conductors, 300 ±20 mm
Output cable SJTW 14 AWG x 2 conductors, 300 ±20 mm
Control cable UL 2464 22 AWG x 3 conductors, 300 ±20 mm; purple DIM+, pink DIM−, yellow AUX+
Case-temperature measurement Measure at the tc point marked in the mechanical drawing; do not substitute ambient temperature.
Ingress protection IP67 plastic housing for dry, damp or wet locations, including suitable indoor/outdoor installations. Do not place the product in water. Protect and insulate all cable interconnections according to the installation manual.
Installation and service Disconnect the utility supply before installation or maintenance and prevent accidental reconnection. Keep the unit ventilated and free of stacked objects; leave 10-15 cm from an adjacent heat source. Derate for nonstandard mounting orientation or excessive ambient temperature. Use approved cables with current ratings at least equal to the unit rating; check all connections. Keep single-insulated wires covered by the final system enclosure. Do not open the case; damaged external cables must be replaced by the manufacturer, service agent or similarly qualified personnel.
Reference mass 970 g per unit, from the catalog PACKING value of 0.97 kg. Catalog packing reference per unit; not a measured net weight or total shipping-package weight.

Safety and system integration

Parameter Details
Design and output class Class II plastic enclosure; SELV output.
Listed safety standards UL 8750 Type HL; CSA C22.2 No. 250.13-12; ENEC BS EN/EN 61347-1, BS EN/EN 61347-2-13 (independent), BS EN/EN 62384; EAC TP TC 004; GB/T 19510.1 and GB/T 19510.213; IP67 approval.
Design reference BS EN/EN 60335-1 is a design reference, distinct from the listed approvals.
Input-output isolation 3.75 kVAC withstand; insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH
EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020
EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547 light-industry level, including 2 kV line-to-line surge; EAC TP TC 020
Final equipment The driver is a component. The final equipment manufacturer must re-qualify EMC for the complete installation; component approvals do not automatically certify the finished luminaire.
Type HL application The catalog lists Type HL use in Class I, Division 2 hazardous (classified) locations; the finished installation must satisfy the applicable luminaire and location requirements.
Manufacturer lighting-installation condition For the lighting-fixture ErP condition stated in the datasheet, install behind a switch, without a permanent connection to the mains.
BE application restriction The manufacturer specifies BE for light sources exempt from the EU 2019/2020 requirement, such as road, railway, marine or air-traffic signalling, traffic control or airfield lamps. Confirm the intended light-source application before selection.

Reliability and reference conditions

Parameter Details
Typical lifetime More than 50,000 hours when the case tc point (or TMP) is about +75°C or lower, subject to the operating and installation limits.
Catalog MTBF 2632.6 thousand hours minimum, Telcordia SR-332; 233.9 thousand hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime.
Manufacturer warranty The catalog states 5 years; subject to MEAN WELL warranty terms.
Measurement basis Unless otherwise specified, parameters are measured at 230 VAC input, rated current and +25°C ambient. Typical efficiency, PF and transient figures depend on operating conditions. Use the model-specific derating and control curves.
