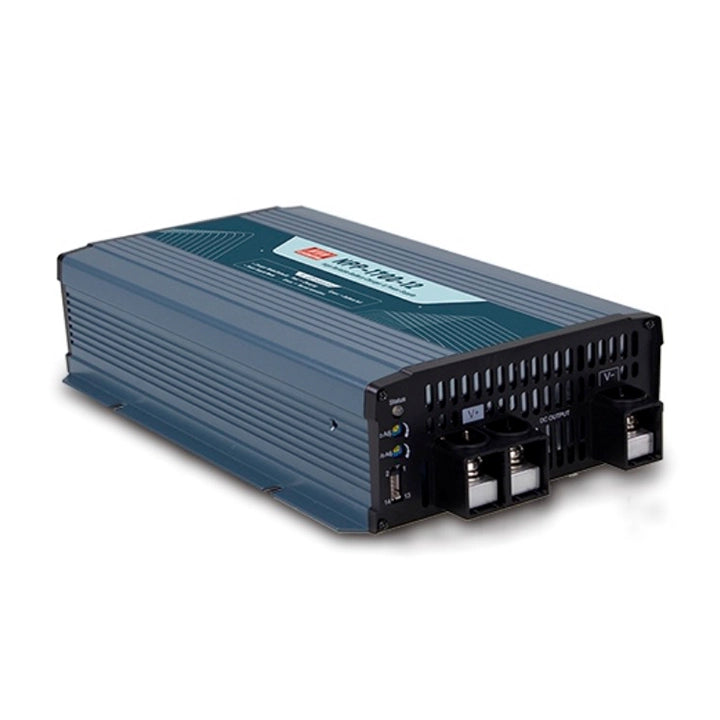

The MEAN WELL NPP-1700-48 combines a three-stage lead-acid battery charger and a selectable DC power supply in one fan-cooled enclosure. Default charging settings are 57.6 V boost, 55.2 V float and 25 A constant current. The catalogue maximum output power is 1680 W, subject to the voltage, current, input and temperature limits below. The 48 V model suffix identifies the voltage class rather than the actual charging voltage.
Product Datasheet
Download MEAN WELL NPP-1700 Datasheet (PDF)
The NPP-1700 section is on PDF pages 28, 29, 30, 31, 32, 33, 34, 35, 36. Refer to the complete mechanical drawings and notes when planning installation.
Battery Charger Output
| Complete model |
NPP-1700-48 |
| Nominal voltage class |
48 V |
| Default boost charge voltage |
57.6 V |
| Default float charge voltage |
55.2 V |
| Maximum output current |
25 A |
| Maximum output power |
1680 W |
| Default constant-current setting |
25 A |
| Output voltage adjustment range |
42–80 V |
| Current adjustment range |
12.5–25 A |
| Recommended battery capacity |
100–330 Ah |
Three-stage charging is the factory operating mode. Supported battery types are flooded, gel and AGM lead-acid. Confirm the battery manufacturer’s charging-voltage and maximum-current requirements; battery-specific settings or specification changes may be necessary.
The built-in potentiometer adjusts float voltage in charger mode. The panel provides Vo Adj and Io Adj controls; current adjustment is 50–100% within the stated 12.5–25 A range. Do not treat the model suffix as the battery’s charging voltage or assume full current throughout the entire voltage range.
Maximum output power is a separate limit, not the product of the default boost voltage and CC setting. Output voltage multiplied by output current must not exceed the rated power.
Selectable Power Supply Mode
| Default DC output voltage |
57.6 V |
| Rated output current |
25 A |
| Rated output power |
1680 W |
| PSU voltage adjustment |
42–80 V by built-in potentiometer |
| PSU current adjustment |
12.5–25 A |
| Ripple and noise, maximum |
480 mVp-p |
| Voltage tolerance |
±1% |
| Line regulation |
±0.5% |
| Load regulation |
±0.5% |
| Setup / rise time |
1800 ms / 60 ms at 230 VAC, full load |
| Typical hold-up time |
16 ms at 230 VAC, 75% load; 10 ms at 230 VAC, full load |
CN71 pins 3 and 4 select the operating mode: leave them open for battery charging (factory default), or connect the supplied mode jumper for power supply operation. These are two functions of the same complete model. In PSU mode, set the output voltage and current for the connected load and observe all derating and power limits.
Three-Stage Charging and Indicators
| Stage 1 |
Constant current: 100% of the CC setting while battery voltage rises |
| Stage 2 |
Constant voltage at Vboost while charging current tapers |
| Stage 3 |
Float at Vfloat after current reaches 10% of the CC setting |
| Charger indicator |
Red during CC/CV charging; green at float / full charge; no light indicates abnormal status |
| PSU indicator |
Green during normal power supply operation; no light indicates abnormal status |
The transition point shown in the charging curve is 10% of CC. Select settings suitable for the specific battery; this unit’s stated charging function is three-stage operation.
Input and Efficiency
| AC input |
90–264 VAC |
| DC input |
250–370 VDC |
| Input frequency |
47–63 Hz |
| Typical AC current |
14.8 A at 115 VAC; 9.3 A at 230 VAC |
| Typical power factor |
>0.98 at 115 VAC; >0.95 at 230 VAC, full load |
| Typical cold-start inrush |
50 A at 230 VAC |
| Typical efficiency |
94% |
| Input leakage current |
<0.75 mA at 240 VAC under 60335-1/2-29; <1.5 mA peak at 240 VAC under 62368-1 |
Unless otherwise stated, specifications use 230 VAC input, rated load and 25°C ambient temperature. The charging-efficiency test uses 67.2 V output for this model. Active inrush-current limiting and PFC are shown in the block diagram, with PFC and PWM switching frequencies of 80 kHz and 60 kHz.
Cooling and Derating
| Cooling |
Built-in DC fan controlled by internal temperature |
| Horizontal temperature curve |
Full power through +50°C; derate to 50% at +70°C |
| Low-temperature condition |
−30 to −25°C operation is specified for 230 VAC input only |
| Low-line current limit |
70% output current from 90 VAC to below 180 VAC; 100% from 180 to 264 VAC, at 60 Hz |
| Output-voltage current limit |
100% current up to 67.2 V; 80% above that point through 80 V |
Apply the output-voltage/current, AC-input/current and ambient-temperature/power limits together. Full output is not available at every combination of input voltage, output setting and ambient temperature. The AC curve does not establish an additional DC-input derating curve.
For this fan-cooled unit above 2000 m, reduce the permissible ambient temperature by 5°C per additional 1000 m. Keep both the fan opening and airflow path clear. The altitude derating note does not specify an unlimited maximum operating altitude.
Protection
| Charger short circuit |
Constant-current limiting, followed by shutdown; re-power to recover. |
| PSU overload |
105–115% of rated output power; constant-current limiting, then shutdown after 5 seconds; re-power to recover |
| PSU short circuit |
Constant-current limiting, followed by shutdown; re-power to recover. |
| Overvoltage |
82–100 V; shutdown and latch-off; re-power to recover |
| Overtemperature |
Output shutdown; automatic recovery after temperature falls |
The charger short-circuit protection specification applies when the short circuit occurs after the charger has been turned on. Remove the fault before restoring power.
Control Connector and Mating Parts
| CN71 header |
HRS DF11-14DP-2DS or equivalent |
| Mating housing |
HRS DF11-14DS or equivalent |
| Contact family |
HRS DF11-**SC or equivalent |
| Pins 1, 2 and 11–14 |
NC |
| Pins 3 and 4 |
Open: charger mode; short: power supply mode |
| Pin 5 |
Battery Full signal |
| Pin 6 |
Charger OK / DC OK signal |
| Pin 7 |
Remote ON-OFF |
| Pin 8 |
+12V-AUX |
| Pins 9 and 10 |
GND-AUX |
The DF11-**SC entry is a contact family with an unspecified suffix, not a complete contact ordering reference. Select the correct contact for the wire assembly. Use the connector orientation and pin numbering shown in the drawing.
GND-AUX is the signal return isolated from the output terminals +V and −V. The +12V-AUX function is controlled by Remote ON-OFF; use it within the specified control arrangement.
Remote Control and TTL Signals
Remote ON-OFF uses a dry contact between pin 7 and pin 8: shorted is ON (default), with pin 7 at 10.8–13.2 V; open is OFF, with pin 7 at −0.5 to +0.5 V. The maximum input voltage is 13.2 V. In charger mode this enables or stops charging; in PSU mode it switches the output on or off.
Pin 5 Battery Full is an output-only TTL signal referenced to GND-AUX pins 9/10, with a maximum sourcing current of 10 mA. Low, −0.5 to +0.5 V, means charging; high, 4.5–5.5 V, means the battery is full.
Pin 6 Charger OK / DC OK is also output-only TTL, referenced to GND-AUX pins 9/10, with a maximum sourcing current of 10 mA. High, 4.5–5.5 V, indicates normal operation; low, −0.5 to +0.5 V, indicates failure or an active protection function.
Mechanical Installation and Accessories
| Dimensions, L × W × H |
307.7 × 184 × 70 mm |
| Case drawing |
286C; dimensions in mm, general tolerance ±1 mm |
| Catalogue unit weight |
2960 g; packing reference per unit, not a measured net or shipping weight |
| Output-terminal projection |
19 mm as marked in the drawing |
| Supplied mode jumper |
1FF1HMJ20-020-95BS or equivalent; one piece for CN71 pins 3 and 4 |
| Optional accessory |
Carry Handle; order the unit and handle separately |
The flange-slot centres are 155 mm apart along the length; the indicated right-hand slot is 76.35 mm from the body edge. The top drawing marks 144 mm between handle attachment positions. The front view has two +V terminals on the left and one −V terminal on the right. Their successive centre spacings are 23 mm and 66.75 mm; the rightmost terminal centre is 39.75 mm from the indicated right edge. The drawing shows 164 mm inner body width within 184 mm overall width.
The output-terminal centre height is marked 18.6 mm. The rear drawing shows the AC inlet, power switch and fan; its airflow arrow points toward the rear AC side. Follow the front-view +V and −V markings when wiring the output.
The optional Carry Handle kit drawing lists one handle, four foot pads and two screws. Install them at the depicted positions; the screw marking is M4*2. The handle is a separately ordered accessory, not part of the charger’s stated standard mode-jumper supply.
Environment and Reliability
| Operating ambient |
−30 to +70°C, subject to the stated input and derating conditions |
| Operating humidity |
20–95% RH, non-condensing |
| Storage |
−40 to +85°C; 10–95% RH, non-condensing |
| Temperature coefficient |
±0.05%/°C over 0–50°C |
| Vibration |
10–500 Hz, 2G; 10 minutes per cycle, 60 minutes each along X, Y and Z |
| Minimum calculated MTBF |
577.4 thousand hours, Telcordia SR-332; 58.5 thousand hours, MIL-HDBK-217F at 25°C |
| Manufacturer warranty |
3 years |
Application examples include radio-system backup, lead-acid scooter charging, camping cars, buses, heavy-duty and specialty vehicles, surveillance, industrial automation and mechanical or electrical equipment. Check the load, battery and installation conditions for the intended application.
Safety, Insulation and EMC
| Dielectric withstand |
Input/output: 3 kVAC; input/FG: 2 kVAC; output/FG: 0.5 kVAC |
| Insulation resistance |
100 MΩ between input/output, input/FG and output/FG, at 500 VDC, 25°C and 70% RH |
| Conducted / radiated emissions |
BS EN/EN 55032 (CISPR32): Class B conducted / Class A radiated |
| Harmonic current / voltage flicker |
BS EN/EN 61000-3-2 Class A / BS EN/EN 61000-3-3 |
The catalogue lists CB IEC 62368-1 and IEC 60335-1/2-29; Dekra BS EN/EN 62368-1 and BS EN/EN 60335-1/2-29; UL 62368-1; and EAC TP TC 004 approvals. These component approvals do not by themselves certify the complete equipment.
Immunity references BS EN/EN 61000-4-2 through -4-6, -4-8 and -4-11: ESD 8 kV air / 4 kV contact; radiated RF 3 V/m; EFT/burst 1 kV; surge 1 kV line-to-line / 2 kV line-to-earth; conducted RF 3 Vrms; magnetic field 1 A/m. Voltage dips are >95% for 0.5 period and 30% for 25 periods; interruptions are >95% for 250 periods.
The EMC test arrangement mounts the unit on a 600 × 900 mm metal plate, 1 mm thick. Final equipment must be checked for continued EMC compliance.
