Description

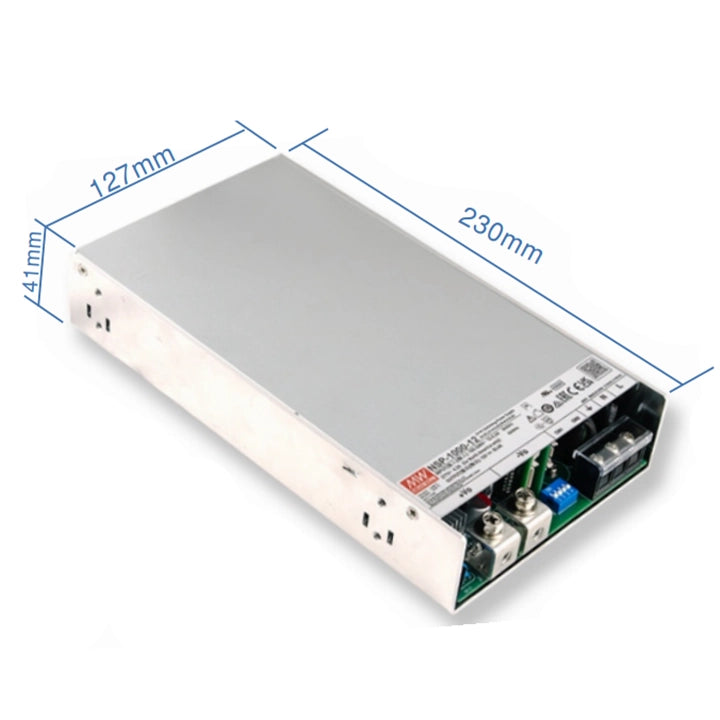

Rated power: 1000.8W Input Voltage: 85 ~ 305Vac,120 ~ 431Vdc Output voltage: 24V Output current: 0 ~ 41.7A Peak current (5 seconds):83.4A Peak power (5 seconds):2000W Communication protocol: CANBus protocol, standard Size (mm):230X127X41
Click to download Airtac product catalog
Product Features
1. AC input voltage range 85 ~ 305Vac input, built-in PFC (meet 277Vac).
2. Multi-domain global certification (Information ITE 62368-1, Medical 60601-1, Household Appliance 60335-1, Industry 61558-1/2-16/61010-1/-2-201, Energy Converter 62477-1, SEMI47)).
3.200% peak power capability, efficiency as high as 94%, output voltage 0~120% and output current 0~100% programmable, support parallel current sharing, up to 4000W(3+1) in parallel.
4. Built-in anti-reverse irrigation redundant MOS (optional, order number: NSP-1000-xxOR/MODOR),CANBus (built-in) or MODBus protocol (optional).
5. Operating temperature range ~ 40~85 ℃(>+60 ℃ derating), ultra-low leakage current <350uA,2xMOPP, suitable for BF medical applications, built-in constant current limiting circuit.
6. Protection function: short circuit/overload/overvoltage/overtemperature, built-in remote switch control/remote remote sensing/DC OK signal, 5V and 12V auxiliary power supply.
7. Overvoltage category III (OVC III), working altitude up to 5000 meters, built-in intelligent fan speed control, noise <24dB, three-proof paint protection, 5-year warranty.
