Description

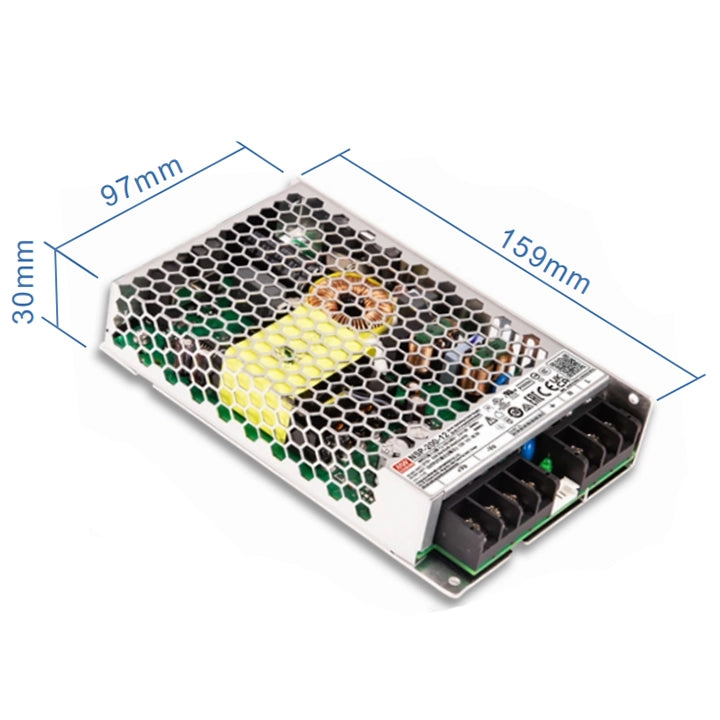

Rated power: 201.6W Input Voltage: 85 ~ 305Vac,120 ~ 431Vdc Output voltage: 48V Output current: 0 ~ 4.2A Peak current (5 seconds):8.4A Peak power (5 seconds):400W Size (mm):159X97X30
Click to download Airtac product catalog
Product Features
1. AC input voltage range 85 ~ 305Vac input, built-in PFC (277Vac), no-load power consumption <0.3W ~ 0.5W (through remote shutdown).
2. Multi-domain global certification (ITE 62368-1, medical 60601-1, household appliances 60335-1, industrial 61558-1/2-16,61010-1, power electronic converter 62477-1).
3. Up to 200% peak power (12~60V models), up to 94.5% efficiency, operating temperature range -40 ~ +85 ℃(>+60 ℃ reduction).
4. Leakage current <350 μA,2xMOPP, suitable for BF medical applications, built-in constant current limiting circuit, protection: short circuit/overload/overvoltage/overtemperature, fanless design to meet low noise applications.
5. Built-in remote control switch, overvoltage category III (OVC III), working altitude up to 5000 meters, three-proof paint protection, 5-year warranty.
