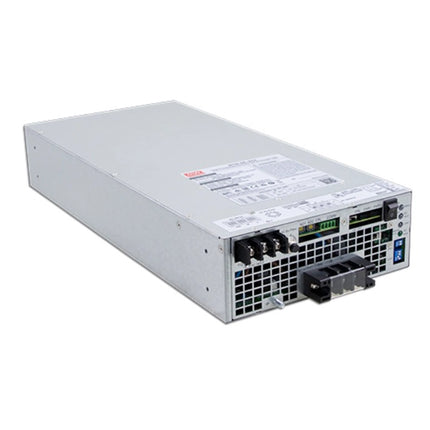

Description
AC output power rating (continuous):5000W AC output over power (3 minutes):5750W AC output peak power (10 seconds):7500W AC instantaneous power (30 cycles):10000W AC output AC voltage: factory set at 230VAC,200/220/230/240VAC can be selected by DIP S.W AC output frequency: factory set at 50±0.1Hz,50/60Hz can be selected by DIP S.W DC input DC voltage: 48VDC DC input voltage range (Typ.):38 ~ 66VDC DC input DC current (Typ.):120A Size (mm):460X211X83.5 Communication protocol: CANBus protocol, standard
Product Features
1. AC-DC charging + DC load supply + AC bypass uninterrupted all-in-one machine.
2. Pure sine wave output (THD<3%),AC mains charging up to 135A/4KW.
3. It can support external MPPT solar charger, AC bypass is uninterrupted, and conversion time is less than 10ms.
4, can provide instantaneous power up to 10KW, parallel synchronous operation up to 30KW(5+1 units).
5, -30 ℃ ~ +70 ℃ wide working temperature.
6. Protection type: DC input: reverse polarity/DC low voltage alarm/DC low voltage shutdown/overvoltage, AC output: short circuit/overload/over temperature/AC circuit breaker.
Support MODBus-RTU(RS-485) communications.
8, 3 years warranty.
