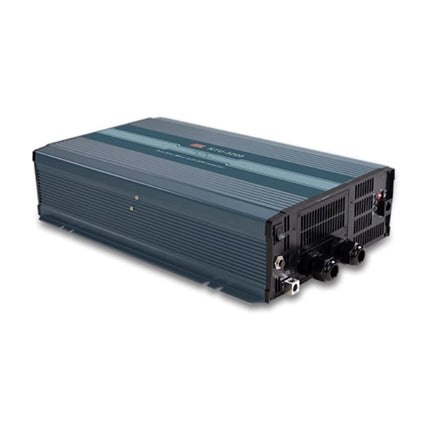

Description
AC output power rating (continuous):2200W AC output over power (3 minutes):2530W AC output peak power (10 seconds):3300W AC instantaneous power (30 cycles):4400W AC output AC voltage: factory set at 110VAC,100/110/115/120VAC can be selected by DIP S.W AC output frequency: factory set at 60Hz ± 0.1Hz,50/60Hz can be selected by DIP S.W DC input DC voltage: 24VDC DC input voltage range (Typ.):20 ~ 33VDC DC input DC current (Typ.):120A Size (mm):420X270X98 AC output socket type: global
Product Features
1. Built-in UPS function (AC bypass), pure sine wave output (THD<3%).
2. Instantaneous output power up to 200%,AC output voltage and frequency can be selected by DIP S.W.
3. -25~70 ℃ wide working temperature, remote control on/off power, remote control (IRC1,IRC2,IRC3, accessories sold separately, suitable for 1200W ~ 3200W).
4. Protection function: DC input: reverse polarity/DC low voltage alarm/DC low voltage shutdown/overvoltage, AC output: short circuit/overload/overtemperature.
5. Support RS-232 communication (750W ~ 3200W, communication line DS-RJ11-RS232 sold separately).
6. Handle accessories (model DS-Carry handle, sold separately).
7. Suitable for lead-acid batteries or lithium-ion batteries.
8. Internal PCB board, with coating protection, 3 years warranty.
