MEAN WELL OWA-120E series: Moistureproof AC/DC Adapter - OWA-120E-54

Description

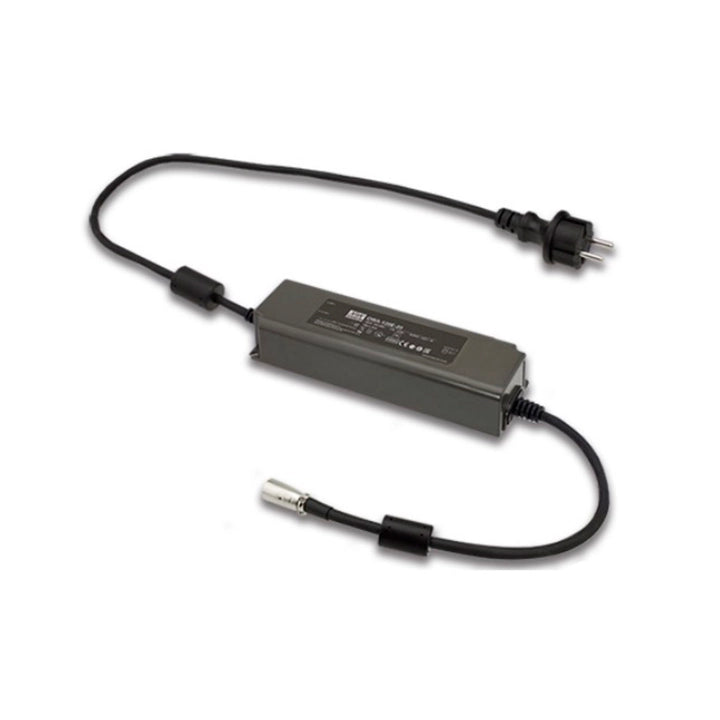

MEAN WELL OWA-120E-54 supplies 54 V DC at 2.3 A, with a rated output of 124.2 W. This Class II, fanless adapter uses a European AC plug and a standard XLR four-pin DC connector. Its fully potted power body is rated IP67; the DC connector is outside that rating. Observe the input and temperature derating limits.

Product Datasheet

Download MEAN WELL OWA-120E Datasheet (PDF)

The OWA-120E section is on PDF pages 27, 28, 29, 30, 31. Refer to the complete mechanical drawings and notes when planning installation.

Model and intended use

Complete model OWA-120E-54
Series / regional version OWA-120E; European plug version.
Output code 54 identifies the nominal 54 V DC output.
Intended applications General electronic devices, household equipment, robot lawn mowers and compatible charging-system applications.

For battery-powered equipment, use a charging system compatible with this output. Battery chemistry, charging stages and charge termination must be provided by the equipment's charging control.

Output performance

Rated output voltage 54 V DC
Rated output current 2.3 A
Rated output power 124.2 W
Ripple and noise 350 mVp-p maximum; measured with the test arrangement stated below.
Voltage tolerance ±1.0%
Line / load regulation ±0.5% / ±0.5%
Set-up / rise time 500 / 80 ms at 95% load, 230 VAC.
Hold-up time 16 ms typical at full load, 230 VAC.
Typical efficiency 90.5% at 230 VAC.
No-load consumption Less than 0.15 W; efficiency Level VI.

Input and efficiency

AC / DC input range 180–264 VAC / 254–370 VDC.
AC frequency 47–63 Hz
Power factor Active PFC; typical PF >0.96 at 230 VAC, full load.
Typical AC current 0.65 A at 230 VAC.
Typical inrush current Cold start: 60 A at 230 VAC; pulse width 520 µs measured at 50% of peak current.
Leakage current <0.25 mA at 240 VAC.

Protection

Overload protection 105–115%; hiccup mode, automatic recovery after the fault is removed.
Short-circuit protection Hiccup mode; automatic recovery after the fault is removed.
Over-voltage protection 59–66 V; output shuts down. Re-power the supply to recover.
Over-temperature protection Output shuts down. Re-power the supply to recover.

Environment and derating

Operating temperature / cooling −40 to +70°C, subject to derating; free-air convection with horizontal mounting.
Ambient-temperature derating At horizontal mounting, the curve permits 100% load from −40 to 40°C, falling to 40% at 70°C.
Input-voltage derating At 60 Hz: the static characteristic shows 100% load from 180 to 264 VAC. Apply temperature derating as well.
Working humidity 20–95% RH, non-condensing.
Storage −40 to +80°C; 10–95% RH.
Temperature coefficient ±0.03%/°C over 0–40°C.
Vibration 10–500 Hz, 5G, 12 minutes per cycle; 72 minutes on each X, Y and Z axis.

Insulation, protection and compliance

Electrical construction Class II, with no FG connection; fully potted silicone in a plastic enclosure.
Body protection IP67 applies to the power body, excluding DC connectors. Use a connection assembly suitable for the installation environment.
Withstand voltage Input to output: 3.75 kVAC.
Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH.
Catalogue-listed safety DEKRA EN61558-1 and EN61558-2-16; EAC TP TC 004. EN60335-1 is not included in the listed approval scope for the 48 V and 54 V versions.
EMC emissions EN55032 (CISPR32) Class B; EN55014-1; EN61000-3-2 and EN61000-3-3; EAC TP TC 020.
EMC immunity EN61000-4-2, -3, -4, -5, -6, -8 and -11; EN55014-2; EN55035; light-industry level, including 2 kV line-to-neutral surge; EAC TP TC 020.
Energy-efficiency references Level VI and EU ErP requirements are listed for this series.

Dimensions, leads and installation

Body dimensions 191 × 63 × 37.5 mm (L × W × H); case PWM-120, general drawing tolerance ±1 mm.
Mounting Horizontal mounting; two Ø4.5 mm mounting holes. Use the complete drawing for positions and clearances.
AC connection European CEE 7/7 plug; H05RN-F 1.0 mm² × 2C; 1500±20 mm.
DC lead H07RN-F 1.5 mm² × 2C; 300±20 mm.
Standard DC connector XLR 4 pins; NEUTRIK NC4MX or equivalent.
DC polarity / pin assignment Pins 1 and 2: +V; pins 3 and 4: −V.
Catalogue packing reference per unit 1.15 kg (1150 g), as the per-unit PACKING reference; not a measured net weight or shipment weight.

Check the connector view and pin numbering in the mechanical drawing before wiring. The marked Tcase point identifies the case-temperature measurement location. Keep the connection and installation conditions within the complete system's requirements.

Optional factory DC connectors

Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floating; pin 3: −V.
XLR 3-pin NEUTRIK NC3MX or equivalent Pin 1: +V; pins 2 and 3: −V.
CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V.
CHOGORI 23002411-01 or equivalent Pin 1: +V; pin 2: −V.
Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V.
Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V.
Tuning-fork barrel connector 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm length; centre positive, outer sleeve negative.

These are alternative factory output configurations, not additional connectors supplied with the standard model. For this 54 V, 2.3 A supply, confirm that the selected complete connector and cable assembly supports the intended load voltage and current; connector shape or matching polarity alone does not establish full-load compatibility.

Specify the connector, pin numbering and cable requirements when ordering. The optional barrel connector dimensions do not by themselves establish its current rating. The IP67 power-body rating does not extend to the DC connector.

Reliability and measurement notes

MTBF reference 2902.2 thousand hours minimum, Telcordia SR-332 (Bellcore); 294.4 thousand hours minimum, MIL-HDBK-217F at 25°C.
Catalogue warranty The manufacturer's series datasheet lists a 5-year warranty; its terms and applicability govern.
Catalogue version 2024-10-16

Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient.

Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with 0.1 µF and 47 µF capacitors in parallel.

Voltage tolerance includes set-up tolerance, line regulation and load regulation. Set-up time is measured at a cold first start; repeated ON/OFF operation may increase set-up time.

Apply all temperature, input-voltage, output and connector limits together. Integration, wiring and the final equipment's compliance must be checked for the intended installation.

MEAN WELL OWA-120E series: Moistureproof AC/DC Adapter - OWA-120E-54

Product form

MEAN WELL OWA-120E-54 supplies 54 V DC at 2.3 A, with a rated output of 124.2 W. This Class II,... Read more

$130.11 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    MEAN WELL OWA-120E-54 supplies 54 V DC at 2.3 A, with a rated output of 124.2 W. This Class II, fanless adapter uses a European AC plug and a standard XLR four-pin DC connector. Its fully potted power body is rated IP67; the DC connector is outside that rating. Observe the input and temperature derating limits.

    Product Datasheet

    Download MEAN WELL OWA-120E Datasheet (PDF)

    The OWA-120E section is on PDF pages 27, 28, 29, 30, 31. Refer to the complete mechanical drawings and notes when planning installation.

    Model and intended use

    Complete model OWA-120E-54
    Series / regional version OWA-120E; European plug version.
    Output code 54 identifies the nominal 54 V DC output.
    Intended applications General electronic devices, household equipment, robot lawn mowers and compatible charging-system applications.

    For battery-powered equipment, use a charging system compatible with this output. Battery chemistry, charging stages and charge termination must be provided by the equipment's charging control.

    Output performance

    Rated output voltage 54 V DC
    Rated output current 2.3 A
    Rated output power 124.2 W
    Ripple and noise 350 mVp-p maximum; measured with the test arrangement stated below.
    Voltage tolerance ±1.0%
    Line / load regulation ±0.5% / ±0.5%
    Set-up / rise time 500 / 80 ms at 95% load, 230 VAC.
    Hold-up time 16 ms typical at full load, 230 VAC.
    Typical efficiency 90.5% at 230 VAC.
    No-load consumption Less than 0.15 W; efficiency Level VI.

    Input and efficiency

    AC / DC input range 180–264 VAC / 254–370 VDC.
    AC frequency 47–63 Hz
    Power factor Active PFC; typical PF >0.96 at 230 VAC, full load.
    Typical AC current 0.65 A at 230 VAC.
    Typical inrush current Cold start: 60 A at 230 VAC; pulse width 520 µs measured at 50% of peak current.
    Leakage current <0.25 mA at 240 VAC.

    Protection

    Overload protection 105–115%; hiccup mode, automatic recovery after the fault is removed.
    Short-circuit protection Hiccup mode; automatic recovery after the fault is removed.
    Over-voltage protection 59–66 V; output shuts down. Re-power the supply to recover.
    Over-temperature protection Output shuts down. Re-power the supply to recover.

    Environment and derating

    Operating temperature / cooling −40 to +70°C, subject to derating; free-air convection with horizontal mounting.
    Ambient-temperature derating At horizontal mounting, the curve permits 100% load from −40 to 40°C, falling to 40% at 70°C.
    Input-voltage derating At 60 Hz: the static characteristic shows 100% load from 180 to 264 VAC. Apply temperature derating as well.
    Working humidity 20–95% RH, non-condensing.
    Storage −40 to +80°C; 10–95% RH.
    Temperature coefficient ±0.03%/°C over 0–40°C.
    Vibration 10–500 Hz, 5G, 12 minutes per cycle; 72 minutes on each X, Y and Z axis.

    Insulation, protection and compliance

    Electrical construction Class II, with no FG connection; fully potted silicone in a plastic enclosure.
    Body protection IP67 applies to the power body, excluding DC connectors. Use a connection assembly suitable for the installation environment.
    Withstand voltage Input to output: 3.75 kVAC.
    Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH.
    Catalogue-listed safety DEKRA EN61558-1 and EN61558-2-16; EAC TP TC 004. EN60335-1 is not included in the listed approval scope for the 48 V and 54 V versions.
    EMC emissions EN55032 (CISPR32) Class B; EN55014-1; EN61000-3-2 and EN61000-3-3; EAC TP TC 020.
    EMC immunity EN61000-4-2, -3, -4, -5, -6, -8 and -11; EN55014-2; EN55035; light-industry level, including 2 kV line-to-neutral surge; EAC TP TC 020.
    Energy-efficiency references Level VI and EU ErP requirements are listed for this series.

    Dimensions, leads and installation

    Body dimensions 191 × 63 × 37.5 mm (L × W × H); case PWM-120, general drawing tolerance ±1 mm.
    Mounting Horizontal mounting; two Ø4.5 mm mounting holes. Use the complete drawing for positions and clearances.
    AC connection European CEE 7/7 plug; H05RN-F 1.0 mm² × 2C; 1500±20 mm.
    DC lead H07RN-F 1.5 mm² × 2C; 300±20 mm.
    Standard DC connector XLR 4 pins; NEUTRIK NC4MX or equivalent.
    DC polarity / pin assignment Pins 1 and 2: +V; pins 3 and 4: −V.
    Catalogue packing reference per unit 1.15 kg (1150 g), as the per-unit PACKING reference; not a measured net weight or shipment weight.

    Check the connector view and pin numbering in the mechanical drawing before wiring. The marked Tcase point identifies the case-temperature measurement location. Keep the connection and installation conditions within the complete system's requirements.

    Optional factory DC connectors

    Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floating; pin 3: −V.
    XLR 3-pin NEUTRIK NC3MX or equivalent Pin 1: +V; pins 2 and 3: −V.
    CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V.
    CHOGORI 23002411-01 or equivalent Pin 1: +V; pin 2: −V.
    Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V.
    Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V.
    Tuning-fork barrel connector 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm length; centre positive, outer sleeve negative.

    These are alternative factory output configurations, not additional connectors supplied with the standard model. For this 54 V, 2.3 A supply, confirm that the selected complete connector and cable assembly supports the intended load voltage and current; connector shape or matching polarity alone does not establish full-load compatibility.

    Specify the connector, pin numbering and cable requirements when ordering. The optional barrel connector dimensions do not by themselves establish its current rating. The IP67 power-body rating does not extend to the DC connector.

    Reliability and measurement notes

    MTBF reference 2902.2 thousand hours minimum, Telcordia SR-332 (Bellcore); 294.4 thousand hours minimum, MIL-HDBK-217F at 25°C.
    Catalogue warranty The manufacturer's series datasheet lists a 5-year warranty; its terms and applicability govern.
    Catalogue version 2024-10-16

    Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient.

    Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with 0.1 µF and 47 µF capacitors in parallel.

    Voltage tolerance includes set-up tolerance, line regulation and load regulation. Set-up time is measured at a cold first start; repeated ON/OFF operation may increase set-up time.

    Apply all temperature, input-voltage, output and connector limits together. Integration, wiring and the final equipment's compliance must be checked for the intended installation.
