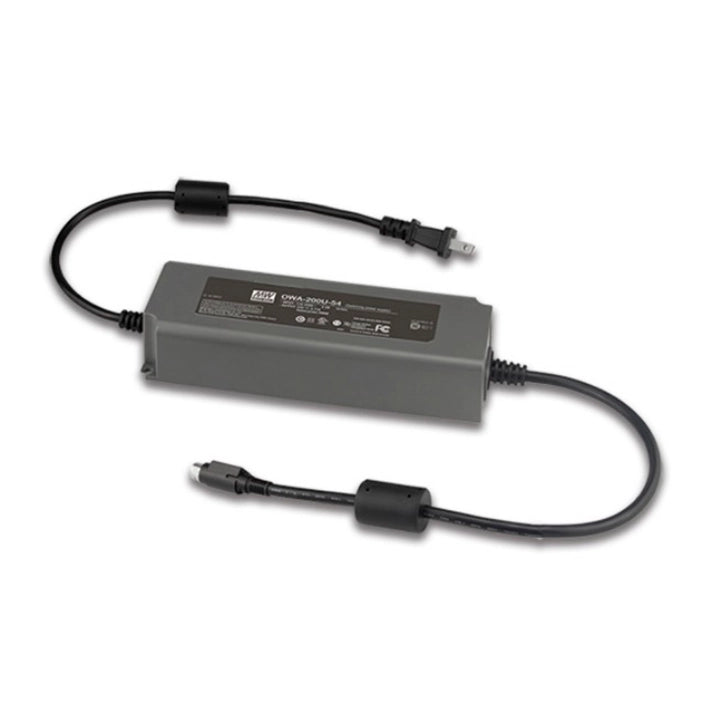

MEAN WELL OWA-200U-20 is a fanless Class II AC/DC power adapter with 20 VDC, 10 A rated current and 200 W rated output. It has a NEMA 1-15P AC plug and a standard R7B DC connector. The fully potted power body is IP67; input-voltage, temperature and connection limits apply.
Product Datasheet
Download MEAN WELL OWA-200U Datasheet (PDF)
The OWA-200U section is on PDF pages 32, 33, 34, 35, 36. Refer to the complete mechanical drawings and notes when planning installation.
Model and Configuration
| Complete order model |
OWA-200U-20. |
| Model code |
OWA-200U identifies the North American AC-plug version; the final 20 code identifies 20 VDC. |
| Power-supply construction |
Class II external AC/DC power supply without a functional-ground connection. The plastic enclosure is fully potted with silicone and cooled by free-air convection; no fan is used. The case material is rated 94V-0. |
| Mains connection |
NEMA 1-15P plug with attached SVT 18 AWG × 2 conductors input lead. The power unit has no FG; do not infer a Class I grounding arrangement from the plug shape. |
| Standard DC connection |
R7B (KYCON KPPX-4P equivalent), maximum 15 A connector rating. pin 1 = +Vo; pin 2 = −Vo; pin 3 = −Vo; pin 4 = +Vo. |
| Ingress protection |
IP67 applies to the power body. It does not establish the same rating for the AC plug, DC connector or completed connection. |
Output Ratings
| DC output voltage |
20 VDC. |
| Rated output current |
10 A. No-load operation is supported; keep the load within the rated current, power and applicable derating limits. |
| Rated output power |
200 W. Observe both the stated current and power limits. |
| Ripple and noise, maximum |
150 mVp-p under the specified measurement conditions. |
| Voltage tolerance |
±4.0%. |
| Line / load regulation |
±0.5% line; ±4.0% load. |
| Efficiency, typical |
92.5% at 230 VAC; 90% at 115 VAC. |
Input and Timing
| Input voltage / frequency |
100–264 VAC or 142–370 VDC; 47–63 Hz for AC input. |
| Power factor, typical |
Built-in active PFC; PF >0.97 at 115 VAC and >0.96 at 230 VAC, full load. |
| AC current, typical |
2.2 A at 115 VAC; 1.1 A at 230 VAC. |
| Cold-start inrush, typical |
90 A at 115 VAC, pulse width 300 µs measured at 50% of peak current; 180 A at 230 VAC, pulse width 450 µs measured at 50% of peak current. |
| Leakage current |
<0.125 mA at 120 VAC; <0.25 mA at 240 VAC. |
| Set-up / rise / hold-up |
500 ms set-up; 80 ms rise; 10 ms typical hold-up at full load. 230 VAC / 115 VAC. |
| No-load input power / efficiency level |
Less than 0.15 W; Level VI. EU ErP and CoC Version 5 compliance is listed for this series. |
Set-up time is measured at the first cold start. Repeated switching may increase the set-up time.
Protection
| Overcurrent |
105–150%; hiccup mode with automatic recovery after the fault condition is removed. |
| Short circuit |
Hiccup mode with automatic recovery after the fault condition is removed. |
| Overvoltage |
22–27 V threshold range; shuts down the output. Re-power the unit to recover. |
| Overtemperature |
Shuts down the output; re-power the unit to recover. |
Operating Conditions and Derating
| Working temperature |
−40 to +70°C, subject to the input-voltage and ambient-temperature curves. |
| Ambient-temperature curve |
Horizontal mounting, 230 VAC: 100% load through 45°C, decreasing to 50% at 70°C. At 110 VAC: 100% through 40°C, decreasing to 40% at 70°C. The shaded −40 to −25°C region is for 230 VAC input only. |
| Input-voltage curve |
At 60 Hz, 80% load at 100 VAC, rising to 100% at 110 VAC; 100% across 110–264 VAC. |
| Working humidity |
20–95% RH, non-condensing. |
| Storage conditions |
−40 to +80°C; 10–95% RH. |
| Temperature coefficient |
±0.03%/°C over 0–50°C. |
| Vibration |
10–500 Hz, 5 G; 12 minutes per cycle and 72 minutes each along the X, Y and Z axes. |
Apply the most restrictive current, power, temperature and input-voltage limits together. The maximum ambient temperature is not a full-power operating point.
The power-factor plot is a typical 200 W load characteristic. The efficiency-versus-load plot is specifically for the 48 V model at 115 VAC and 230 VAC. It is not a guaranteed efficiency curve for every output-voltage version.
Mechanical Details and Installation
| Body size |
195 × 68 × 39.5 mm (L × W × H); case PWM-200. Drawing dimensions use millimetres and a general ±1 mm tolerance. |
| Attached cable lengths |
AC input: 1500 ±20 mm; DC output: 1000 ±20 mm. |
| DC cable |
UL2464 16 AWG × 4 conductors. |
| Mounting holes |
Two Ø4.5 mm mounting holes. Follow the mechanical drawing for the 5 mm edge references and connector/strain-relief clearances. |
| Case-temperature reference |
The tc mark is located using the 97.5 mm and 34 mm drawing references. It identifies the case-temperature measuring point; no numeric tc limit is specified on this drawing. |
| Catalogue packing reference per unit |
1320 g (1.32 kg), from the manufacturer's PACKING entry; not a measured net or shipping-parcel weight. |
Mount the unit horizontally on its base as illustrated on PDF page 36. Allow space for the attached cables, connectors and free-air cooling.
The AC and DC cable assemblies are attached to the adapter. Keep the actual cable and connector arrangement suitable for the installation environment.
Optional DC Connections
| XLR4P |
NEUTRIK NC4MX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. |
| C6P |
MOLEX 39-01-2060 equivalent (4.2 mm pitch); maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = +Vo; pin 4 = −Vo; pin 5 = −Vo; pin 6 = −Vo. FG is not connected to the output connector. |
| MIC4 |
NEUTRIK XLR NC4FX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. |
| M19 |
LLT-M19-20002F307 equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo. |
| M15 |
DW-M15-02F equivalent; maximum 10 A. pin 1 = +Vo; pin 2 = −Vo. Listed only for 20 V, 24 V, 36 V, 48 V and 54 V versions. |
The standard connector for this model is R7B. The options above are the connector forms listed for this output-voltage version. Specify the required assembly before ordering; do not append unlisted connector suffixes to the model number.
Optional DC plug kits are sold separately. A connector rating does not increase the power-supply rating. Use the lower permitted current of the supply, connector and cable, and verify the mating contact numbers before connection.
IP67 is a power-body rating; select and protect the completed AC/DC connections for the actual environment.
Safety and EMC
| Listed safety approvals |
UL62368-1; IP67 for the power body. UL LISTED for dry and damp locations. UL1012 is stated as a design reference. |
| EMC emissions |
Compliance with FCC Part 15. |
| Dielectric withstand |
Input to output: 4.2 kVAC. |
| Insulation resistance |
Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. |
Class II construction has no functional-ground connection. Final equipment compliance and environmental protection depend on the complete installation.
Measurement Conditions and Reliability
| General test conditions |
Unless otherwise stated: 230 VAC input, rated load and 25°C ambient temperature. |
| Ripple/noise measurement |
20 MHz bandwidth; a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors in parallel. |
| Voltage tolerance definition |
Includes set-up tolerance, line regulation and load regulation. |
| MTBF, minimum |
2680.8 thousand hours, Telcordia SR-332 (Bellcore); 268.5 thousand hours, MIL-HDBK-217F at 25°C. |
| Internal switching frequencies |
PFC: 50–120 kHz; PWM: 60–130 kHz, as shown in the block diagram. |
| Manufacturer warranty |
5 years, subject to manufacturer warranty terms. |
| Catalogue revision |
2024-10-16; combined PDF pages 32–36. |
Applications and Selection
Application examples include industrial PCs, POS and kiosk systems, portable battery or electric-lawn-mower charging equipment, household devices, and electronic products used in dusty or humid environments.
For battery-charging applications, the manufacturer recommends a BMS controller. Confirm compatibility with the battery and charging system; the power adapter alone is not specified here as an autonomous battery-charge controller.
Select the exact North American input version, output voltage, load rating and connector required by the equipment.
