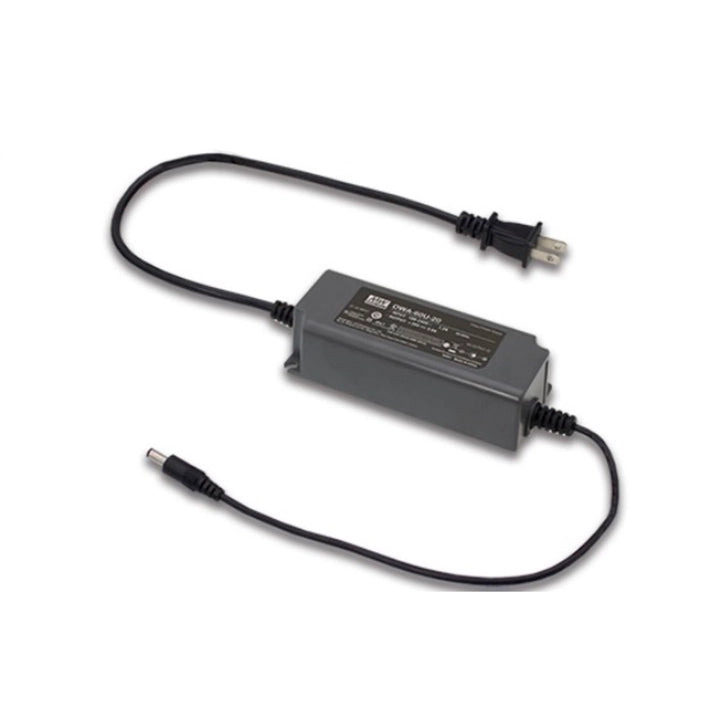

MEAN WELL OWA-60E series: Moistureproof AC/DC Power Adapter - OWA-60E-30

Description

MEAN WELL OWA-60E-30 is an OWA-60E series moistureproof AC/DC power adapter with a 30 V DC output rated at 2 A and 60 W. It provides a regulated DC output with hiccup overload protection. The fanless, silicone-potted Class II housing has an IP67 rating excluding the DC connector. Input-voltage and ambient-temperature derating apply.

Product Datasheet

Download MEAN WELL OWA-60E Datasheet (PDF)

The OWA-60E section is on PDF pages 6, 7, 8, 9, 10. Refer to the complete mechanical drawings and notes when planning installation.

Model-Specific DC Output

Complete model OWA-60E-30
Nominal DC output 30 V
Rated output current 2 A
Catalogue-rated output power 60 W
Ripple and noise, maximum 200 mVp-p; see measurement conditions.
Voltage tolerance ±3.0%, including set-up, line and load regulation.
Line regulation ±1.0%.
Load regulation ±1.0%.
Set-up / rise time 500 / 80 ms at 230 VAC; 1000 / 80 ms at 115 VAC, measured at 95% load.
Hold-up time, typical 10 ms at full load, at both 115 and 230 VAC.

Input and Efficiency

Input voltage / frequency 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz.
Efficiency, typical 90% at 230 VAC.
AC current, typical 1.2 A at 115 VAC; 0.7 A at 230 VAC.
Cold-start inrush, typical 65 A at 230 VAC; pulse width 750 µs measured at 50% of peak current.
Leakage current <0.25 mA at 240 VAC.
No-load consumption <0.15 W.

Protection

Overload 105–115%; hiccup mode, automatic recovery after fault removal.
Short circuit Hiccup mode; automatic recovery after fault removal.
Overvoltage 34–40 V; output shuts down. Re-power on to recover.
Overtemperature Output shuts down. Re-power on to recover.

Operating Conditions and Derating

Working ambient -35 to +70°C, subject to the horizontal-mounting derating curve.
Horizontal thermal derating The curve shows 100% load through 50°C, decreasing to 50% at 70°C. The -35 to −25°C portion is marked for 230 VAC input only.
Input-voltage derating At 60 Hz, the curve shows 80% load at 90 VAC and 100% from 100 to 264 VAC.
Cooling / recommended orientation Free-air convection without a fan. Install horizontally with the flat base supported, as shown in the installation drawing.
Working humidity 20–95% RH, non-condensing.
Storage temperature / humidity −40 to +80°C; 10–95% RH.
Temperature coefficient ±0.03%/°C over 0–50°C.
Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis.

Safety, EMC and Insulation

Catalogue safety listings EN 61558-1 and EN 61558-2-16; EAC TP TC 004. EN 60335-1 is also listed for this voltage version.
EMC emissions EN 55032 (CISPR 32) Class B; EN 55014-1; EN 61000-3-2 Class A; EN 61000-3-3; EAC TP TC 020.
EMC immunity EN 61000-4-2, -3, -4, -5, -6, -8 and -11; EN 55035; EN 55014-2, light-industry level; 2 kV line-to-neutral surge; EAC TP TC 020.
Energy-efficiency references Level VI; EU ErP is listed. EU CoC version 5 is also listed.
Insulation / grounding Class II design, without FG; input wiring has two conductors.
Ingress protection IP67 applies to the potted power-unit body; the DC connector is excluded.
Dielectric withstand Input to output: 3.75 kVAC.
Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH.

The listed standards and classifications apply to the adapter within the catalogue scope. Suitability and compliance of the assembled equipment depend on its installation and application.

Dimensions, Cables and Connections

Enclosure dimensions 130 × 53 × 35 mm (L × W × H), case OWA-60; drawing general tolerance ±1 mm.
Enclosure construction Silicone-potted plastic case.
Mounting holes Two Ø4.5 mm holes on diagonally opposed mounting tabs. The drawing places each hole center 5 mm from the adjacent tab edges.
AC input plug CEE 7/7, with the two-conductor input cable specified below.
AC input cable H05RN-F 1.0 mm² × 2C, 1500 ±50 mm.
Standard DC output connector Tuning-fork barrel connector, 2.1 mm inner diameter × 5.5 mm outer diameter × 11 ±0.5 mm length; center +V, outside −V.
Standard output cable H05RN-F 1.0 mm² × 2C, 300 ±20 mm.
Reference mass per unit 410 g, from the explicit single-unit PACKING value on catalogue page 7; not a measured net or shipping weight.

Connector Options and Ordering

Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floated; pin 3: −V.
NEUTRIK NC3MX or equivalent XLR 3-pin: pin 1 is +V; pins 2 and 3 are −V.
NEUTRIK NC4MX or equivalent XLR 4-pin: pins 1 and 2 are +V; pins 3 and 4 are −V.
CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V.
Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V.
Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V.

These are alternative output-connector configurations listed for this series, rather than a set of extra connectors included with the standard unit. Specify the required connector and obtain the applicable ordering details from MEAN WELL.

Measurement and Reliability Notes

Default measurement conditions Unless stated otherwise: 230 VAC input, rated load and 25°C ambient.
Ripple/noise measurement 20 MHz bandwidth, using a 12-inch twisted-pair lead terminated by 0.1 µF and 47 µF capacitors in parallel.
Start-up condition Set-up time is measured from a cold first start. Repeated power cycling may increase the set-up time.
MTBF, minimum calculated reference 4386.2 K hours under Telcordia SR-332 (Bellcore); 522.9 K hours under MIL-HDBK-217F at 25°C.
Catalogue warranty statement 5 years, as stated in the series catalogue.
Catalogue reference OWA-60E, revision 2024-10-16, physical pages 6–10 of the linked combined PDF.
