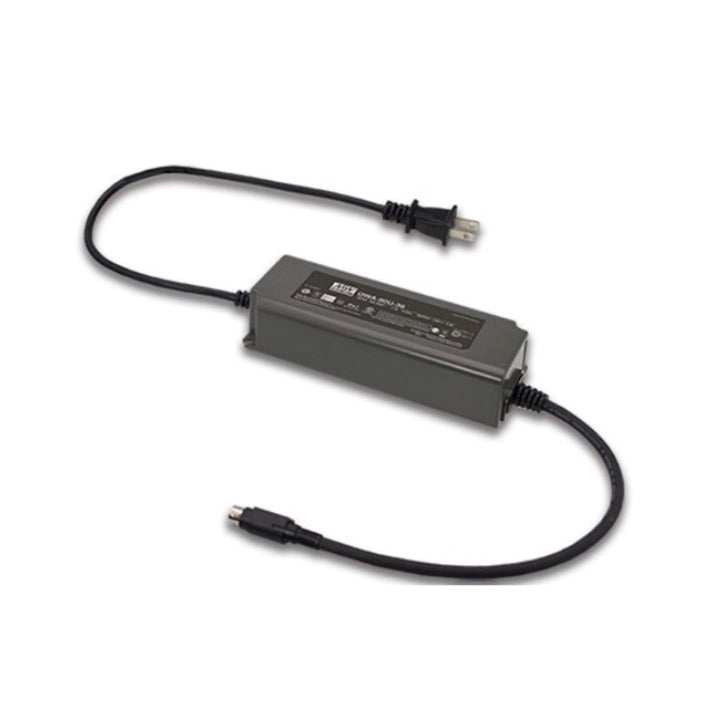

MEAN WELL OWA-90U series: Moistureproof LED Power Adapter - OWA-90U-20

Description

MEAN WELL OWA-90U-20 is an OWA-90U series moistureproof LED power adapter with a 20 V DC output rated at 4.5 A and 90 W. It provides constant-voltage and constant-current operating regions for compatible LED systems. The fanless, silicone-potted Class II housing has an IP67 rating excluding the DC connector. Input-voltage and ambient-temperature derating apply.

Product Datasheet

Download MEAN WELL OWA-90U Datasheet (PDF)

The OWA-90U section is on PDF pages 11, 12, 13, 14, 15, 16. Refer to the complete mechanical drawings and notes when planning installation.

Model-Specific DC Output

Complete model OWA-90U-20
Nominal DC output 20 V
Rated output current 4.5 A
Catalogue-rated output power 90 W
Ripple and noise, maximum 150 mVp-p; see measurement conditions.
Voltage tolerance ±4.0%, including set-up, line and load regulation.
Line regulation ±0.5%.
Load regulation ±0.5%.
Constant-current region 12–20 V, as specified for this complete model.
Set-up / rise time 500 / 80 ms at 230 VAC; 500 / 80 ms at 115 VAC, measured at 95% load.
Hold-up time, typical 16 ms at full load, at both 115 and 230 VAC.

For an LED module with its own DC/DC driver, the adapter normally operates in the constant-voltage region. Direct LED loading can use the specified 12–20 V constant-current region. Match the load and forward-voltage range to the complete system; operation below the constant-current region may enter hiccup protection.

The efficiency-versus-load curves in this family section use the 48 V model as their example. They are not an efficiency guarantee for every output voltage or load.

Input and Efficiency

Input voltage / frequency 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz.
Efficiency, typical 89% at 115 VAC; 90% at 230 VAC.
AC current, typical 0.95 A at 115 VAC; 0.5 A at 230 VAC.
Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC; pulse width 550 µs measured at 50% of peak current.
Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC.
No-load consumption <0.15 W.
Active PFC / typical power factor PF >0.98 at 115 VAC and >0.96 at 230 VAC, at full load.
Total harmonic distortion <20% at output loads of at least 60%, at 115 or 230 VAC.
16 A circuit breaker at 230 VAC Maximum 3 units on a type B breaker or 6 units on a type C breaker, as listed in this series catalogue.

Protection

Overcurrent 95–108%; constant-current limiting, automatic recovery after fault removal.
Short circuit Hiccup mode; automatic recovery after fault removal.
Overvoltage 23–27 V; output shuts down. Re-power on to recover.
Overtemperature Output shuts down. Re-power on to recover.

Operating Conditions and Derating

Working ambient -40 to +70°C, subject to the horizontal-mounting derating curve.
Horizontal thermal derating The curve shows 100% load through 50°C, decreasing to 50% at 70°C. The -40 to −25°C portion is marked for 230 VAC input only.
Input-voltage derating At 60 Hz, the curve shows 80% load at 90 VAC and 100% from 100 to 264 VAC.
Cooling / recommended orientation Free-air convection without a fan. Install horizontally with the flat base supported, as shown in the installation drawing.
Working humidity 20–95% RH, non-condensing.
Storage temperature / humidity −40 to +80°C; 10–95% RH.
Temperature coefficient ±0.03%/°C over 0–50°C.
Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis.
High-altitude ambient derating For fanless operation above 2000 m, reduce the allowable ambient temperature by 3.5°C per additional 1000 m, as stated in the catalogue note.

Safety, EMC and Insulation

Catalogue safety listings UL 8750 listed for dry and damp locations. CSA C22.2 No. 250.13-12 is also listed for this voltage version.
Class 2 power unit Listed as a Class 2 power unit in the applicable catalogue.
EMC emissions FCC Part 15, as listed in this catalogue.
Energy-efficiency references Level VI; EISA 2007 / US Department of Energy and NRCan requirements are listed in the catalogue.
Insulation / grounding Class II design, without FG; input wiring has two conductors.
Ingress protection IP67 applies to the potted power-unit body; the DC connector is excluded.
Dielectric withstand Input to output: 3.75 kVAC.
Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH.

The listed standards and classifications apply to the adapter within the catalogue scope. Suitability and compliance of the assembled equipment depend on its installation and application.

Dimensions, Cables and Connections

Enclosure dimensions 171 × 63 × 37.5 mm (L × W × H), case PWM-90P; drawing general tolerance ±1 mm.
Enclosure construction Silicone-potted plastic case; 94V-0 flame-retardant material is specified.
Mounting holes Two Ø4.5 mm holes on diagonally opposed mounting tabs. The drawing places each hole center 5 mm from the adjacent tab edges.
AC input plug NEMA 1-15P male.
AC input cable SVT 18 AWG × 2C, 1500 ±20 mm.
Standard DC output connector Locking power DIN 4-pin, KYCON KPPX-4P or equivalent: pins 1 and 4 are +V; pins 2 and 3 are −V.
Standard output cable UL2464 18 AWG × 4C, 300 ±20 mm.
Reference mass per unit 830 g, from the explicit single-unit PACKING value on catalogue page 12; not a measured net or shipping weight.

Connector Options and Ordering

Complete alternative model OWA-90U-20-P1M
P1M output connector Tuning-fork barrel, 2.5 mm inner diameter × 5.5 mm outer diameter × 11 mm length; center +V, outside −V.
P1M output cable UL2464 16 AWG × 2C, 300 ±20 mm.

The -P1M version is an alternative complete model for the catalogue-defined 20–54 V range. This product has the standard locking DIN 4-pin connector; the -P1M connector is not an extra connector supplied with it.

Measurement and Reliability Notes

Default measurement conditions Unless stated otherwise: 230 VAC input, rated load and 25°C ambient.
Ripple/noise measurement 20 MHz bandwidth, using a 12-inch twisted-pair lead terminated by 0.1 µF and 47 µF capacitors in parallel.
Start-up condition Set-up time is measured from a cold first start. Repeated power cycling may increase the set-up time.
MTBF, minimum calculated reference 3044.3 K hours under Telcordia SR-332 (Bellcore); 292.9 K hours under MIL-HDBK-217F at 25°C.
Catalogue warranty statement 5 years, as stated in the series catalogue.
Catalogue reference OWA-90U, revision 2024-10-16, physical pages 11–16 of the linked combined PDF.

MEAN WELL OWA-90U series: Moistureproof LED Power Adapter - OWA-90U-20

Product form

MEAN WELL OWA-90U-20 is an OWA-90U series moistureproof LED power adapter with a 20 V DC output rated at 4.5... Read more

$102.51 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    MEAN WELL OWA-90U-20 is an OWA-90U series moistureproof LED power adapter with a 20 V DC output rated at 4.5 A and 90 W. It provides constant-voltage and constant-current operating regions for compatible LED systems. The fanless, silicone-potted Class II housing has an IP67 rating excluding the DC connector. Input-voltage and ambient-temperature derating apply.

    Product Datasheet

    Download MEAN WELL OWA-90U Datasheet (PDF)

    The OWA-90U section is on PDF pages 11, 12, 13, 14, 15, 16. Refer to the complete mechanical drawings and notes when planning installation.

    Model-Specific DC Output

    Complete model OWA-90U-20
    Nominal DC output 20 V
    Rated output current 4.5 A
    Catalogue-rated output power 90 W
    Ripple and noise, maximum 150 mVp-p; see measurement conditions.
    Voltage tolerance ±4.0%, including set-up, line and load regulation.
    Line regulation ±0.5%.
    Load regulation ±0.5%.
    Constant-current region 12–20 V, as specified for this complete model.
    Set-up / rise time 500 / 80 ms at 230 VAC; 500 / 80 ms at 115 VAC, measured at 95% load.
    Hold-up time, typical 16 ms at full load, at both 115 and 230 VAC.

    For an LED module with its own DC/DC driver, the adapter normally operates in the constant-voltage region. Direct LED loading can use the specified 12–20 V constant-current region. Match the load and forward-voltage range to the complete system; operation below the constant-current region may enter hiccup protection.

    The efficiency-versus-load curves in this family section use the 48 V model as their example. They are not an efficiency guarantee for every output voltage or load.

    Input and Efficiency

    Input voltage / frequency 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz.
    Efficiency, typical 89% at 115 VAC; 90% at 230 VAC.
    AC current, typical 0.95 A at 115 VAC; 0.5 A at 230 VAC.
    Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC; pulse width 550 µs measured at 50% of peak current.
    Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC.
    No-load consumption <0.15 W.
    Active PFC / typical power factor PF >0.98 at 115 VAC and >0.96 at 230 VAC, at full load.
    Total harmonic distortion <20% at output loads of at least 60%, at 115 or 230 VAC.
    16 A circuit breaker at 230 VAC Maximum 3 units on a type B breaker or 6 units on a type C breaker, as listed in this series catalogue.

    Protection

    Overcurrent 95–108%; constant-current limiting, automatic recovery after fault removal.
    Short circuit Hiccup mode; automatic recovery after fault removal.
    Overvoltage 23–27 V; output shuts down. Re-power on to recover.
    Overtemperature Output shuts down. Re-power on to recover.

    Operating Conditions and Derating

    Working ambient -40 to +70°C, subject to the horizontal-mounting derating curve.
    Horizontal thermal derating The curve shows 100% load through 50°C, decreasing to 50% at 70°C. The -40 to −25°C portion is marked for 230 VAC input only.
    Input-voltage derating At 60 Hz, the curve shows 80% load at 90 VAC and 100% from 100 to 264 VAC.
    Cooling / recommended orientation Free-air convection without a fan. Install horizontally with the flat base supported, as shown in the installation drawing.
    Working humidity 20–95% RH, non-condensing.
    Storage temperature / humidity −40 to +80°C; 10–95% RH.
    Temperature coefficient ±0.03%/°C over 0–50°C.
    Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis.
    High-altitude ambient derating For fanless operation above 2000 m, reduce the allowable ambient temperature by 3.5°C per additional 1000 m, as stated in the catalogue note.

    Safety, EMC and Insulation

    Catalogue safety listings UL 8750 listed for dry and damp locations. CSA C22.2 No. 250.13-12 is also listed for this voltage version.
    Class 2 power unit Listed as a Class 2 power unit in the applicable catalogue.
    EMC emissions FCC Part 15, as listed in this catalogue.
    Energy-efficiency references Level VI; EISA 2007 / US Department of Energy and NRCan requirements are listed in the catalogue.
    Insulation / grounding Class II design, without FG; input wiring has two conductors.
    Ingress protection IP67 applies to the potted power-unit body; the DC connector is excluded.
    Dielectric withstand Input to output: 3.75 kVAC.
    Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH.

    The listed standards and classifications apply to the adapter within the catalogue scope. Suitability and compliance of the assembled equipment depend on its installation and application.

    Dimensions, Cables and Connections

    Enclosure dimensions 171 × 63 × 37.5 mm (L × W × H), case PWM-90P; drawing general tolerance ±1 mm.
    Enclosure construction Silicone-potted plastic case; 94V-0 flame-retardant material is specified.
    Mounting holes Two Ø4.5 mm holes on diagonally opposed mounting tabs. The drawing places each hole center 5 mm from the adjacent tab edges.
    AC input plug NEMA 1-15P male.
    AC input cable SVT 18 AWG × 2C, 1500 ±20 mm.
    Standard DC output connector Locking power DIN 4-pin, KYCON KPPX-4P or equivalent: pins 1 and 4 are +V; pins 2 and 3 are −V.
    Standard output cable UL2464 18 AWG × 4C, 300 ±20 mm.
    Reference mass per unit 830 g, from the explicit single-unit PACKING value on catalogue page 12; not a measured net or shipping weight.

    Connector Options and Ordering

    Complete alternative model OWA-90U-20-P1M
    P1M output connector Tuning-fork barrel, 2.5 mm inner diameter × 5.5 mm outer diameter × 11 mm length; center +V, outside −V.
    P1M output cable UL2464 16 AWG × 2C, 300 ±20 mm.

    The -P1M version is an alternative complete model for the catalogue-defined 20–54 V range. This product has the standard locking DIN 4-pin connector; the -P1M connector is not an extra connector supplied with it.

    Measurement and Reliability Notes

    Default measurement conditions Unless stated otherwise: 230 VAC input, rated load and 25°C ambient.
    Ripple/noise measurement 20 MHz bandwidth, using a 12-inch twisted-pair lead terminated by 0.1 µF and 47 µF capacitors in parallel.
    Start-up condition Set-up time is measured from a cold first start. Repeated power cycling may increase the set-up time.
    MTBF, minimum calculated reference 3044.3 K hours under Telcordia SR-332 (Bellcore); 292.9 K hours under MIL-HDBK-217F at 25°C.
    Catalogue warranty statement 5 years, as stated in the series catalogue.
    Catalogue reference OWA-90U, revision 2024-10-16, physical pages 11–16 of the linked combined PDF.
