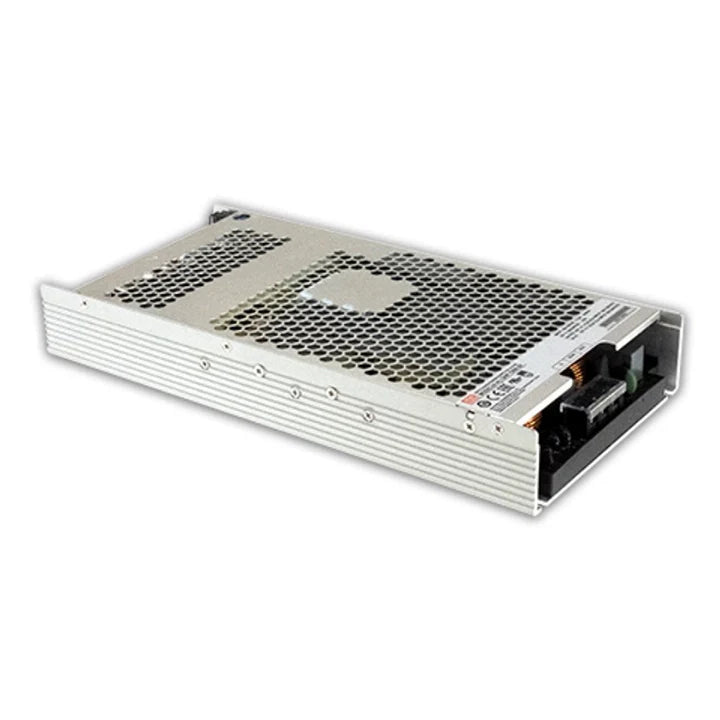

MEAN WELL PHP-3500 series: Conduction cooling power supply with PFC function - PHP-3500-230

Description

Rated power: 3500W Input voltage: 90 ~ 264VAC,127 ~ 370VDC Output voltage: 230V Output current: 0 ~ 15.2A Size (mm):380X141.4X60 Communication protocol: PMBus, standard

Product Features

1. Long strip fan-free design.

2. It has active PFC.

3. The output voltage and current value can be programmed.

4, can choose PMBus and CANBus communication protocol.

5. Built-in remote control switch/DC OK signal/auxiliary power output.

6. Protection type: short circuit/overload/overvoltage/overtemperature.

7. Optional water cooling plate heat dissipation device (PHP-3500HV).

8 and 5 years warranty.

MEAN WELL PHP-3500 series: Conduction cooling power supply with PFC function - PHP-3500-230

Product form

Rated power: 3500W Input voltage: 90 ~ 264VAC,127 ~ 370VDC Output voltage: 230V Output current: 0 ~ 15.2A Size (mm):380X141.4X60... Read more

$2,237.14 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Rated power: 3500W Input voltage: 90 ~ 264VAC,127 ~ 370VDC Output voltage: 230V Output current: 0 ~ 15.2A Size (mm):380X141.4X60 Communication protocol: PMBus, standard

    Product Features

    1. Long strip fan-free design.

    2. It has active PFC.

    3. The output voltage and current value can be programmed.

    4, can choose PMBus and CANBus communication protocol.

    5. Built-in remote control switch/DC OK signal/auxiliary power output.

    6. Protection type: short circuit/overload/overvoltage/overtemperature.

    7. Optional water cooling plate heat dissipation device (PHP-3500HV).

    8 and 5 years warranty.
