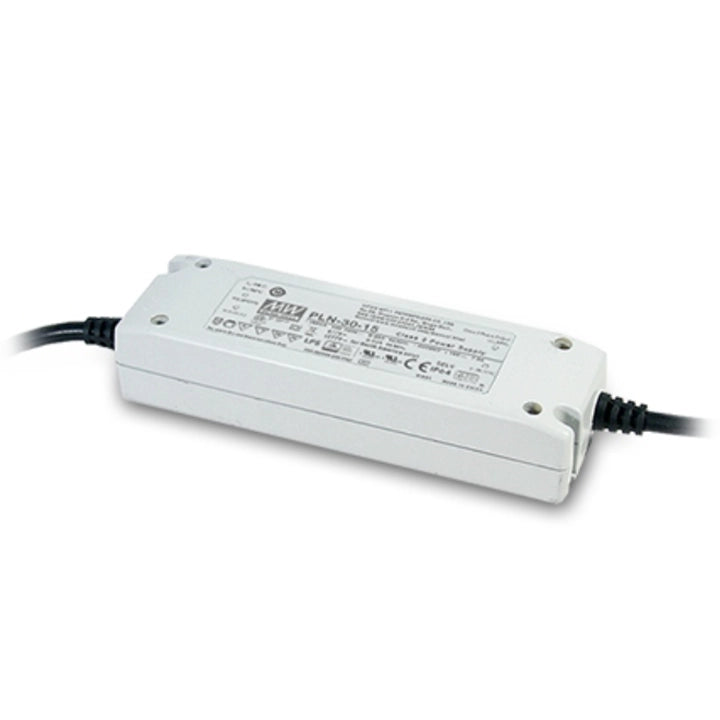

PLN-30-48 — Single-output LED power supply

MEAN WELL PLN-30-48 is a single-output power supply with a 48 V DC output, 0.63 A rated current and 30.24 W stated output power. It accepts 90–295 VAC or 127–417 VDC and uses active PFC, an IP64 fully isolated plastic case and free-air convection cooling.

Download MEAN WELL PLN-30 Datasheet (PDF)
Download MEAN WELL LED Installation Manual (PDF)
Download MEAN WELL EMI Testing Guidance (PDF)

PLN-30: PDF pages 4–6.

Output specifications and adjustment

Nominal output voltage	48 V DC.
Constant-current operating region	33.6–48 V DC.
Rated output current	0.63 A.
Rated output power	30.24 W.
Output current range	0–0.63 A.
Output voltage adjustment	−5% to +10% through internal potentiometer SVR1.
Output current adjustment	+3% to −25% through internal potentiometer SVR2.
Ripple and noise	3.7 Vp-p maximum. Measured with 20 MHz bandwidth and a 12-inch twisted-pair lead terminated with 0.1 µF and 47 µF capacitors in parallel.
Voltage tolerance	±10%; includes setup tolerance, line regulation and load regulation.
Line regulation	±3.0%.
Load regulation	±5.0%.
Setup and rise time	Setup: 500 ms at 230 VAC; 3000 ms at 115 VAC, at full load.

Input and efficiency

Input voltage	90–295 VAC or 127–417 VDC. Apply the low-input-voltage load curve.
Input frequency	47–63 Hz.
Power factor	Built-in active PFC. PF >0.95 at 115 VAC; PF >0.9 at 230 VAC and 277 VAC, typical at full load.
Total harmonic distortion	THD <20% when output loading is ≥75% at 115 VAC or 230 VAC and ≥80% at 277 VAC.
Efficiency	85.5% typical for this model.
Series performance reference	The PLN-30 series is described as reaching up to 85.5% efficiency. This series value does not replace this model’s typical efficiency. PDF page 6 shows efficiency-versus-load curves for the 48 V model at 115, 230 and 277 VAC, and power-factor curves in constant-current mode.
AC input current	0.4 A at 115 VAC; 0.2 A at 230 VAC; 0.15 A at 277 VAC. Typical values.
Inrush current	35 A typical cold start at 230 VAC; pulse width 25 µs measured at 50% of peak current.
Leakage current	<0.5 mA at 240 VAC.

LED load and application conditions

Load application	LED lighting and moving-sign applications.
LED drive method	Use the constant-current region for direct LED drive. Direct connection to LEDs is suggested; this supply is not suitable for use with additional drivers.
LED-system compatibility	The highest output voltage within the constant-current region depends on the configuration of the end system. Contact MEAN WELL if compatibility issues arise.
Switched-mains installation	To meet the stated ErP lighting-fixture requirements, use this supply behind a switch; do not leave it permanently connected to the mains.
China lighting application	The datasheet states that this product is not suitable for LED lighting applications in China and recommends the LPF, NPF, XLG, XLC or XLN series for those applications.

Protection and environment

Overcurrent protection	100–110% as stated in the protection table. Constant-current limiting; automatic recovery after the fault condition is removed.
Short-circuit protection	Hiccup mode; automatic recovery after the fault condition is removed.
Overvoltage protection	53–63 V. Output shuts down; cycle power to recover.
Overtemperature protection	Output shuts down; cycle power to recover.
Cooling	Free-air convection.
Working temperature	−30 to +50°C, with the specified load derating.
Ambient-temperature load curve	Horizontal mounting: 100% load from −30 to +40°C, reducing along the curve to 60% at +50°C.
Input-voltage load curve	At 60 Hz, the static-characteristic curve shows 80% load at 90 VAC and 100% load from 100 to 295 VAC. Apply temperature and input-voltage limits together.
High-altitude derating	For this fanless supply, reduce the allowable ambient temperature by 3.5°C per 1000 m above 2000 m altitude.
Working humidity	20–95% RH, non-condensing.
Storage conditions	−40 to +80°C; 10–95% RH.
Temperature coefficient	±0.06%/°C over 0–50°C.
Vibration	10–500 Hz, 2 G, 12 minutes per cycle, for 72 minutes along each of the X, Y and Z axes.

Safety, EMC and reliability

Power-unit classification	SELV; Class II power unit with no FG connection; LPS and Class 2 power unit.
Safety standards and model scope	UL879 and UL1310; TUV BS EN/EN61347-1 and -2-13; EAC TP TC 004; IP64 approved. The 48 V model is excluded from CSA C22.2 No. 207-M89 and uses the US-only UL recognition marking shown in the datasheet.
Withstand voltage	Input to output: 3.75 kVAC.
Isolation resistance	Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH.
EMC emission	BS EN/EN55015; BS EN/EN61000-3-2 Class C at input power Pin ≥25 W and Class D at >70% load; BS EN/EN61000-3-3; EAC TP TC 020.
EMC immunity	BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55024; BS EN/EN61547; light-industry level, criteria B; EAC TP TC 020.
Quality and reliability design	100% full-load burn-in testing; high-reliability design.
MTBF	Minimum 4296.9 thousand hours by Telcordia SR-332 (Bellcore); minimum 621.4 thousand hours by MIL-HDBK-217F at 25°C.
Manufacturer warranty	2 years.

Construction, wiring and dimensions

Construction	Fully isolated plastic case with IP64 design. Compact construction; Class II, no FG.
Dimensions	145 × 47 × 30 mm (L × W × H). Case No. 964A; drawing units are millimetres with general tolerance ±1 mm.
Mounting drawing	Two open mounting features marked R2.25 mm, with 4.38 mm horizontal edge offsets and 9.83 mm vertical edge offsets.
Case-temperature measurement point	The marked Tcase point is 61 mm from the right-hand end and 23.5 mm from the upper edge in the plan view. These numbers locate the measurement point; they are not a numeric case-temperature rating.
AC input cable	SVT 18 AWG × 2 cores, 320 ±20 mm long. Brown = AC/L; blue = AC/N. No FG conductor.
DC output cable	SVT 18 AWG × 2 cores, 320 ±20 mm long. Red = +V; black = −V.
Adjustment access	The drawing shows SVR1 for output voltage and SVR2 for output current under the upper case. Any manufacturer-permitted case opening and adjustment must be performed by qualified personnel, with power disconnected and the installation/manual requirements observed.
Switching-frequency reference	39 kHz at 115 VAC; 53 kHz at 230 VAC. Values shown in the block diagram.
Packing and weight	220 g, catalog packing reference per unit; not a measured net-weight claim. Outer packing: 60 pieces, 14.2 kg, 1.25 CUFT.
General test conditions	Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient temperature.

Installation and system guidance

Installation isolation and service	Disconnect the supply from the mains before installation or maintenance and prevent unintended reconnection. Have faults examined by a qualified technician; do not open the case yourself. Any adjustment requiring case removal must be performed by qualified personnel with mains disconnected, following the model drawing and safe reassembly requirements. Dispose of the LED supply together with the lighting equipment at end of life.
Ventilation and mechanical support	Keep ventilation clear and do not stack objects on the unit. Maintain 10–15 cm clearance when an adjacent device is a heat source. Follow this model’s mounting orientation and derating diagrams. Check the mounting surface and luminaire structural strength; use safety cables for bay lighting applications. For IP64 units, use indoors or outdoors only where sheltered from rain. Do not immerse the unit in water.
Wiring and system enclosure	Use approved input and output wiring with current ratings at least equal to the applicable unit current. Follow this model’s terminal assignments. This Class II ungrounded supply has no FG connection. Provide insulation around system interconnections and enclose single-insulated wiring. Keep output current and power within the model ratings and temperature limits. Have damaged external flexible cables replaced by the manufacturer, its service agent or similarly qualified personnel.
Circuit-breaker reference	At 230 V AC, the installation manual gives calculated maximum quantities for PLN-30 with ABB S200-series breakers: B10 40, B16 64, C10 40, C16 64, D10 40 and D16 64. B, C and D identify breaker trip curves; 10 and 16 identify ampere ratings. These counts apply to that stated breaker and voltage reference.
EMC integration	Reverify EMC in the finished equipment with the connected load and actual wiring and assembly. The linked guidance describes representative component-power-supply tests; its illustrated distances are test arrangements, not installation clearances.
