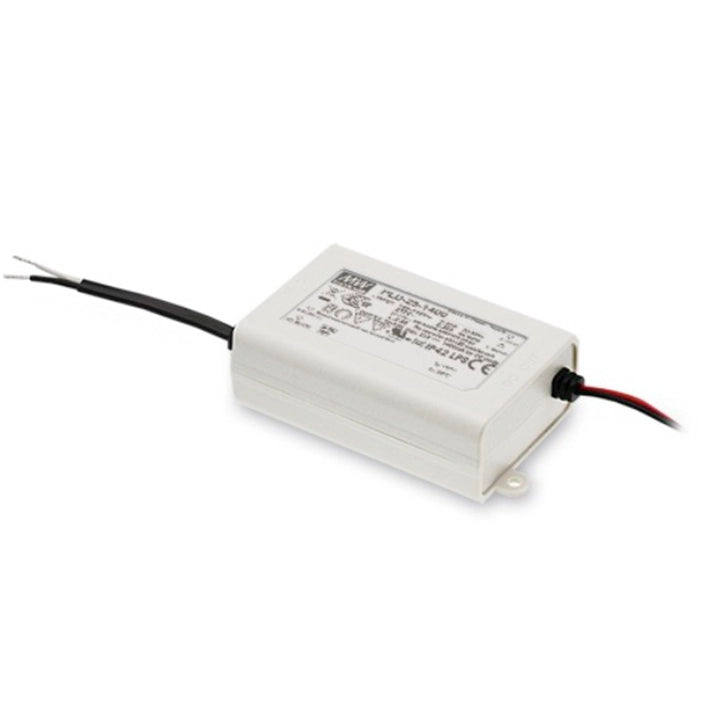

MEAN WELL PLD series: LED switching power supply - PLD-25-1050

Description

Rated output current: 1050mA Output working voltage range: 16~24V Output current accuracy: ± 5% Output power rating: 25.2W Maximum output voltage at no load: 35V Input voltage: 90 ~ 295VAC,127 ~ 417VDC Size (mm):84X57X29.5

Click to download Airtac product catalog

Product Features

1. Constant current mode output.

2. AC phase dimming (PCD only).

3. Use the leading edge and trailing edge dimming modes (PCD only).

4. With active PFC function.

5. Full protective plastic shell, IP42 design.

6. Class 2 power supply, via LPS(16W and 25W).

7. Class II power supply, no FG.

8. Protection type: short circuit/over temperature; 3 years warranty.

MEAN WELL PLD series: LED switching power supply - PLD-25-1050

Product form

Rated output current: 1050mA Output working voltage range: 16~24V Output current accuracy: ± 5% Output power rating: 25.2W Maximum output... Read more

$34.29 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Rated output current: 1050mA Output working voltage range: 16~24V Output current accuracy: ± 5% Output power rating: 25.2W Maximum output voltage at no load: 35V Input voltage: 90 ~ 295VAC,127 ~ 417VDC Size (mm):84X57X29.5

    Click to download Airtac product catalog

    Product Features

    1. Constant current mode output.

    2. AC phase dimming (PCD only).

    3. Use the leading edge and trailing edge dimming modes (PCD only).

    4. With active PFC function.

    5. Full protective plastic shell, IP42 design.

    6. Class 2 power supply, via LPS(16W and 25W).

    7. Class II power supply, no FG.

    8. Protection type: short circuit/over temperature; 3 years warranty.
