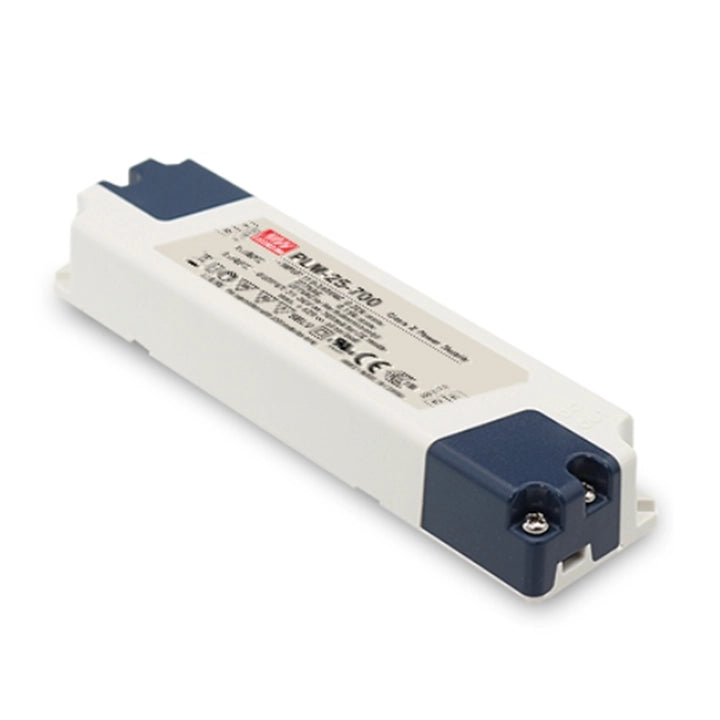

PLM-25-700 — Constant-current LED power supply

MEAN WELL PLM-25-700 is a single-output constant-current LED power supply rated at 0.7 A (700 mA), with a 21–36 V DC operating region and 25.2 W rated output. It accepts 110–295 VAC or 156–417 VDC and combines active PFC with a fully isolated plastic case and free-air convection cooling.

Download MEAN WELL PLM-25 Datasheet (PDF)
Download MEAN WELL LED Installation Manual (PDF)
Download MEAN WELL EMI Testing Guidance (PDF)

PLM-25: PDF pages 5–8.

Output and load selection

Output mode	Single-output constant-current design.
Constant-current operating region	21–36 V DC. Use this model-specific region for LED load selection.
Rated output current	0.7 A (700 mA).
Rated output power	25.2 W.
No-load output voltage	42 V maximum.
Ripple and noise	3.6 Vp-p maximum. Measured with 20 MHz bandwidth and a 12-inch twisted-pair lead terminated with 0.1 µF and 47 µF capacitors in parallel.
Current accuracy	±5.0%; also observe the AC-input-drop response below.
Setup time	500 ms at 115 VAC or 230 VAC, at full load.
Load application	Indoor LED lighting, including office, commercial and decorative lighting. Direct connection to LEDs is suggested; the supply is not suitable for use with additional drivers. Confirm any special electrical requirements of the final system.
Constant-current selection note	The datasheet describes the constant-current region generally as 60–100% of rated output voltage; use the explicit model-specific operating region above when selecting the LED string.

Input and efficiency

Input voltage	110–295 VAC or 156–417 VDC.
Input frequency	47–63 Hz.
Power factor	Built-in active PFC. At full load: PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and >0.9 at 277 VAC.
Total harmonic distortion	THD <20% with output loading ≥60% at 115 VAC or 230 VAC, and ≥75% at 277 VAC.
Efficiency	86% typical for this model.
AC input current	0.3 A at 115 VAC; 0.15 A at 230 VAC; 0.12 A at 277 VAC.
Inrush current	15 A typical cold start at 230 VAC; pulse width 50 µs measured at 50% of peak current.
Leakage current	0.25 mA at 240 VAC.
No-load consumption	Less than 0.5 W.
AC voltage-drop response	AC input drops of 10%, 8%, 5% and 3% correspond to output-current drops of <16%, <12%, <8% and <7%, respectively. Output current returns to the rated value within 50 ms.
Performance-curve scope	The PLM-25 constant-current power-factor curves show 60–100% load at 110, 230 and 277 VAC. The efficiency-versus-load graph on PDF page 8 applies specifically to the 500 mA model; use the typical efficiency specified above for this model.

Protection and environment

Short-circuit protection	Hiccup mode; automatic recovery after the fault condition is removed.
Cooling	Free-air convection.
Working temperature	−30 to +45°C.
Ambient-temperature load curve	The horizontal-mounting curve permits 100% load from −30 to +45°C. The stated operating range ends at +45°C.
Input-voltage load curve	The static-characteristic curve shows 100% load across 110–295 VAC. Apply the stated operating-temperature and load limits together.
Working humidity	20–90% RH, non-condensing.
Storage conditions	−40 to +80°C; 10–95% RH.
Temperature coefficient	±0.06%/°C over 0–50°C; this characterization interval does not extend the stated operating-temperature range.
Vibration	10–500 Hz, 2 G, 10 minutes per cycle, for 60 minutes along each of the X, Y and Z axes.

Safety, EMC and reliability

Power-unit classification	Class II power unit with no FG terminal; SELV; IP30. Class 2 power unit.
Safety standards	UL8750; CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 and BS EN/EN62384; EAC TP TC 004; IP30 approved, as stated in the datasheet.
Optional CCC configuration	CCC-certified versions to GB/T19510.1, GB/T19510.213, GB/T17743 and GB17625.1 are optional; contact MEAN WELL to confirm the required supplied configuration.
Withstand voltage	Input to output: 3.75 kVAC.
Isolation resistance	Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH.
EMC emission	BS EN/EN55015; BS EN/EN61000-3-2 Class C at ≥60% load; BS EN/EN61000-3-3; EAC TP TC 020.
EMC immunity	BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547, light-industry level, criteria B (2 kV surge); EAC TP TC 020.
Reliability	Minimum MTBF: 7905.4 thousand hours by Telcordia SR-332 (Bellcore), and 608.9 thousand hours by MIL-HDBK-217F at 25°C.
Series design	The manufacturer describes this as an economical, high-reliability series for LED lighting and states compliance with the ErP requirements for lighting fixtures.
Manufacturer warranty	2 years.

Construction, terminals and dimensions

Construction	Fully isolated plastic case, with UL 94V-0-rated flame-retardant material and screwless clamp-style terminal-block input and output.
Dimensions	145 × 38 × 22 mm (L × W × H). Mechanical drawing: Case No. PLM-25; general tolerance ±1 mm.
Mounting drawing	The two diagonal open mounting features are marked Ø3.5 mm, with 4.5 mm edge-position references. The side view also marks a 3.5 mm local base/flange dimension; follow the dimensioned drawing for installation.
Case-temperature measurement point	The marked Tc point is 65 mm from the right-hand end and 12 mm from the lower edge in the plan view. These are location dimensions, not temperature ratings.
AC input terminal block	TB1: SWITCHLAB MWX201-75002EB (gray). Pin 1 = AC/L; pin 2 = AC/N.
DC output terminal block	TB2: SWITCHLAB MWX201-75002B (blue). Pin 1 = +V; pin 2 = −V.
Recommended wiring	The mechanical drawing suggests UL1015 18 AWG × 2-core wire for both the input and output connections.
Accessory scope	The series datasheet specifies the terminal blocks and recommended wiring, but gives no separate MEAN WELL accessory ordering code. The recommended wire specification is not a claim that cables are included.
Packing and weight	126 g (0.126 kg), catalog packing reference per unit; not a measured net-weight claim. Outer packing: 60 pieces, 8.6 kg, 0.48 CUFT.
General test conditions	Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient temperature.

Installation and system guidance

Installation isolation and service	Disconnect the supply from the mains before installation or maintenance and prevent unintended reconnection. Have faults examined by a qualified technician; do not open the case yourself. Dispose of the LED supply together with the lighting equipment at end of life.
Ventilation and mechanical support	Keep ventilation clear and do not stack objects on the unit. Maintain 10–15 cm clearance when an adjacent device is a heat source. Follow this model’s mounting orientation and derating diagrams. Check the mounting surface and luminaire structural strength; use safety cables for bay lighting applications. Do not immerse the unit in water.
Wiring and system enclosure	Use approved input and output wiring with current ratings at least equal to the applicable unit current. Follow this model’s terminal assignments. This Class II ungrounded power supply has no FG terminal. Provide insulation around system interconnections and enclose single-insulated wiring. Keep output current and power within the model ratings and temperature limits. Have damaged external flexible cables replaced by the manufacturer, its service agent or similarly qualified personnel.
Circuit-breaker reference	At 230 V AC, the installation manual gives calculated maximum quantities for PLM-25 with ABB S200-series breakers: B10 50, B16 80, C10 50, C16 80, D10 50 and D16 80. B, C and D identify breaker trip curves; 10 and 16 identify ampere ratings. These counts apply to that stated breaker and voltage reference.
EMC integration	Reverify EMC in the finished equipment with the connected load and actual wiring and assembly. The linked guidance describes representative component-power-supply tests; its illustrated distances are test arrangements, not installation clearances.
