MEAN WELL PPT-125 series: Triple-Output Open-Frame AC/DC Power Supply - PPT-125C

Description

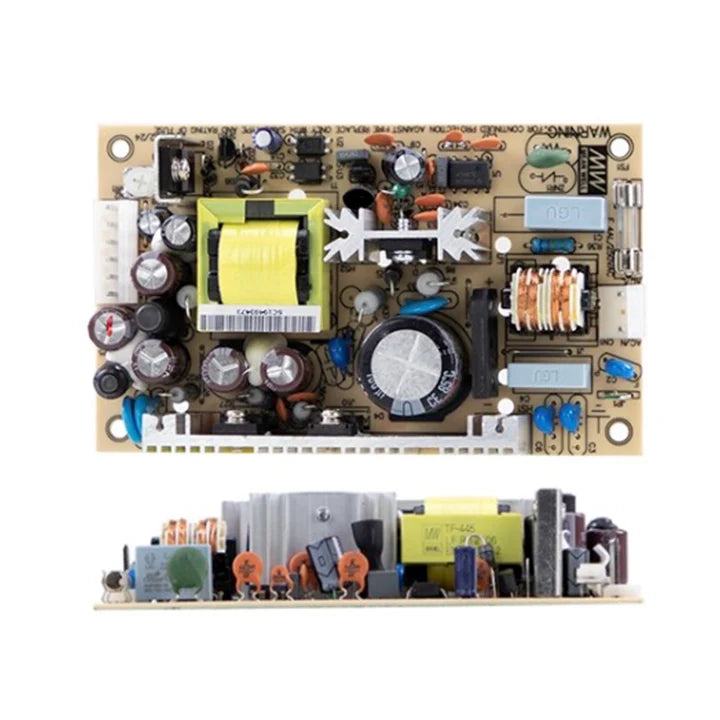

MEAN WELL PPT-125C is an open-frame AC/DC power supply with three outputs: +5 V, +15 V, −15 V. Its combined output rating is 100 W with natural convection or 125.15 W with 18 CFM forced airflow, subject to the individual current ranges and derating limits.

Product Datasheet

Download MEAN WELL PPT-125 Datasheet (PDF)

The PPT-125 section is on PDF pages 10, 11. Refer to the complete mechanical drawings and notes when planning installation.

Model and Selection

Complete model PPT-125C.
Series and format PPT-125 triple-output, 5-inch × 3-inch open-frame power supply.
Power conversion Built-in active PFC; PWM control and regulation.
Output arrangement CH1, CH2 and CH3 are the three rails of one complete power supply and share the GND terminals.
Natural-convection combined rating 100 W.
18 CFM combined rating 125.15 W.
Power-on indication LED indicator; LED1 is marked in the mechanical drawing.
Factory test 100% full-load burn-in.

Observe all three channel minimum loads, their cooling-dependent current limits and the combined-power limit together. Do not add the individual maximum current ratings into an unrestricted system-power rating.

CH1 Output

Nominal output +5 VDC relative to GND.
Rated current 11 A.
Natural-convection current range 1–11 A.
18 CFM current range 1–13.75 A.
Ripple and noise, maximum 100 mVp-p.
Voltage tolerance ±3.0%.
Line regulation ±0.5%.
Load regulation ±3.0%.
Voltage adjustment 4.75–5.25 V on CH1, using SVR1.

CH2 Output

Nominal output +15 VDC relative to GND.
Rated current 2.5 A.
Natural-convection current range 0.25–2.5 A.
18 CFM current range 0.25–3.13 A.
Ripple and noise, maximum 150 mVp-p.
Voltage tolerance ±5.0%.
Line regulation ±0.5%.
Load regulation ±3.0%.

CH3 Output

Nominal output −15 VDC relative to GND.
Rated current 0.5 A.
Natural-convection current range 0.05–0.5 A.
18 CFM current range 0.05–0.63 A.
Ripple and noise, maximum 150 mVp-p.
Voltage tolerance ±6.0%.
Line regulation ±0.5%.
Load regulation ±5.0%.

Output Conditions

Efficiency, typical 78%.
Tolerance definition Includes set-up tolerance, line regulation and load regulation.

Unless otherwise stated, parameters are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise are measured with 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Maintain the specified minimum load on every channel.

Input and Timing

AC input 90–264 VAC; 47–63 Hz.
DC input 127–370 VDC.
Power factor, typical PF >0.93 at 230 VAC and >0.98 at 115 VAC, at full load.
AC current, typical 1.7 A at 115 VAC; 0.75 A at 230 VAC.
Cold-start inrush, typical 24 A at 230 VAC.
Leakage current <2 mA at 240 VAC.
Set-up / rise time 1000 ms / 30 ms at 230 VAC; 2000 ms / 30 ms at 115 VAC, at full load.
Hold-up time, typical 24 ms at 230 VAC and 24 ms at 115 VAC, at full load.
Switching frequency 100 kHz.

Protection

Short circuit / overload 130–160% of rated output power; foldback current limiting, with automatic recovery after the fault is removed.
CH1 overvoltage 5.75–6.75 V; hiccup mode, with automatic recovery after the fault is removed.

Cooling and Environment

Working ambient −20 to +70°C, subject to the applicable horizontal-installation derating curve.
Natural-convection temperature curve 100% of the natural-convection reference through 30°C, decreasing to 70% at 50°C and 40% at 60°C. This curve ends at 60°C.
18 CFM temperature curve The graph shows a 125% load reference through 50°C, decreasing to 50% at 70°C. Apply this plotted reference together with the separate model-specific 18 CFM current and combined-power ratings.
Input-voltage curve The 60 Hz graph rises from 80% at 85 VAC to 100% at 100 VAC and stays at 100% through 264 VAC. Operate within the specified 90–264 VAC range; the 85 VAC graph point does not extend the input rating.
Altitude derating Above 2000 m, reduce allowable ambient by 3.5°C per 1000 m for fanless cooling, or by 5°C per 1000 m with fan cooling.
Working humidity 20–90% RH, non-condensing.
Storage −40 to +85°C; 10–95% RH.
Temperature coefficient ±0.05%/°C over 0–50°C.
Vibration 10–500 Hz, 2 G; 10 minutes per cycle, for 60 minutes along each X, Y and Z axis.

Apply input-voltage and ambient-temperature derating together. Provide the specified airflow for forced-air operation, following the airflow direction shown in the mechanical drawing. The fan and its mounting hardware are not stated as included.

Dimensions and Installation

Dimensions, L × W × H 127 × 76.2 × 34.6 mm.
Board format 5-inch × 3-inch format; the series feature list quotes 6.117 W/in³ power density.
Mounting holes Four Ø3.5 mm holes; 115.6 × 64.8 mm center spans. The drawing marks a 5 mm left offset and 6.4 mm top offset. General tolerance ±1 mm.
Underside clearance Allow for the 3 mm maximum underside projection shown in the drawing.
Safety grounding M1 is safety ground. Electrically connect M1 and M2 to chassis ground for EMC performance.
Heat-sink separation HS1, HS2 and HS3 must not be shorted together.
Fitted AC fuse FS1: T2A/250VAC.
Adjustment and indication SVR1 adjusts CH1; LED1 indicates power on.

Use the complete mechanical drawing for mounting, connector orientation and airflow. Install this component power supply in suitable final equipment.

Connections and Mating Parts

AC input CN1 JST B3P-VH or equivalent: pin 1 AC/L; pin 2 no pin; pin 3 AC/N.
DC output CN4 The catalogue specifies JST B5P-VH × 2 or equivalent, with positions numbered 1–10: pin 1 CH3 (−15 V); pins 2 and 3 CH2 (+15 V); pins 4–8 GND; pins 9 and 10 CH1 (+5 V).
Mating housings JST VHR family or equivalent; select the complete housing reference for the shown connector arrangement and circuit count.
Mating contacts JST SVH-21T-P1.1 or equivalent.

Maintain the indicated rail polarities, including any negative CH3 output. Use the complete pin-numbered drawing when assembling the mating connectors. Loose housings, contacts and mounting hardware are not stated as included.

Safety and EMC

Safety approvals UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1 and EAC TP TC004 approved; the cover also identifies IEC62368-1 CB certification.
Withstand voltage Input/output 3 kVAC; input/FG 2 kVAC; output/FG 0.5 kVAC.
Insulation resistance Input/output, input/FG and output/FG: 100 MΩ at 500 VDC, 25°C and 70% RH.
Emissions BS EN/EN55032 (CISPR32) Class B; BS EN/EN61000-3-2 and -3; EAC TP TC020.
Immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC020.

EMC tests use a 360 × 360 mm metal plate, 1 mm thick. Reconfirm compliance in the completed equipment with its actual wiring and mounting; component approvals do not certify the complete system.

Weight and Reliability

Single-unit catalogue reference weight 370 g from the explicit per-unit PACKING value; a catalogue reference rather than measured net or shipping weight.
Packing reference 0.37 kg per unit; 36 pieces / 14.3 kg / 0.96 CUFT.
MTBF, minimum estimates 2173.4 thousand hours, Telcordia SR-332 (Bellcore); 269.9 thousand hours, MIL-HDBK-217F at 25°C.
Manufacturer warranty 3-year manufacturer warranty, subject to applicable terms.
Catalogue revision PPT-125-SPEC, 2024-10-30; PDF pages 10–11.
