Description

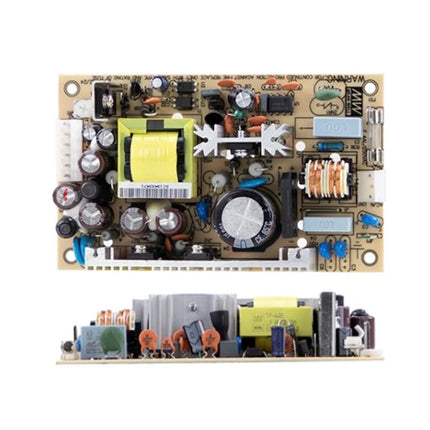

5 "X3" 3 group output Output channel: CH2 Output voltage: 24V Rated output current: 2.5A Output current range (natural cooling):0.25 ~ 2.5A Output current range (18CFM fan air cooling):0.25 ~ 3.13A Output power rating (natural cooling):101W Output power rating (18CFM fan air cooling):126.43W Input voltage: 90 ~ 264VAC or 127 ~ 370VDC Size (mm):127X76.2X34.6
Product Features
1. International universal full range input: 90 ~ 264VAC.
2. Built-in active PFC(PPT-125).
3. Optional L-shaped bracket and casing (RPT-65 series).
4. Leakage current <1mA(RPT-65 series).
5. PWM control adjustment (PPT-125).
6. Protection type: short circuit/overload/over temperature (except RPT series)/over voltage (except PT series).
7, 2 years warranty.
8, 3 years warranty (PPT-125).
