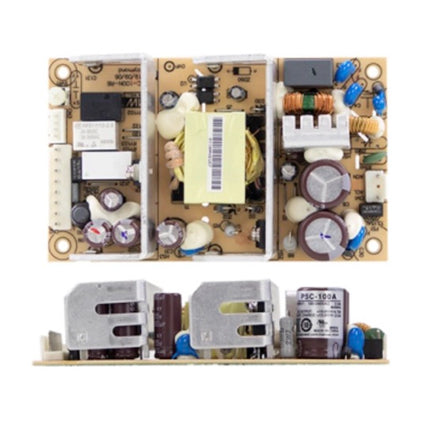

Output channel: CH1 (main source) Output voltage: 13.8V Output rated current: 4.75A Output current range: 0 ~ 7A Output power rating: 100.05W Output voltage adjustment range: CH1:12~15V Input voltage: 90 ~ 264VAC,127 ~ 370VDC Light plate type Size (mm):127X76.2X31
Product Features
1. International universal full range input: 90 ~ 264VAC.
2. Single output built-in battery charging control, can be external battery form UPS function.
3. PCB type (PSC) and chassis type (PSC-C) are available.
4. Small size, protection type: short circuit/overload/over temperature.
5. Battery low voltage protection/battery is protected by fuse reverse polarity.
6. AC OK and battery reverse low voltage alarm.
7. No fan design, natural air cooling,-30 ~ +70 ℃ wide temperature work.
8, 2 years warranty.
