Description
Output channel: CH1 (main source) Output voltage: 27.6V Output rated current: 0.85A Output current range: 0 ~ 1.3A Output power rating: 35.88W Output voltage adjustment range: CH1:24~29V Input voltage: 90 ~ 264VAC,127 ~ 370VDC Closed Size (mm):86.4X59.6X30
Product Features
1. International universal full range input: 90 ~ 264VAC.
2. Single output built-in battery charging control, can be external battery form UPS function.

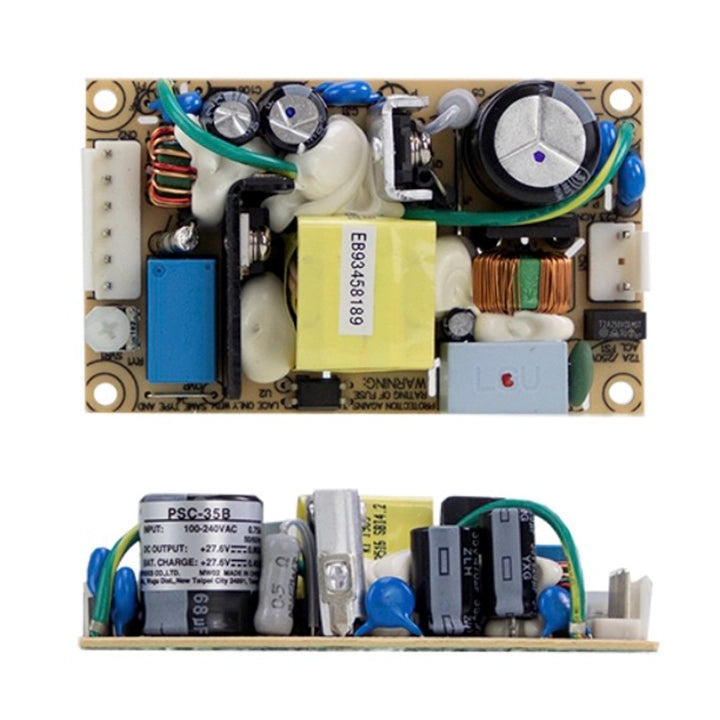

3. PCB type (PSC) and chassis type (PSC-C) are available.
4. Small size, protection type: short circuit/overload/over temperature.
5. Battery low voltage protection/battery is protected by fuse reverse polarity.
6. AC OK and battery reverse low voltage alarm.
7. No fan design, natural air cooling,-30 ~ +70 ℃ wide temperature work.
8, 2 years warranty.
