PSD-15C-24 — Single-output DC/DC switching power supply

MEAN WELL PSD-15C-24 is a single-output DC/DC switching power supply with a 36–72 V DC input range. It provides 24 V DC, up to 0.6 A and 14.4 W rated output, with free-air convection cooling. Apply the specified input-voltage, temperature and mounting-orientation limits.

Download MEAN WELL PSD-15 Datasheet (PDF)
Download MEAN WELL DC-DC Installation Manual (PDF)
Download MEAN WELL EMI Testing Guidance (PDF)

PSD-15: PDF pages 1–2.

Output specifications

Nominal output voltage	24 V DC.
Rated output current	0.6 A.
Output current range	0–0.6 A.
Rated output power	14.4 W.
Ripple and noise	100 mVp-p maximum. Measured at 20 MHz bandwidth using a 12-inch twisted-pair lead terminated with 0.1 µF and 47 µF capacitors.
Voltage tolerance	±2%; includes setup tolerance, line regulation and load regulation.
Line regulation	±0.5%.
Load regulation	±0.5%.
Setup and rise time	Setup 2.5 s; rise time 25 ms, at 48 V DC input and full load.

Input and efficiency

Input voltage	36–72 V DC; 48 V DC nominal input reference.
Efficiency	79% typical for this model.
DC input current	0.45 A typical at 48 V DC input.
Switching-frequency reference	100 kHz, as shown in the block diagram.
Input filtering and output noise	Built-in EMI filtering is shown in the block diagram.

Protection and environment

Protection functions	Short-circuit, overload, overvoltage and input-polarity protection are listed in the series features.
Overload protection	105–150% of rated output power. Hiccup mode; automatic recovery after the fault condition is removed.
Overvoltage protection	27.6–32.4 V. The output shuts off and is clamped by a zener diode.
Cooling	Free-air convection.
Working temperature	−10 to +60°C; apply the appropriate load-derating curve.
Ambient-temperature load curve	Horizontal mounting: 80% load at −10°C, 100% from 0 to +50°C, and 60% at +60°C. Vertical mounting: 80% at −10°C, 100% from 0 to +45°C, and 60% at +55°C. Follow the corresponding curve between the marked points.
Working humidity	20–95% RH, non-condensing.
Storage conditions	−20 to +85°C; 10–95% RH.
Temperature coefficient	±0.05%/°C over 0–50°C.
High-altitude derating	For this fanless supply, reduce the allowable ambient temperature by 3.5°C per 1000 m above 2000 m altitude.
Vibration	10–500 Hz, 2 G, 10 minutes per cycle; 60 minutes along each of the X, Y and Z axes.

Safety, EMC and reliability

Safety standards and scope	EAC TP TC 004 approved.
Withstand voltage	Input to output: 2.0 kVAC.
Isolation resistance	Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH.
EMC emission	BS EN/EN55032 (CISPR32), Class B; EAC TP TC 020.
EMC immunity	BS EN/EN61000-4-2, -3, -4, -6 and -8; BS EN/EN55035; BS EN/EN61000-6-1, light-industry level; EAC TP TC 020.
EMC test arrangement	The supply is considered a component for installation in a final system. The EMC test arrangement mounts the supply on a 230 × 230 × 1 mm metal plate. This is a test setup; verify the complete equipment’s EMC compliance.
Quality and reliability design	100% full-load burn-in testing; low-cost, high-reliability design.
MTBF	Minimum 7598.3 thousand hours by Telcordia SR-332 (Bellcore); minimum 740.4 thousand hours by MIL-HDBK-217F at 25°C.
Manufacturer warranty	2 years.

Connections, mounting and packing

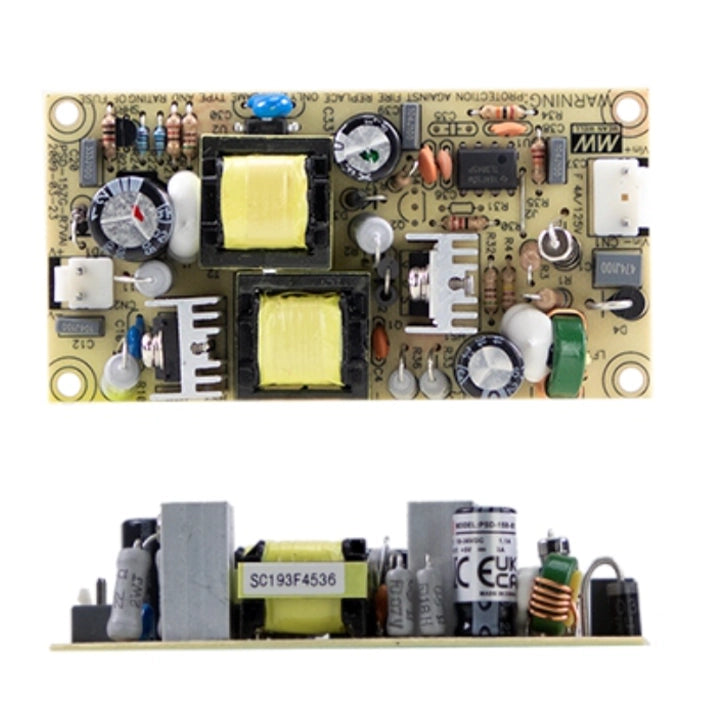

Dimensions	94 × 49 × 25 mm (L × W × H). Mechanical drawing units are millimetres; general tolerance ±1 mm.
Mounting drawing	Four Ø3.5 mm mounting holes on 87 × 42 mm centres, with 3.5 mm edge offsets. Side view: 25 mm height and 3 mm maximum underside lead protrusion.
Connector-position drawing	The CN1 top-view location is marked by 26 mm and 7.5 mm references; its two successive terminal intervals are 4 mm. CN2 terminal spacing is 4 mm. Use the full drawing on PDF page 2 for positioning.
DC input connector	CN1: JST B3P-VH or equivalent. Pin 1 = −V input; pin 2 = no pin; pin 3 = +V input. Mating housing: JST VHR or equivalent; contact: JST SVH-21T-P1.1 or equivalent.
DC output connector	CN2: JST B2P-VH or equivalent. Pin 1 = −V output; pin 2 = +V output. Mating housing: JST VHR or equivalent; contact: JST SVH-21T-P1.1 or equivalent.
Connector compatibility	The listed housing and contact references identify mating connection specifications; verify the supplied equivalent and connector pin numbering before wiring.
Packing and weight	81 g, catalog packing reference per unit; not a measured net-weight claim. Outer packing: 120 pieces, 10.72 kg, 0.9 CUFT.
General test conditions	Unless otherwise specified, parameters are measured at nominal input, rated load and 25°C ambient temperature.

Installation and system guidance

Installation safety and polarity	Disconnect the system supply before installation or maintenance and prevent inadvertent reconnection. Have faults examined by a qualified technician; do not attempt repairs yourself. Do not reverse input or output polarity. Avoid high moisture, water, fire sources and ambient temperatures beyond the model specification.
PCB clearance and ventilation	Keep at least 5 mm insulation distance around the PCB unit. Provide good ventilation and keep 10–15 cm clearance when an adjacent device is a heat source. Nonstandard mounting orientation or high ambient temperature may require output-current derating; use the model-specific mounting drawing and derating curves.
Conductor and connector selection	The installation guide recommends these wire columns: 18 AWG / 0.75 mm² for 6 A; 16 AWG / 1.00 mm² for 6–10 A; 14 AWG / 1.5 mm² for 10–16 A; 12 AWG / 2.5 mm² for 16–25 A; 10 AWG / 4 mm² for 25–32 A; and 8 AWG / 6 mm² for 32–40 A. These are paired guide entries, not exact unit conversions. When five or more wires connect to the unit, derate each listed wire-current recommendation to 80%. Select compatible mating housings and terminals from this model’s connector specification.
Rated loading and system inrush	Keep output current and power within the selected model’s ratings and applicable derating conditions. The system may require an additional inrush-current limiting circuit; consult MEAN WELL if the system requirement is uncertain.
System enclosure and grounding	Install this component converter inside the final system enclosure. The surrounding equipment enclosure must have flammability rating V1 or better.
Complete-system EMC verification	Recheck EMC with the converter installed in the final equipment and connected to a representative load. Wiring and assembly affect the result; the linked component EMI guidance does not certify the finished equipment. The PSD-15 datasheet’s 230 × 230 × 1 mm metal plate describes the EMC test arrangement, not a required installation clearance.
