Description

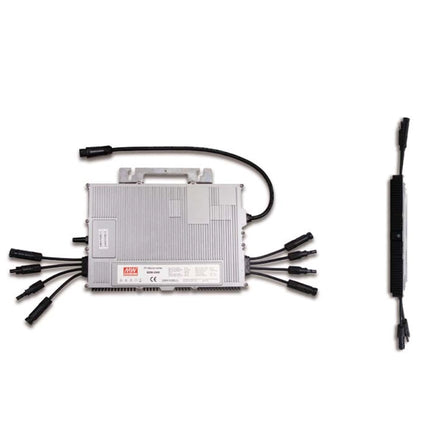

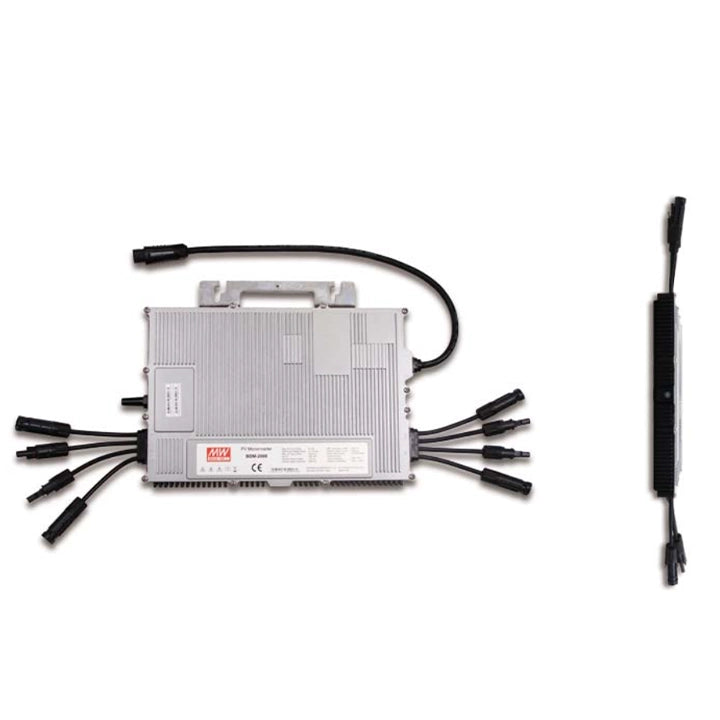

DC input PV power: 4X750W DC input MPPT voltage range: 22-55V DC input starting voltage: 24V DC input voltage (maximum):60V DC input current (maximum):4X20A AC output power (peak):2000VA AC output power (continuous):1920VA AC output voltage: 240V AC output current: 8A Size (mm):351X275.5X39.5
Click to download Airtac product catalog
Product Features
1. Pure Hongbo output (THD<3%),MPPT tracking efficiency up to 99.9, CEC weighted average efficiency up to 96.5.
2. The maximum DC input voltage is 60V, with GFDI, surge and other protection, IP67 protection level,-40 ℃ to 65 ℃ working temperature.
3. APP monitoring, built-in wifi/PLC communication mode, real-time control of power plant operation status, automatic high temperature and fault alarm, plug and play, simple and convenient, warranty period of 10 years (B/C Type warranty of 25 years).
