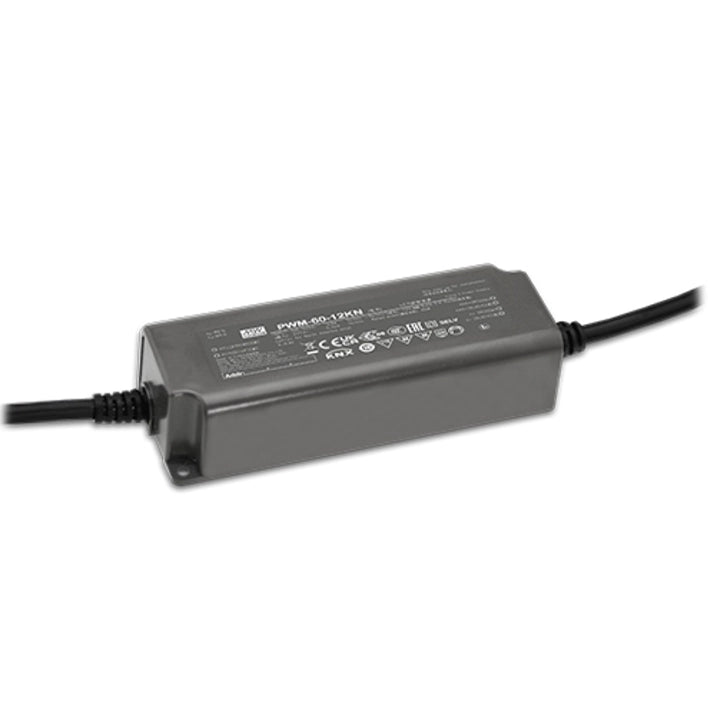

MEAN WELL PWM-KN series: Constant voltage PWM output KNX LED control device - PWM-60-12KNBST

Description

Output voltage: 12V Output current: 5A Rated power: 60W Input voltage: 90 ~ 305VAC or 127 ~ 431VDC Input frequency: 47~63Hz Function: KNX control technology with BST14 connector, optional Size (mm):150X53X35

Click to download Airtac product catalog

Product Features

1. Constant voltage PWM output, user frequency conversion up to 4KHz, designed to meet IEEE1789-2015 standards and EU Ecodesign SVM standards.

2. Minimum dimming brightness is 0.01, plastic casing, Class Ⅱ design, standby power consumption <0.5W, integrated KNX control protocol, no need to KNX-DALI gateway, life> 50000 hours, 5 years warranty, 5 years warranty.

MEAN WELL PWM-KN series: Constant voltage PWM output KNX LED control device - PWM-60-12KNBST

Product form

Output voltage: 12V Output current: 5A Rated power: 60W Input voltage: 90 ~ 305VAC or 127 ~ 431VDC Input frequency:... Read more

$108.17 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Output voltage: 12V Output current: 5A Rated power: 60W Input voltage: 90 ~ 305VAC or 127 ~ 431VDC Input frequency: 47~63Hz Function: KNX control technology with BST14 connector, optional Size (mm):150X53X35

    Click to download Airtac product catalog

    Product Features

    1. Constant voltage PWM output, user frequency conversion up to 4KHz, designed to meet IEEE1789-2015 standards and EU Ecodesign SVM standards.

    2. Minimum dimming brightness is 0.01, plastic casing, Class Ⅱ design, standby power consumption <0.5W, integrated KNX control protocol, no need to KNX-DALI gateway, life> 50000 hours, 5 years warranty, 5 years warranty.
