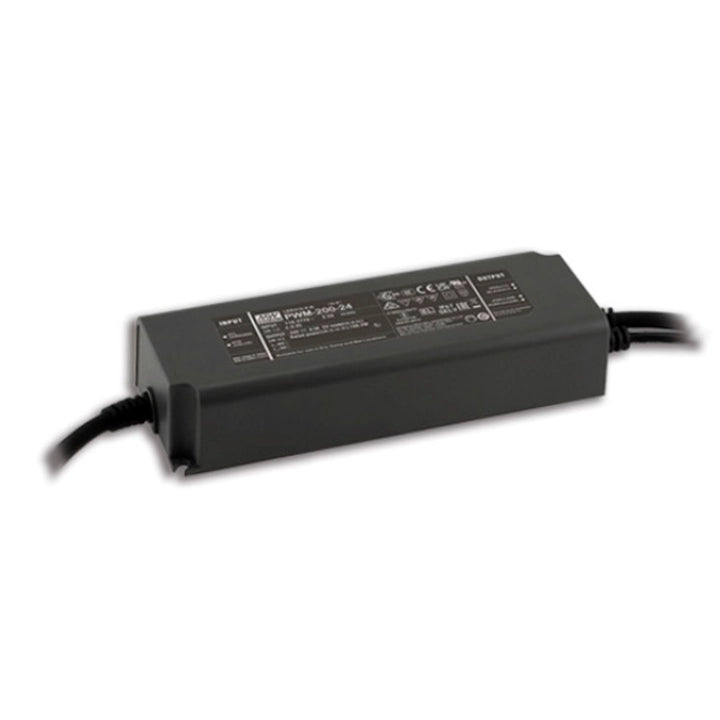

MEAN WELL PWM Series: Constant Voltage PWM Output LED Driver - PWM-200-36DA2

Description

Output voltage: 36V Rated output current: 5.55A Output power rating: 199.8W Output dimming range: 0~100% Input voltage: 100 ~ 305VAC or 142 ~ 431VDC IP rating: IP67 Function: push type dimming or DALI-2 control technology, standard Size (mm):195X68X39.5

Product Features

1. A variety of dimming functions can be selected: three-in-one, DALI-2/KNX.

2. International universal full range input: 90 ~ 305VAC.

3. Constant voltage PWM form output.

4. Built-in active PFC function.

5, the highest efficiency of up to 94%.

6. No-load power consumption <0.5W, full glue filling, conforming to IP67 grade.

7. Class II design, no FG.

8. Protection type: short circuit/overload/overvoltage/over temperature, 5 years warranty.

MEAN WELL PWM Series: Constant Voltage PWM Output LED Driver - PWM-200-36DA2

Product form

Output voltage: 36V Rated output current: 5.55A Output power rating: 199.8W Output dimming range: 0~100% Input voltage: 100 ~ 305VAC... Read more

$123.43 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Output voltage: 36V Rated output current: 5.55A Output power rating: 199.8W Output dimming range: 0~100% Input voltage: 100 ~ 305VAC or 142 ~ 431VDC IP rating: IP67 Function: push type dimming or DALI-2 control technology, standard Size (mm):195X68X39.5

    Product Features

    1. A variety of dimming functions can be selected: three-in-one, DALI-2/KNX.

    2. International universal full range input: 90 ~ 305VAC.

    3. Constant voltage PWM form output.

    4. Built-in active PFC function.

    5, the highest efficiency of up to 94%.

    6. No-load power consumption <0.5W, full glue filling, conforming to IP67 grade.

    7. Class II design, no FG.

    8. Protection type: short circuit/overload/overvoltage/over temperature, 5 years warranty.
