MEAN WELL PWM-90-12DA2

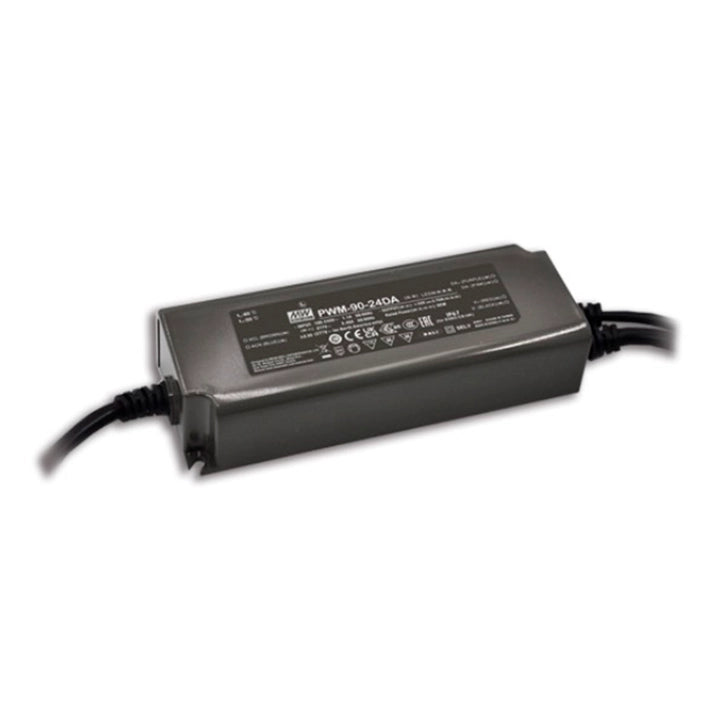

MEAN WELL PWM-90-12DA2 is a DALI-2 constant-voltage PWM output LED driver for compatible 12 V LED strips, rated 7.5 A and 90 W. Its Class II plastic enclosure is fully encapsulated to IP67. Select for the exact DA2 control version and apply the input and thermal derating below.

Download MEAN WELL PWM-90 Datasheet (PDF)Download MEAN WELL LED Installation Manual (PDF)

Datasheet section: PDF pages 44–51; specifications on page 45.

Model, output and control

Parameter	Specification
Model	PWM-90-12DA2
Series and function code	PWM-90; DA2: DALI-2 DT6 control
Output mode	Constant voltage with PWM-style output; dimming varies output-current duty cycle. Built-in active power factor correction (PFC).
DC output voltage	12 V
Rated output current	7.5 A
Rated output power	90 W
Output PWM frequency	2.5 kHz, fixed typical output waveform frequency.
Dimming interface	DALI-2 DT6
Dimming range	Catalog range 0–100%; DALI first step/minimum output duty approximately 0.2%.

Input and performance

Parameter	Specification
Input voltage	90–305 VAC or 127–431 VDC; apply input-voltage and thermal derating. Before DC wiring, verify the manufacturer’s polarity requirements for this model.
Input frequency	47–63 Hz
Typical efficiency	88% at the catalog test conditions
Typical power factor	>0.98 / 115 VAC; >0.96 / 230 VAC; >0.92 / 277 VAC at full load; PF changes with load.
THD	<20% at ≥60% load / 115 or 230 VAC, or ≥75% / 277 VAC; consult the model-specific load curves.
Typical AC input current	0.95 A / 115 VAC; 0.5 A / 230 VAC; 0.4 A / 277 VAC
Inrush current	Cold start: 60 A typical at 230 VAC; 550 μs pulse width measured at 50% peak, per NEMA 410.
Circuit-breaker reference	3 / 6 units for type B / type C 16 A breakers at 230 VAC, respectively. Catalog reference only; verify the actual breaker and system conditions.
Leakage current	<0.25 mA at 277 VAC
No-load or standby power	<0.5 W no-load consumption.
Setup and rise time	500 ms setup, 80 ms rise / 115 or 230 VAC. Cold-start measurement; rapid switching may increase setup time. DALI power-on timing requires a compatible controller; otherwise setup can exceed 0.5 s.
Hold-up time	16 ms / 115 or 230 VAC typical

Protection and operating conditions

Parameter	Specification
Overload protection	108–130% of rated output; Hiccup mode; automatic recovery after the fault is removed.
Short-circuit protection	Hiccup mode; automatic recovery after the fault is removed.
Overvoltage protection	15–17 V; Output shuts down; remove the fault, then re-power to recover.
Overtemperature protection	Output shuts down; remove the fault, then re-power to recover.
Working case temperature	−40 to +85°C; maximum case temperature +85°C, subject to derating.
Cooling and load derating	Free-air convection with recommended horizontal mounting. 100% through +50°C ambient, falling to 50% at +70°C. The −40°C to −25°C region is for 230 VAC input only. Keep Tc at or below +85°C; apply both ambient and input limits.
Input/load derating	At 60 Hz: 80% at 90 VAC, rising to 100% at 100 VAC; 100% through 305 VAC.
Humidity and storage	Working: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH.
Temperature coefficient	±0.03%/°C over 0–50°C
Altitude derating	Above 2000 m, reduce the allowable ambient temperature by 3.5°C per additional 1000 m for this fanless design.
Vibration	10–500 Hz, 5 G, 12 minutes per cycle, 72 minutes along each X/Y/Z axis.

Control wiring and operation

Parameter	Specification
DALI operation	Apply the DALI signal between DA+ and DA−; DT6 brightness control. DALI supports 16 groups and 64 addresses. The catalog identifies the interface as primary-side; maintain the required insulation.
DALI polarity	The DA/DA2 DALI pair is polarity-insensitive; the wire labels do not imply a polar DC output.

Safety, insulation and compliance

Parameter	Specification
Safety and design standards	UL8750 (cover identifies Type HL for this Blank/DA2 version); CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 and BS EN/EN62384, independent control gear; IP67; EAC TP TC 004; GB/T19510.1 and GB/T19510.213. BS EN/EN60335-1 is a design reference. Class II without FG; SELV output. This 12 V model is excluded from the catalog Class 2 claim. Type HL applications: Class I, Division 2 hazardous (classified) locations, subject to the listed installation conditions. BIS IS15885 (Part 2/Sec13) is listed for this model/version.
EMC	Emission: BS EN/EN55015, BS EN/EN61000-3-2 Class C at ≥60% load, BS EN/EN61000-3-3, GB/T17743, GB17625.1 and EAC TP TC 020. Immunity: BS EN/EN61000-4-2/-3/-4/-5/-6/-8/-11, BS EN/EN61547 light-industry level, line-to-line surge 2 kV, and EAC TP TC 020. Final equipment requires EMC requalification.
Insulation	Input/output withstand: 3.75 kVAC. Input/DALI and output/DALI: 1.5 kVAC. Insulation resistance input/output: 100 MΩ at 500 VDC, 25°C / 70% RH.
MTBF	2394.5 / 224.2 thousand hours minimum, Telcordia SR-332 / MIL-HDBK-217F (25°C), respectively; statistical estimates, not guaranteed service life.
DALI standards	IEC62386-101, -102, -207 (DT6) and Part 251; apply only the selected mode and the supplied DA2 version.
Emergency-lighting scope	This DA2 version is listed for BS EN/EN61347-2-13 Appendix J emergency installations (EL), with AC input 100–240 VAC.

Dimensions and installation

Parameter	Specification
Dimensions	171 × 63 × 37.5 mm (L × W × H); plastic housing.
Lead connections	Input: AC/L brown, AC/N blue. LED output: +V red, −V black. Control: DA+ purple, DA− pink.
Cable specification	Input: SJOW 17 AWG × 2C & H05RN-F 1.0 mm²; LED output: the same cable designation. Control: UL2464 18 AWG × 2C. Lead runs: 300 ±20 mm; refer to the mechanical drawing for breakout lengths.
Mounting	Use the model-specific drawing; 4.5 mm mounting holes. Maintain recommended horizontal mounting and keep the marked Tc point below the case-temperature limit.
Ingress protection	Fully encapsulated IP67, for dry, damp or wet locations subject to the installation instructions. Suitable indoors or outdoors without direct sunlight; do not immerse or operate the product in water. Seal system interconnections and any waterproof connector against water ingress.
Installation	Disconnect the supply before installation or maintenance and prevent inadvertent reconnection. Keep ventilation clear, do not stack objects on the unit, and leave 10–15 cm clearance when the adjacent device is a heat source. Approved primary/secondary cables must carry at least the unit’s rated current. Nonstandard mounting or high ambient temperature requires derating. Confirm compatibility with this DALI-2 interface. The catalog’s general installation note cites 0.15 mA per PWM driver; this is not a complete DALI bus/controller sizing specification. Follow the dedicated interface wiring and controller requirements. Insulate system interconnections and enclose single-insulated wires; do not dismantle the driver. Damaged external cables must be replaced by the manufacturer, its service agent or an equally qualified person.
Weight	770 g; catalog packing reference per unit (0.77 kg × 1000), not a measured net or shipping parcel weight.
Service-life reference	Typical lifetime >50,000 hours when the marked Tc/TMP point is about +75°C or below. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement; not an additional store promise.

Unless stated otherwise, catalog parameters are measured at 230 VAC input, rated current and +25°C ambient. Typical figures and load curves apply only to their stated conditions. Read the linked drawings and installation instructions before system design.
