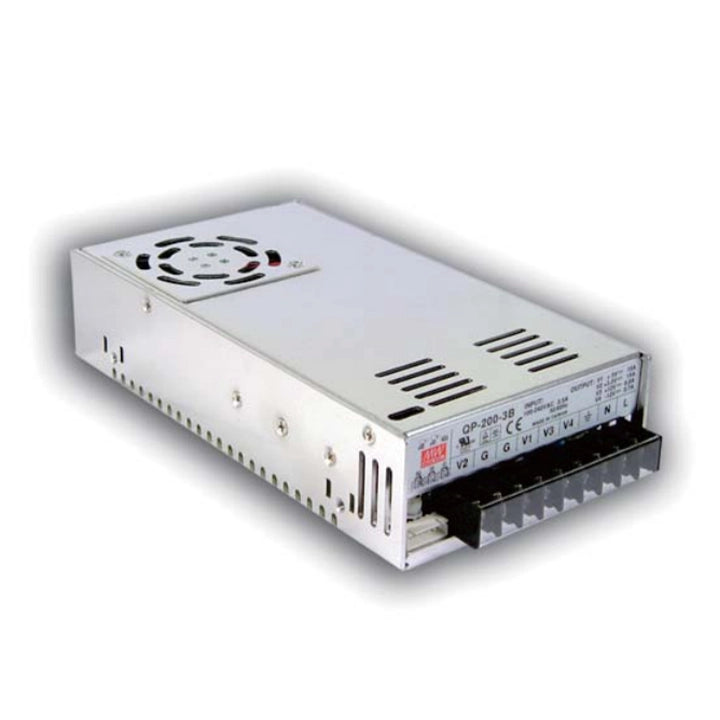

Description
Rated power: 200W Output channel: CH2 Input voltage: 90 ~ 264VAC or 127 ~ 370VDC Output voltage: 3.3V Output current: 0 ~ 20A Size (mm):215X115X50
Click to download Airtac product catalog
Product Features
1. International universal full range AC input, built-in active PFC function, DF>0.95, protection type: short circuit/overload/over voltage/over temperature.
2. Built-in DC fan forced air cooling, CH1,CH2 adjustment range is -50 ~ 10%, with PG and PF signal output (optional).
3. CH1 and CH2 have remote sensing function and are aged at 100 full load. If CH4 needs to be set as positive electrode, please book in advance (optional). Switching operating frequency: PFC:67KHz,PWM:134KHz,3-year warranty.
