RCP-MU — Power control and monitoring unit

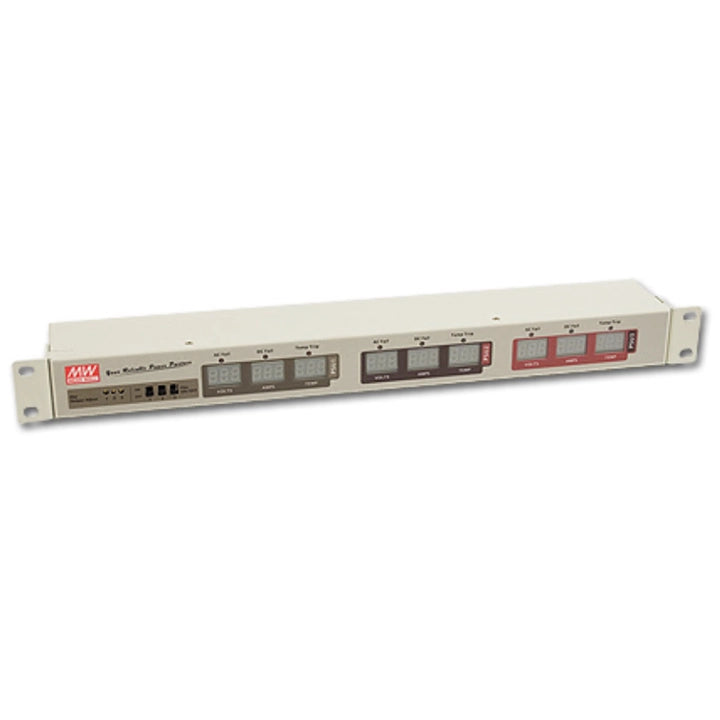

MEAN WELL RCP-MU is a 1U, 19-inch rack-mounted control and monitoring unit for up to three RCP-1000 power supplies. It displays each power unit’s output voltage, output current and internal temperature, provides front-panel ON/OFF control and ±10% voltage trimming, and reports AC, DC and temperature alarms through LEDs and potential-free relay contacts. Standard voltage selections are 12, 24 and 48 V; this controller does not provide an RCP-1000-rated power output.

Download MEAN WELL RCP-MU Datasheet (PDF)

Specifications: PDF page 1; mechanical and connector drawings: page 2; embedded user guide and switch settings: page 3.

Product scope and monitoring

Product function Power control and monitoring unit for the MEAN WELL RCP-1000 rack-power series. One RCP-MU controls and monitors up to three RCP-1000 units; it is not itself an RCP-1000 power-output module.
Rack and voltage compatibility 1U low-profile, 19-inch rack format. Standard monitored RCP output-voltage selections are 12, 24 and 48 V. The 66 V selection is reserved for specially custom-made RCP-1000 models.
Monitoring inputs I²C signals carrying AC OK, DC OK and overtemperature alarm information for each RCP-1000 unit, together with the output voltage of the RCP-1U rack.
Digital meter displays Front-panel digital meters display DC output voltage, output current and internal temperature for each monitored RCP-1000 unit, in the PSU1, PSU2 and PSU3 display sections.
Display resolution and tolerance Resolution and tolerance depend on the controlled RCP series. The RCP-MU catalog does not specify one fixed numerical accuracy for every connected power unit.
Control outputs Remote ON/OFF and output-voltage trimming for each RCP-1000 unit. The controlled unit can be switched ON or OFF using the RCP-MU front-panel controls.
Output-voltage adjustment The front-panel potentiometers trim the controlled RCP-1000 output voltage by ±10%. The output-voltage lock can disable or enable this adjustment; the monitored voltage is not a rated power output of the RCP-MU.
Alarm contacts and rating Potential-free relay contacts for AC Fail, DC Fail and overtemperature alarm; contact rating 30 V DC, 1 A.
Alarm action AC input failure: the corresponding relay opens and its LED lights. DC output failure: the corresponding relay opens and its LED lights. When temperature exceeds the applicable limit: the temperature-alarm relay opens and its LED lights.
Front-panel indicators Each monitored power-unit section has AC Fail, DC Fail and Temp Alarm indications, alongside VOLTS, AMPS and TEMP displays.

Supply input and operating conditions

Supply voltage range 90–264 V AC or 127–370 V DC. These are the supply inputs to the control/monitor unit.
AC frequency 47–63 Hz.
AC input current 0.35 A at 115 V AC; 0.2 A at 230 V AC, typical.
Inrush current 30 A at 115 V AC; 50 A at 230 V AC, typical.
Operating environment Operating temperature: −20 to +60°C. Working humidity: 20–90% RH, non-condensing.
Storage environment −40 to +85°C; 10–95% RH, non-condensing.
High-altitude conditions Above 2000 m, the catalog gives ambient-temperature derating of 3.5°C per additional 1000 m for fanless models and 5°C per additional 1000 m for fan-equipped models. Confirm the applicable cooling category for the supplied unit; the controlled RCP-1000 and the RCP-MU are separate devices.
Vibration 10–500 Hz, 2G; 10 minutes per cycle and 60 minutes each along the X, Y and Z axes.
General measurement conditions Unless otherwise stated, parameters are measured at 230 V AC input, rated load and 25°C ambient temperature.
Rear-panel label reference The illustrated rear label shows 100–240 V AC, 50/60 Hz and 0.35–0.2 A. The specification table gives the full operating input range and the typical-current test voltages stated above.

Connectors and alarm wiring

AC input terminal assignments Terminal 1: FG (protective earth); terminal 2: AC/N; terminal 3: AC/L. Follow the rear-panel drawing and actual markings.
Alarm terminals for power unit 3 Terminals 1–2: Temp 3 Fail; 3–4: DC 3 Fail; 5–6: AC 3 Fail. Each pair is a potential-free relay contact.
Alarm terminals for power unit 2 Terminals 7–8: Temp 2 Fail; 9–10: DC 2 Fail; 11–12: AC 2 Fail. Each pair is a potential-free relay contact.
Alarm terminals for power unit 1 Terminals 13–14: Temp 1 Fail; 15–16: DC 1 Fail; 17–18: AC 1 Fail. Each pair is a potential-free relay contact.
Communication pins 1–5 Pin 1: ON/OFF-A; 2: AC-OK-A; 3: DC-OK-A; 4: V-TRIM-A; 5: T-ALARM-A.
Communication pins 6–10 Pin 6: +5V-AUX; 7: GND-AUX; 8: ON/OFF-B; 9: AC-OK-B; 10: DC-OK-B.
Communication pins 11–15 Pin 11: V-TRIM-B; 12: T-ALARM-B; 13: NC; 14: CS; 15: ON/OFF-C.
Communication pins 16–20 Pin 16: AC-OK-C; 17: DC-OK-C; 18: V-TRIM-C; 19: T-ALARM-C; 20: +S.
Communication pins 21–25 Pin 21: −S; 22: +V; 23: SCL; 24: SDA; 25: −V. Use the connector numbering shown in the rear view; signal labels are not additional rated power outputs.
Rack communication connection Connect the RCP-1U CN500 interface to the RCP-MU communication connector as shown in the embedded user guide on PDF page 3. The block diagram illustrates one signal set; one RCP-MU can handle up to three RCP-1000 units.

DIP switches and adjustment lock

RCP-1U address switches The page-3 address drawing groups switches 1–3 as Module A, 4–6 as Module B and 7–9 as Module C. It shows A: OFF/ON/ON; B: ON/OFF/ON; C: OFF/OFF/ON. Follow the ON/OFF direction marked on the actual rack switch.
Model-selection purpose Select the correct monitored RCP-1000 output voltage for better display resolution. The factory original setting is for 48 V models. This selection identifies the power-unit voltage; it does not create a new output-voltage rating for RCP-MU.
12 V model selection Model Select switches 1/2/3: OFF/OFF/OFF.
24 V model selection Model Select switches 1/2/3: OFF/ON/OFF.
48 V model selection Model Select switches 1/2/3: ON/OFF/OFF; factory original selection.
66 V custom-model selection Model Select switches 1/2/3: ON/ON/OFF, only for specially custom-made RCP-1000 models. Confirm the connected custom model before using this position.
Output-voltage lock The rear VOLTS LOCK switches have Enable and Disable positions. In the illustrated all-Disable position, the power-unit voltage cannot be adjusted. In the all-Enable position, the output voltages can be adjusted independently by the front-panel VRs.

Mechanical installation

Dimensions and case 440 × 68 × 44 mm (L × W × H); case No. 701A. The mechanical drawing uses millimetres and states a tolerance of ±1 mm.
Rack mounting 19-inch rack mounting with removable fixing accessories. The front view gives 483.6 mm overall width across the mounting ears and 466.1 mm between the indicated mounting-slot centre lines; body width is 440 mm.
Mounting slots and location references The front view marks a 10.2 mm horizontal slot dimension and local vertical references of 7.1, 7.4 and 36.9 mm. Refer to the drawing extension lines for the exact locations.
Controls and connections layout Front: individual output-adjustment controls, PSU ON/OFF controls and PSU1/PSU2/PSU3 display groups. Rear: AC input terminal block, Model Select switch, 18-position alarm terminal block, Output Voltage Lock and 25-pin communication connector.

Safety, EMC and reliability

Safety status Design reference: EN62368-1. EAC TP TC 004 approved, as stated in the catalog. The EN design reference is not an approval claim.
Withstand voltage Input–output: 3 kV AC; input–FG: 1.5 kV AC; output–FG: 0.5 kV AC.
Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 V DC, 25°C and 70% RH.
EMC emissions Compliance with EN55032 (CISPR32) Class B, EN61000-3-2 and -3, and EAC TP TC 020.
EMC immunity Compliance with EN61000-4-2, -3, -4, -5, -6, -8 and -11; EN55035; EAC TP TC 020.
Reliability MTBF: 346.7K hours minimum, Telcordia SR-332 (Bellcore); 255.4K hours minimum, MIL-HDBK-217F at 25°C.
Warranty 3-year manufacturer warranty, as stated in the catalog.
Weight and packing Catalog packing reference: 1.15 kg per unit (1150 g), not a stated net-weight measurement. Carton packing: 6 pieces, 8 kg and 1.27 CUFT.
