Description

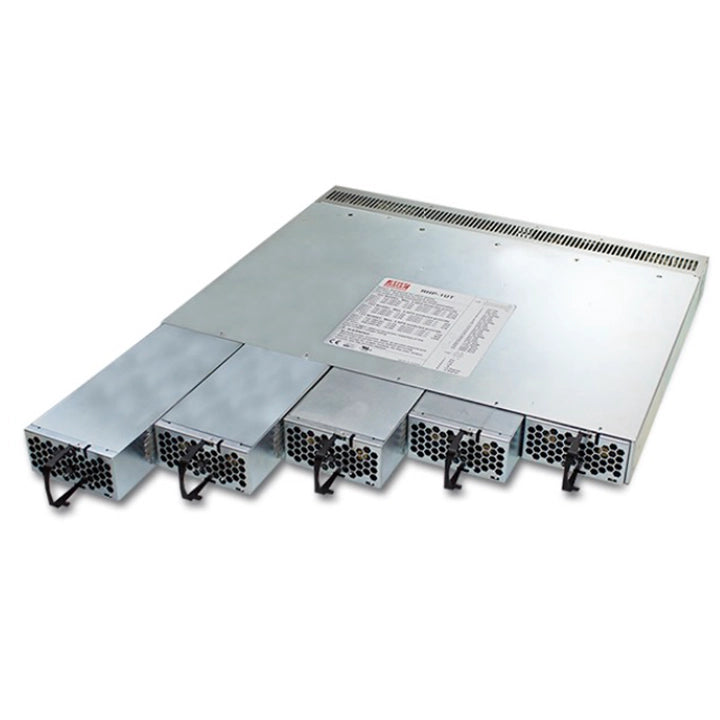

Charging system output module: RCP-1600-12 Output bracket: RHP-1UI-A or RHP-1UT-A The maximum power of the entire rack is full of 8KW, and the configuration of the system Terminal block Output Pulse Charge Voltage (Vboost)(Default):14.4V Output float charge voltage (Vboost)(default):13.8V Output current range: 0 ~ 500A Input voltage range: 90 ~ 264VAC,127 ~ 370VDC Size: 365X440X44 Communication protocol: CANBus protocol, optional
Product Features
1. International universal full range input: 90 ~ 264VAC.
2. Built-in active PFC function, built-in auxiliary power supply.
3. Protection type: short circuit/overload/overvoltage/overtemperature; built-in DC DC fan forced air cooling.
4. The high power density can reach 25W/inch³;1U low shell, height only 41mm, output voltage and constant current value are adjustable.
5. Active current sharing function, 3 sets can be connected in parallel, and up to 3 racks can be connected in parallel at the same time.
6. Maximum parallel power: RCP-1000:8KW,RCP-1600:24KW,RCP-2000:18KW.
7. Built-in remote control switch and remote sensing function, support hot plug operation.
8. Built-in I²C serial bus, PMBus communication protocol (CANBus optional);AC OK and DC OK signals; 5-year warranty.
