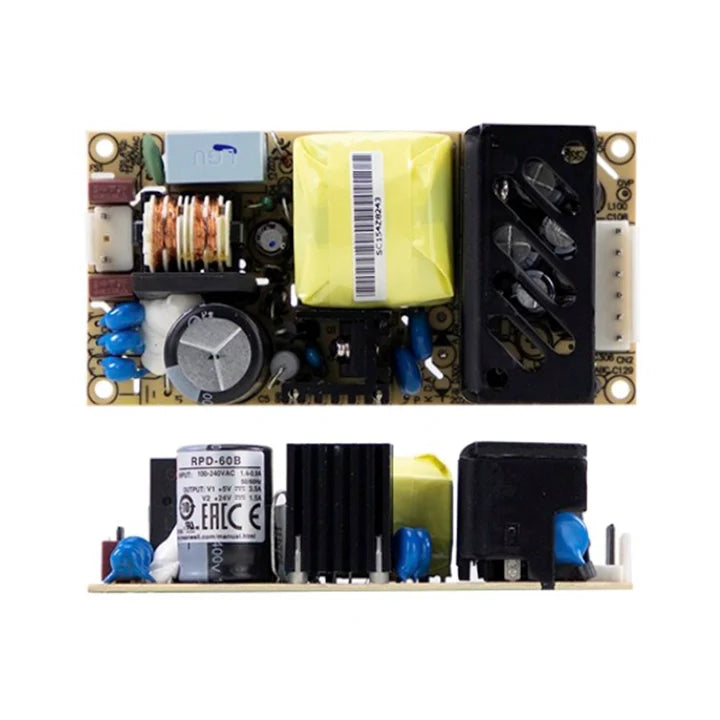

MEAN WELL RPD-60B is a PCB-type dual-output medical AC/DC power supply. It provides CH1 5 V, CH2 24 V. The rated combined output is 53.5 W. A 58.85 W timed peak requires the stated 10-second, duty-cycle and average-power limits.
Product Datasheet
Download MEAN WELL RPD-60 Datasheet (PDF)
The RPD-60 section is on PDF pages 1, 2, 3, 4. Refer to the complete mechanical drawings and notes when planning installation.
Model and Output Configuration
| Complete model |
RPD-60B |
| Output arrangement |
2 outputs sharing the stated COM reference; polarity is shown separately for every channel. |
| Construction |
PCB assembly for installation inside equipment. |
| Nominal efficiency, typical |
82%. |
This medical power supply is a component, not a certification of the finished medical equipment. Suitability for BF applications requires appropriate system consideration, including patient isolation, leakage current, protective grounding and EMC.
Combined Load and Peak Limits
| Rated combined output |
53.5 W; both channels share this total. |
| Catalogue higher-load rating |
58.85 W peak for no more than 10 seconds. |
Timed peaks must stay within 33% duty cycle in every 30-second interval, and average output power must not exceed the rated combined power.
Meet each channel minimum load and its current limit while respecting the combined wattage limit. The upper current-range values do not replace the continuous total-power rating. Unless otherwise stated, parameters are measured at 230 VAC, rated load and 25°C ambient. Ripple/noise uses 20 MHz bandwidth and a 12-inch twisted pair terminated by parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation.
CH1 Electrical Ratings
| Output voltage |
5 V. |
| Rated current |
3.5 A. |
| Minimum load |
0.5 A. |
| Specified current range |
0.5–3.85 A; observe the total-power and timed-peak limits. |
| Ripple and noise, maximum |
80 mVp-p. |
| Voltage tolerance |
+3% / −2%. |
| Line regulation |
±0.5%. |
| Load regulation |
±1.5%. |
CH2 Electrical Ratings
| Output voltage |
24 V. |
| Rated current |
1.5 A. |
| Minimum load |
0.1 A. |
| Specified current range |
0.1–1.65 A; observe the total-power and timed-peak limits. |
| Ripple and noise, maximum |
100 mVp-p. |
| Voltage tolerance |
+8% / −4%. |
| Line regulation |
±1.0%. |
| Load regulation |
±2.0%. |
Input and Start-Up
| Input range |
90–264 VAC, 47–63 Hz, or 127–370 VDC. Apply low-input derating. |
| Input current, typical |
1.1 A at 115 VAC; 0.7 A at 230 VAC. |
| Cold-start inrush, typical |
30 A at 115 VAC; 60 A at 230 VAC. |
| Set-up / rise time |
300 / 15 ms at 230 VAC; 300 / 15 ms at 115 VAC, full load. |
| Hold-up time, typical |
70 ms at 230 VAC; 14 ms at 115 VAC, full load. |
| Switching-frequency reference |
100 kHz. |
Set-up time is measured at cold start; repeated ON/OFF operation may increase it.
Protection
| Short circuit / overload |
Hiccup protection at 115–150% rated output power, with automatic recovery after the fault is removed. |
| Overvoltage protection |
CH1: 5.75–6.75 V. Output shuts down; re-power to recover. |
Protection thresholds are fault limits, not additional operating ratings.
Derating and Environment
| Working temperature |
−20 to +65°C, subject to the cooling curve. |
| Thermal curve |
Horizontal mounting: 100% load from −20°C to 40°C, then derate to 50% at 65°C. The plotted operating range ends at 65°C. |
| Input-voltage curve, 60 Hz |
80% load at 90 VAC; 100% at 115 VAC through 264 VAC. |
| Working humidity |
20–90% RH, non-condensing. |
| Storage conditions |
−40 to +85°C; 10–95% RH, non-condensing. |
| Temperature coefficient |
±0.03%/°C over 0–45°C. |
| Vibration |
10–500 Hz, 2 G; 10-minute cycles, six cycles / 60 minutes along each X, Y and Z axis. |
| Altitude condition |
Operating altitude up to 3000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for fanless operation, or 5°C per additional 1000 m for fan-cooled operation. |
Apply temperature, input-voltage, cooling and channel loading restrictions together. Do not extrapolate beyond the plotted curve or treat a series name as the guaranteed output wattage.
Installation and Mechanical Details
| Dimensions, L × W × H |
101.6 × 50.8 × 29 mm. |
| Drawing dimensions |
Millimetres, general tolerance ±1 mm; 4 x Ø3.3 mm on 95.25 × 44.45 mm centres. |
| Underside clearance |
3 mm maximum component projection is shown below the board; allow the installation clearance required by the manufacturer. It is not a mounting-screw penetration rating. |
| Mounting references |
3.175 mm edge references; M1 is safety ground. Secure electrical connection between M1, M2 and chassis ground for EMC. |
| Heat sinks and fuses |
HS1 and HS2 must not be shorted. FS1 and FS2 are marked T2.5/250V; this is a fuse rating, not a complete replacement ordering code. |
Use the applicable complete mechanical drawing and installation instructions. The listed mating connector references, external fan and mounting hardware are not stated to be supplied accessories. These RPD models require a Class I installation with protective ground (FG).
Connectors and Mating References
| AC input CN1 |
JST B3P-VH or equivalent: pin 1 AC/N, pin 2 absent, pin 3 AC/L. Mating housing reference JST VHR; terminal JST SVH-21T-P1.1 or equivalent. |
| DC output CN2 |
JST B6P-VH or equivalent: pins 1–2 V1, 3–4 COM, 5 V2, 6 NC. NC means no connection, not a third output. |
The main input/output connectors use the JST VHR housing family and JST SVH-21T-P1.1 contact reference. Select the complete mating housing for the required circuit count and wire size; loose mating parts and any external fan are not stated as included.
Medical Isolation, Leakage and Safety
| Isolation level |
Primary–secondary: 2 MOPP; primary–earth: 1 MOPP; secondary–earth: 1 MOPP. |
| Withstand voltage |
Input–output 4 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. |
| Insulation resistance |
100 MΩ at 500 VDC, 25°C and 70% RH, for input–output, input–FG and output–FG. |
| Leakage current |
Earth leakage <150 µA at 264 VAC; touch current <100 µA at 264 VAC. Touch current is measured from primary input to DC output. |
The safety table lists IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; and EAC TP TC004. It also lists IEC62368-1:2014; UL62368-1, 2nd Ed; CSA C22.2 No.62368-1-14, 2nd Ed; TUV BS EN/EN62368-1:2014+A11.
This medical power supply is a component, not a certification of the finished medical equipment. Suitability for BF applications requires appropriate system consideration, including patient isolation, leakage current, protective grounding and EMC.
EMC and System Integration
Conducted and radiated emissions: BS EN/EN55011 (CISPR11) Class B for the specified Class I configuration. Harmonic current: BS EN/EN61000-3-2 Class A; voltage flicker: BS EN/EN61000-3-3. Immunity framework: BS EN/EN55035 and BS EN/EN60601-1-2.
The listed immunity tests are EN61000-4-2 ESD Level 4, 15 kV air / 8 kV contact; EN61000-4-3 RF Level 3, 10 V/m at 80 MHz–2.7 GHz and Table 9, 9–28 V/m at 385 MHz–5.78 GHz; EN61000-4-4 EFT Level 3, 2 kV; EN61000-4-5 surge Level 4, 4 kV line–FG / 2 kV line–line; EN61000-4-6 conducted susceptibility Level 3, 10 V; EN61000-4-8 magnetic field Level 4, 30 A/m; EN61000-4-11 100% dip for 1 period, 30% dip for 25 periods and 100% interruption for 250 periods.
EMC tests used the unit on a 360 × 360 mm metal plate, 1 mm thick. This component is intended for installation in final equipment; reconfirm EMC compliance in the completed system.
Weight and Reliability
| Catalogue single-unit reference |
0.15 kg = 150 g per unit, from the PACKING entry. |
| Carton reference |
96 pieces / 15.4 kg / 0.89 CUFT; carton weight is not the per-unit product weight. |
| MTBF, minimum |
5031.3 K hours, Telcordia SR-332 (Bellcore); 679.5 K hours, MIL-HDBK-217F at 25°C. |
| Manufacturer warranty |
3 years, subject to applicable manufacturer terms. |
| Catalogue edition |
RPD-60-SPEC 2024-11-22; combined PDF pages 1–4. |
PACKING is a catalogue single-unit reference, not an independently weighed net or shipping mass. MTBF is a statistical estimate under the stated methods.
