Description

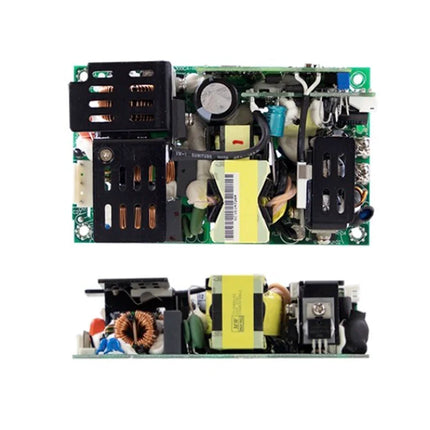

5 "X3" package Type: side fan chassis type, standard Output Current 25CFM:22.3A Output current natural air cooling: 13.9A Output power rating 25CFM:401.4W Output rated power natural air cooling: 250.2W Input voltage: 80 ~ 264VAC,113 ~ 370VDC Output voltage: 18V Size (mm):160X86X43
Product Features
1, 5 "x 3" universal use small size, built-in active PFC.
2, through the medical safety certification (2xMOPP), suitable for BF level application requirements.
3. Class I or Class II configuration.
4. Protection type: short circuit/overload/overvoltage/over temperature, very low leakage current.
5. Built-in P.G and P.F signal output and remote sensing function, no-load power consumption <0.5W(PS-ON control).
6.12V fan auxiliary power supply, 5V/1A backup output.
7. LED power start indicator.
8. PCB bare board, chassis type, overhead fan side fan various installation options, 3-year warranty.
