MEAN WELL RPT-65 series: Triple-Output Open-Frame AC/DC Power Supply - RPT-65F

Description

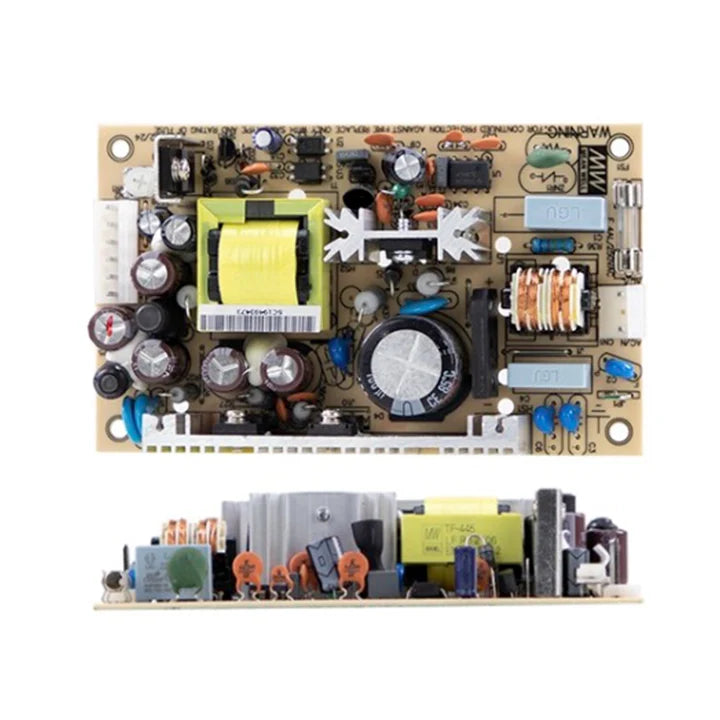

MEAN WELL RPT-65F is a triple-output PCB AC/DC power supply providing 12 V, 5 V and −12 V. Its natural-convection rated power is 66 W; CH1 supports a 7.5 A qualified peak under the duty, average-power and voltage limits below.

Product Datasheet

Download MEAN WELL RPT-65 Datasheet (PDF)

The RPT-65 section is on PDF pages 7, 8, 9. Refer to the complete mechanical drawings and notes when planning installation.

Model and Complete Unit

Complete model RPT-65F.
Series and format RPT-65 triple-output, 5 × 3 inch open-frame AC/DC power supply; PCB version without the -C suffix.
Outputs referenced to COM CH1 12 V; CH2 5 V; CH3 −12 V.
Natural-convection total rating 66 W across all three outputs, subject to derating.
Forced-air total rating The specification table lists 80 W with at least 18 CFM airflow; observe the installation-drawing conditions below.
Efficiency, typical 77%.
Factory burn-in 100% full-load burn-in test.

All three channels belong to one complete supply. Keep each channel within its specified current range and apply the combined-power and cooling limits together; summing all channel maximum currents does not create an additional total-power rating.

CH1 Output

Nominal output 12 VDC relative to COM.
Rated current 4.5 A.
Current range 0.18–5.8 A.
Minimum load 0.18 A.
Ripple and noise, maximum 150 mVp-p.
Voltage tolerance ±2.0%.
Line regulation ±1.0%.
Load regulation ±2.0%.
Voltage adjustment 11.4–12.8 V using SVR1.
Qualified peak load 7.5 A, only under the peak-operation conditions below.

CH2 Output

Nominal output 5 VDC relative to COM.
Rated current 1.2 A.
Current range 0–1.5 A.
Minimum load 0 A.
Ripple and noise, maximum 100 mVp-p.
Voltage tolerance ±5.0%.
Line regulation ±1.0%.
Load regulation ±5.0%.
Load during the CH1 peak Keep this channel at its rated load of 1.2 A.

CH3 Output

Nominal output −12 VDC relative to COM.
Rated current 0.5 A.
Current range 0–0.7 A.
Minimum load 0 A.
Ripple and noise, maximum 150 mVp-p.
Voltage tolerance ±5.0%.
Line regulation ±1.0%.
Load regulation ±5.0%.
Load during the CH1 peak Keep this channel at its rated load of 0.5 A.

Peak Operation and Measurement Conditions

CH1 peak current 7.5 A on the 12 V main output; the other two channels remain at their rated loads.
Maximum peak duty 10% within every one-second interval.
Average output power Must not exceed the 66 W model rated power.
Output-voltage condition Output voltage must remain above 90% of the nominal DC voltage during peak operation.

The qualified peak-current entry is separate from the continuous current range and forced-air total-power rating. Unless stated otherwise, parameters are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise use 20 MHz bandwidth and a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation.

Input and Timing

AC input 90–264 VAC; 47–440 Hz.
DC input 127–370 VDC.
AC current, typical 1.5 A at 115 VAC; 0.9 A at 230 VAC.
Cold-start inrush, typical 25 A at 115 VAC; 50 A at 230 VAC.
Leakage current <1 mA.
Set-up / rise time 800 ms / 20 ms at full load.
Hold-up time, typical 20 ms at full load.
Switching frequency Fixed 65 kHz.

Protection

Short circuit / overload 90–125 W output-power threshold; hiccup mode with automatic recovery after the fault is removed.
CH1 overvoltage 13.8–16.2 V; hiccup mode with automatic recovery after the fault is removed.

Cooling, Input and Environment

PCB-version working ambient −20 to +60°C, subject to the horizontal-installation derating curve.
PCB temperature derating 80% load at −20°C, rising to 100% at −10°C; full load through approximately 45°C, then decreasing to 50% at 60°C.
Optional bracket-and-cover derating With the L-bracket and cover: 80% load at −20°C, rising to 100% at −10°C; full load through 40°C, then decreasing to 50% at 55°C.
Input-voltage derating For PCB and bracket/cover versions at 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC and remaining at 100% through 264 VAC.
Illustrated airflow arrangement The mechanical drawing shows at least 18 CFM airflow from 15 cm away, with the fan positioned 63.5 mm from the illustrated edge reference.
Power values in the installation drawing The illustrated arrangement is separately labelled 60 W convection / 77 W with fan. Confirm the applicable mounting and airflow configuration with the manufacturer before using the higher specification-table ratings.
Operating humidity 20–90% RH, non-condensing.
Storage −40 to +85°C; 10–95% RH.
Temperature coefficient ±0.04%/°C over 0–50°C on CH1.
Vibration 10–500 Hz, 2 G; 10 minutes per cycle and 60 minutes along each X, Y and Z axis.
Altitude derating Above 2000 m, reduce the allowable ambient by 3.5°C per 1000 m for fanless cooling, or 5°C per 1000 m for fan cooling.

Apply the output table, thermal derating, input-voltage derating and peak restrictions together. Provide unobstructed airflow and use the complete installation drawing when specifying an external fan.

Dimensions, Installation and Optional Enclosure

Current PCB dimensions, L × W × H 127 × 76 × 29 mm; 29 mm is the maximum height shown.
PCB mounting holes Four Ø3.8 mm holes; 115.8 × 64.8 mm centre spans and 5.6 mm edge offsets. Drawing tolerance ±1 mm.
Underside clearance The drawing shows 3 mm maximum underside projection; provide suitable mounting clearance.
Optional enclosed model RPT-65F-C uses the optional L-bracket and cover; these are separate from the current PCB model.
Optional case dimensions 130 × 85 × 37 mm, case reference 946A.
Optional cover 946A-T.
Optional L-bracket 946A-D.
Bracket fastening references The optional-case drawing labels 2-M3, 4-M3 L=4 and 6-M3 L=4 at distinct locations; use the full drawing for the required holes and fixing lengths.
Adjustment and fuse SVR1 and fuse position FS1 are marked on the PCB drawing.

The block diagram identifies FG; provide suitable protective grounding and clearances in the completed equipment. Cover, bracket, loose fixings and an external fan are not stated as included with this unsuffixed PCB model.

Connections and Mating Parts

AC input CN1 Molex 5273-03 or equivalent: pin 1 AC/L; pin 2 no pin; pin 3 AC/N.
Triple output CN2 Molex 5273-06 or equivalent: pins 1–2 V1 (CH1); pins 3–4 GND/COM; pin 5 V2 (CH2); pin 6 V3 (CH3).
This model at CN2 Pins 1–2: 12 V; pins 3–4: COM; pin 5: 5 V; pin 6: −12 V.
Mating housing reference Molex 5195 family or equivalent.
Mating contact reference Molex 5194 family or equivalent.

Select the complete mating housing and contacts for the circuit count and wire assembly. Follow the drawn connector orientation and the output polarities. Loose mating parts and cable assemblies are not stated as included.

Safety and Electromagnetic Compatibility

Safety approvals UL62368-1, TUV BS EN/EN62368-1 and EAC TP TC004 approved; the cover also identifies IEC62368-1 CB certification.
Withstand voltage Input/output 3 kVAC; input/FG 2 kVAC; output/FG 0.5 kVAC.
Insulation resistance Input/output, input/FG and output/FG: 100 MΩ at 500 VDC, 25°C and 70% RH.
Emissions BS EN/EN55032 (CISPR32) Class B; BS EN/EN61000-3-2 and -3; EAC TP TC020.
Immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC020.

EMC testing uses a 360 × 360 mm metal plate, 1 mm thick. This supply is an installation component; reconfirm safety and EMC compliance in the final equipment with its actual mounting and wiring.

Weight, Reliability and Catalogue

Current-model single-unit reference weight 240 g from the explicit PCB PACKING value of 0.24 kg; a catalogue reference, not a measured shipping weight.
PCB packing 63 pieces / 16 kg / 1.28 CUFT.
Optional case-version reference 470 g per unit with the optional case; 32 pieces / 16 kg / 0.73 CUFT. This does not replace the 240 g PCB-model reference.
MTBF, minimum estimates 2520.5 thousand hours, Telcordia SR-332 (Bellcore); 490.1 thousand hours, MIL-HDBK-217F at 25°C.
Manufacturer warranty 2-year manufacturer warranty, subject to applicable terms.
Catalogue revision RPT-65-SPEC, 2024-11-22; combined PDF pages 7–9.
