Description

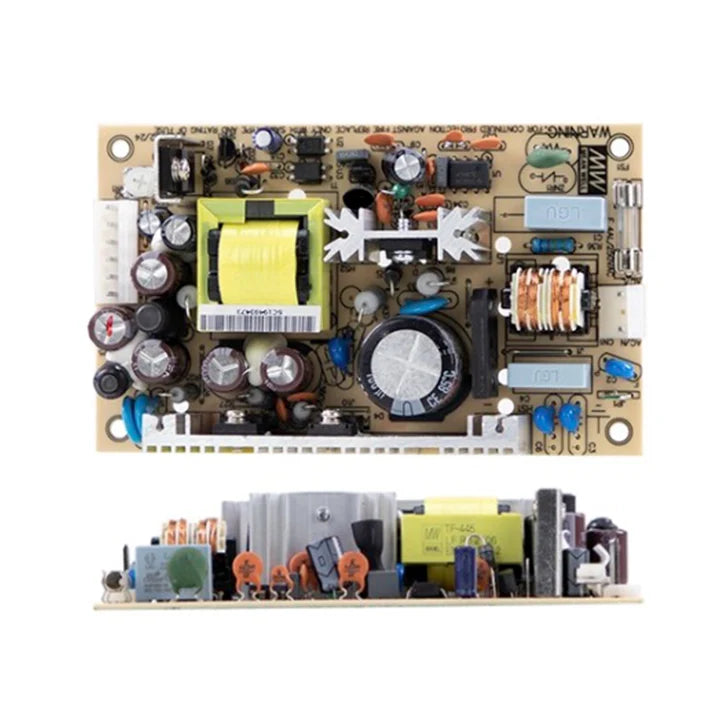

5 "X3" 3 group output Output channel: CH1 Output voltage: 24V Rated output current: 2.25A Output current range: 0.09 ~ 2.9A Maximum load: 3.75A Rated power: 66W Output power (maximum): natural cooling at rated output power; forced heat dissipation at 80W, fan air volume greater than 18CFM Input voltage: 90 ~ 264VAC or 127 ~ 370VDC Size (mm):127X76X29
Product Features
1. International universal full range input: 90 ~ 264VAC.
2. Built-in active PFC(PPT-125).
3. Optional L-shaped bracket and casing (RPT-65 series).
4. Leakage current <1mA(RPT-65 series).
5. PWM control adjustment (PPT-125).
6. Protection type: short circuit/overload/over temperature (except RPT series)/over voltage (except PT series).
7, 2 years warranty.
8, 3 years warranty (PPT-125).
