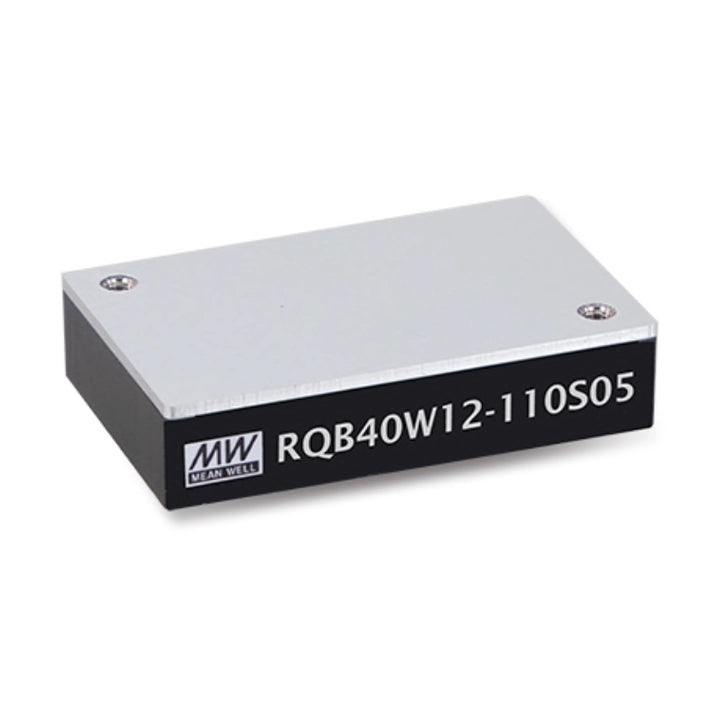

Description
Rated power: 40W Input Voltage (Range): Nominal 24V,36V,48V,72V,96V,110V(14~160V) Input current no-load: 15mA, full load: 420mA Single group output Output voltage: 5V Output current: 8A Efficiency (TYP.):88% Capacitive load (maximum):24000μF Size (mm):57.9X36.8X12.7
Click to download Airtac product catalog
Product Features
1. The 1/4 brick (2.28 "x1.45" x0.5 ") conforms to the industrial standard pin, through the EN50155 railway standard.
2.12:1(14 ~ 160Vdc) ultra-wide input range, operating temperature range -40 ~ +90 ℃, no minimum load, closed type.
3. Protection: short circuit (continuous)/overload/over temperature/over voltage/input under voltage, 3KVDC or 2KVAC input/output isolation.
4. Remote control on/off and remote sensing, fine-tuning output (± 10%),3-year warranty.
