Description

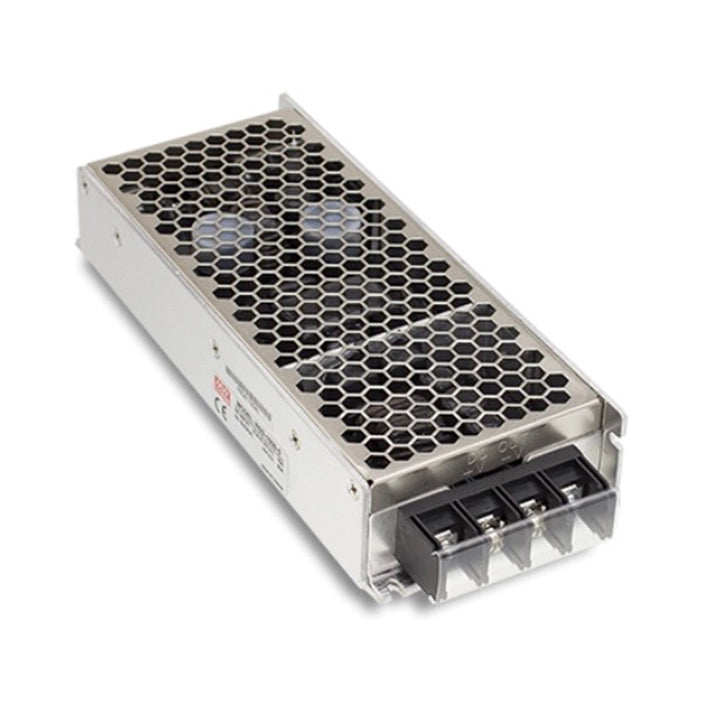

Output voltage: 12V Output current: 0 ~ 12.5A Output power rating: 150W Continuous input voltage range: 16.8~31.2VDC Input voltage range of 1 second: 14.4~33.6VDC Size (mm):189X77X36
Product Features
1. Railway & ITE double safety certification.
2, 2:1 wide range input (RSD-100 ~ 500);4:1 wide range input (RSD-30/60).
3, 4KVdc I/O to strengthen the isolation.
4. Protection type: short circuit/overload/overvoltage/overtemperature/DC input reverse polarity protection.
5, no fan design, natural air cooling,-40 ~ +70 ℃ wide temperature work (RSD-500:-40 ~ +80 ℃).
6. Built-in constant current limiting circuit, small size, 1U low height (25~41mm).
7, half glue, with basic moisture-proof, dust-proof, 5G shock-resistant, using 105 ℃ long-life electrolytic capacitor.
8. LED power indicator, 3 years warranty.
