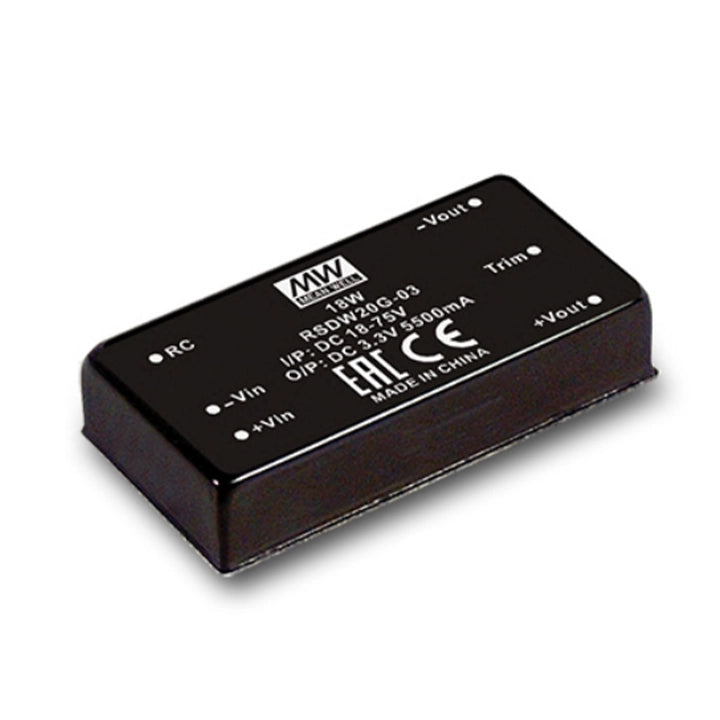

MEAN WELL RSDW20 Series: DC-DC Converter - RSDW20G-03

Description

Series: Single group output Rated power: 20W Input voltage (range):Normal 48V(18~75V) Input current no-load: 25mA, full load: 430mA Output voltage: 3.3V Output current: 5500mA Efficiency (TYP.):88% Capacitive load (maximum):5500μF Size (mm):50.8X25.4X10.2

Click to download Airtac product catalog

Product Features

Conform to EN50155 railway standards. DIP2 "x1" package, industry standard pins.

2.4:1 wide input range, working temperature range -40 ~ +85 ℃, no minimum load, closed type.

3. Protection: short circuit (continuous)/overload/overvoltage/input undervoltage, 1.5KVDC,3KVDC input/output isolation, remote on/off, 3-year warranty.

MEAN WELL RSDW20 Series: DC-DC Converter - RSDW20G-03

Product form

Series: Single group output Rated power: 20W Input voltage (range):Normal 48V(18~75V) Input current no-load: 25mA, full load: 430mA Output voltage:... Read more

$74.57 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Series: Single group output Rated power: 20W Input voltage (range):Normal 48V(18~75V) Input current no-load: 25mA, full load: 430mA Output voltage: 3.3V Output current: 5500mA Efficiency (TYP.):88% Capacitive load (maximum):5500μF Size (mm):50.8X25.4X10.2

    Click to download Airtac product catalog

    Product Features

    Conform to EN50155 railway standards. DIP2 "x1" package, industry standard pins.

    2.4:1 wide input range, working temperature range -40 ~ +85 ℃, no minimum load, closed type.

    3. Protection: short circuit (continuous)/overload/overvoltage/input undervoltage, 1.5KVDC,3KVDC input/output isolation, remote on/off, 3-year warranty.
