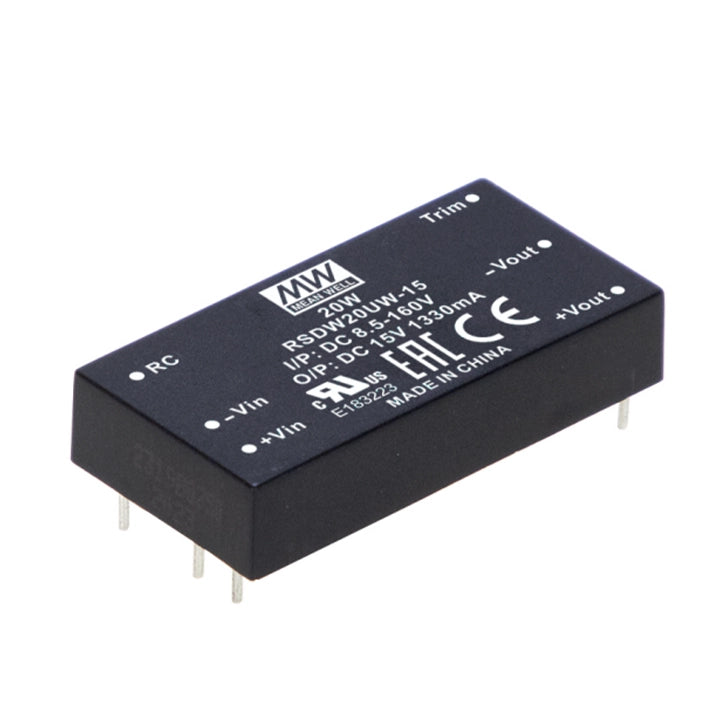

MEAN WELL RSDW20UW Series: DC-DC Converter - RSDW20UW-15

Description

Series: Single group output Rated power: 20W Input Voltage (Range):Normal 12V,24V,48V,72V,96V,110V(8.5~160V) Input current no-load: 8mA, full load: 312mA Output voltage: 15V Output current: 1330mA Efficiency (TYP.):89% Capacitive load (maximum):2200 μF Size (mm):50.8X25.4X10.2

Click to download Airtac product catalog

Product Features

Conform to EN50155 railway standards. DIP2 "x1" package, industry standard pins.

2.18:1(8.5 ~ 160Vdc) ultra-wide input range, operating temperature range -40 ~ +95 ℃, no minimum load, closed type.

3. Protection: short circuit (continuous)/overload/overvoltage/input undervoltage, 3KVAC input/output isolation, working altitude up to 5000 meters (Note 5), remote on/off, 3-year warranty.

MEAN WELL RSDW20UW Series: DC-DC Converter - RSDW20UW-15

Product form

Series: Single group output Rated power: 20W Input Voltage (Range):Normal 12V,24V,48V,72V,96V,110V(8.5~160V) Input current no-load: 8mA, full load: 312mA Output voltage:... Read more

$130.71 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Series: Single group output Rated power: 20W Input Voltage (Range):Normal 12V,24V,48V,72V,96V,110V(8.5~160V) Input current no-load: 8mA, full load: 312mA Output voltage: 15V Output current: 1330mA Efficiency (TYP.):89% Capacitive load (maximum):2200 μF Size (mm):50.8X25.4X10.2

    Click to download Airtac product catalog

    Product Features

    Conform to EN50155 railway standards. DIP2 "x1" package, industry standard pins.

    2.18:1(8.5 ~ 160Vdc) ultra-wide input range, operating temperature range -40 ~ +95 ℃, no minimum load, closed type.

    3. Protection: short circuit (continuous)/overload/overvoltage/input undervoltage, 3KVAC input/output isolation, working altitude up to 5000 meters (Note 5), remote on/off, 3-year warranty.
